Description

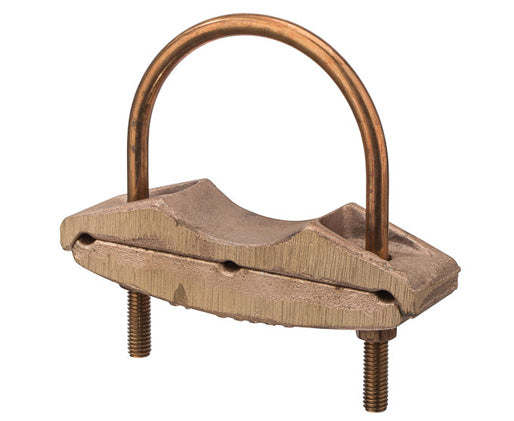

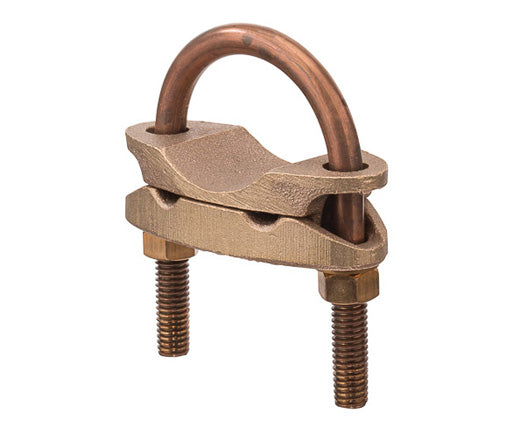

Heavy Duty U Bolt Grounding Clamp 2 & 3 Cond.
Heavy Duty for Parallel
Features
- Made of high-copper-content alloy for grounding to 1/2” - 1” ground rods and ground pipes from 1/4” - 3 1/2” in parallel or 90° position.
- Suitable for direct burial in earth and concrete.
- Nuts and lock washers are silicon bronze.
- 200 Series for use with two wires and 300 Series for use with three wires
Specifications
- UL467 Listed, Grounding & Bonding.
| Part# | Pipe Size (IPS) (in.) | Cable Range (in.) |

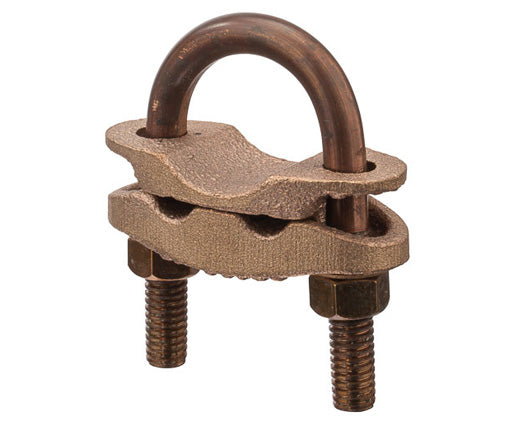

| NPNB-UC-214 | 1 | 2/0-4 |

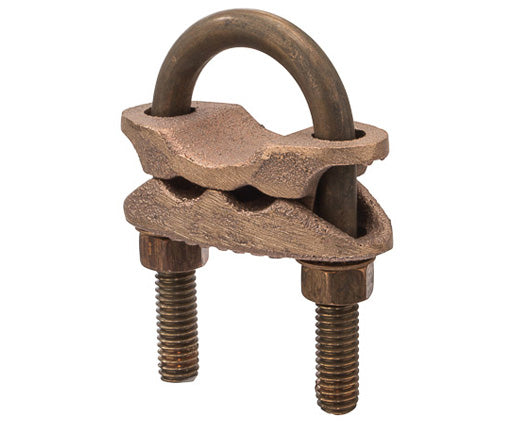

| NPNB-UC-215 | 1 | 250 - 2/0 |

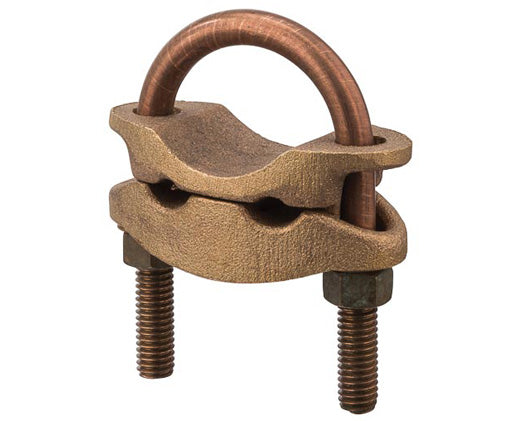

| NPNB-UC-221 | 1 1/4 | 250 - 2/0 |
| NPNB-UC-226 | 1 1/2 | 2/0-4 |
| NPNB-UC-227 | 1 1/2 | 250 - 2/0 |

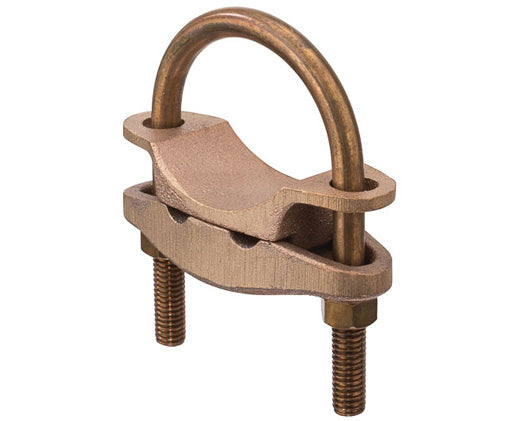

| NPNB-UC-232 | 2 | 2/0-4 |

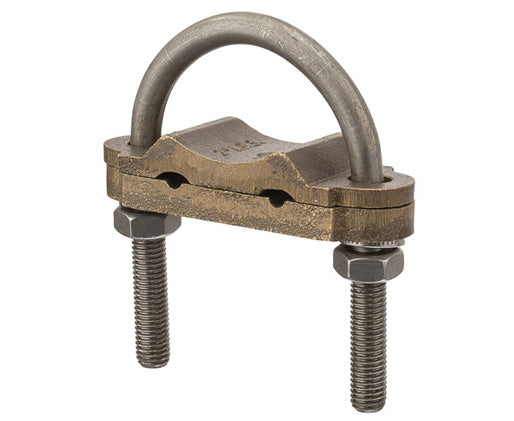

| NPNB-UC-233 | 2 | 250 - 2/0 |
| NPNB-UC-237 | 2 1/2 | 2/0-4 |
| NPNB-UC-238 | 2 1/2 | 250 - 2/0 |

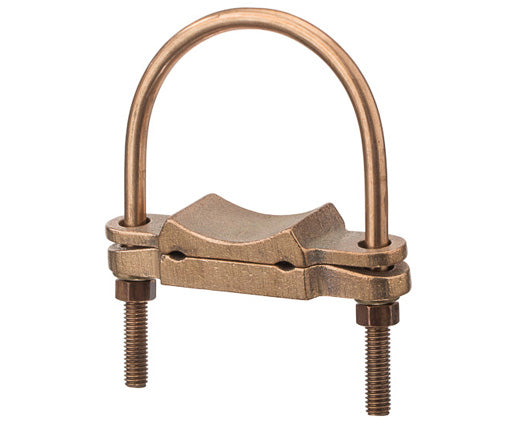

| NPNB-UC-242 | 3 | 2/0-4 |

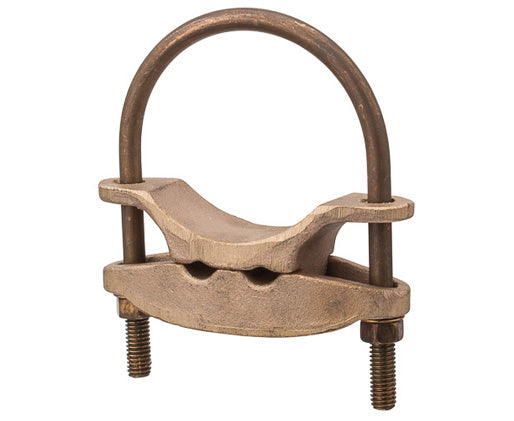

| NPNB-UC-243 | 3 | 250 - 2/0 |

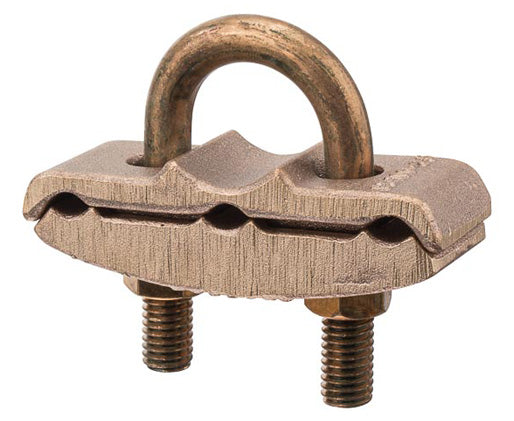

| NPNB-UC-315 | 1 | 250 - 2/0 |
| NPNB-UC-320 | 1 1/4 | 2/0-4 |
| NPNB-UC-326 | 1 1/2 | 2/0-4 |
| NPNB-UC-327 | 1 1/2 | 250 - 2/0 |
| NPNB-UC-332 | 2 | 2/0-4 |
| NPNB-UC-338 | 2 1/2 | 250 - 2/0 |
| NPNB-UC-342 | 3 |
2/0-4 |
| NPNB-UC-343 | 3 | 250 - 2/0 |
What's in the box?
What's in the box?
-
Qty 1 - Heavy Duty U Bolt Ground Clamp 2 or 3 Cond.
