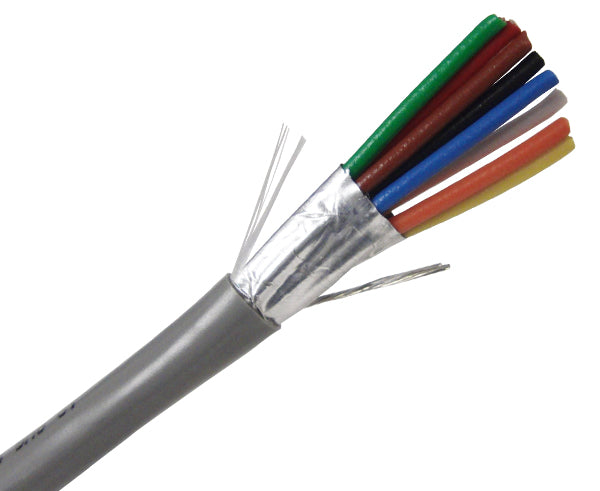

Security Alarm Cable - Riser (CMR) - 22/8, CL3R, Stranded (7 Strand), Shielded, 1000ft, Gray
22/8 Riser Security Alarm Cable (7 Strand) Shielded 1000'
This 22/8 Riser Security Alarm Cable has four 7 gauge stranded copper conductors. It is designed for security systems but can also be used for intercom systems, power limited controls and sound/audio systems. The cables are made from 7 strand bare copper cable. It is shielded with a CL3R rated gray colored jacket and is made in the USA. This 22/8 riser security cable is supplied in increments of 1,000 ft.
Explore our portfolio of high quality security cables
Our Bulk Security Alarm Cables, also known as alarm wire, has been designed to meet the installation requirements for alarm systems. Our stock has a wide variety of high quality alarm cables to meet all your needs. Our bulk security cables come with both riser and plenum rated jacket. Be sure to check the building code requirements before purchasing alarm cable. The alarm cable also include print legends to allow for quick identification of each cable's application. Time is precious and the convenience of the cables at installation makes our security alarm cables the choice for multiple applications.
Where to use Plenum Security Alarm Cable
A broad range of applications exist for bulk plenum security alarm cabling. It is widely used with security systems, intercom systems, sound/audio systems, and power-limited controls in commercial settings such as schools, universities, hospitals, airports, government buildings, train and transportation centers, stadiums, and arenas. Since this security cable has multiple conductors under one jacket, the preparation, set up, and termination time is shorter.
- 22 AWG 8 conductors
- 7 stranded bare copper conductors
- PVC insulation
- AL foil shielded
- Sequential footage marking
- CL3R rated PVC jacket with rip cord
- ETL listed
- RoHS compliant
- NEC articles
- 22-16 AWG: FPLR/760, CMR/800, CL3R, CL2R/725
- 14-12 AWG: FPLR, CL3R
Residential or commercial applications
- Security systems
- Intercom systems
- Sound/audio systems
- Power-limited controls
|Inner Conductor||Stranded Bare Copper|
|Conductor Size||22 AWG|
|Outer Jacket Diameter||.38mm|
|Jacket||Low Smoke PVC|
|Number of Strands||7|
|Inner Conductor Diameter||1.2mm|
|Center Resistance||21.20 (Ω/km)|
|Standards||ETL | RoHS | CMR | CL3R|
|Applications||Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls|
|Jacket Printing||22 AWG 8C (ETL) 725/CL3R 800/CMR (VID:###) XXXX FT|
|Important Notes||The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.|
How to Select CM, CMR and CMP Cable?
CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.
CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.
CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.
CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.
A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.
What's in the Box
What's in the Box
- Security Alarm Cable - Riser (CMR) - 22/8 AWG, CL3R, Stranded (7 Strand), Shielded, Gray
- 1000 Ft
