LED, LCD and Plasma Flat TV Mount Bracket 23in to 37in Lockable, Tilt, Slim
Note: Supported screen size is provided as a reference only. Please check bracket dimensions in the specifications tab below, and make sure overall bracket size does not exceed TV.
Description

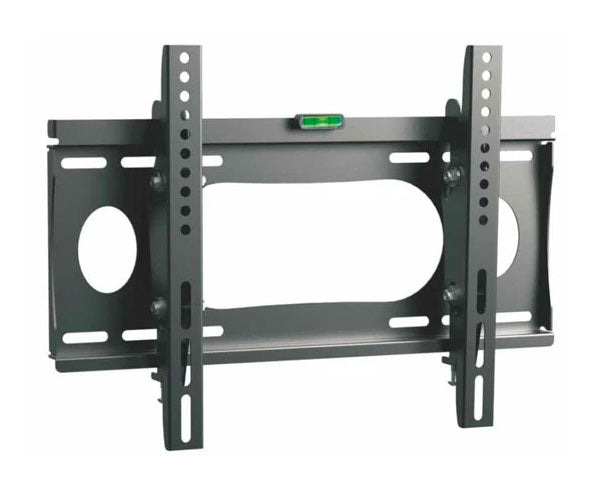

LED, LCD & Plasma Flat TV Mount Bracket 23" to 37" Lockable Tilt Slim
This tilt angle adjustable wall bracket is lockable and ideal for hotel rooms or public place installations. The mount supports most 23" to 37" mid size flat TVs up to 77 lb. The back of the display sits 2.36 inches (60mm) off the wall when set straight up. Hardware is included for wood studs or concrete wall mounting.
Features
Features
- For 23" to 37" Screen
- Tilt Angle: 5º Up ~ +15º Down
- Max Load Capacity: 77lbs. (35kg)
- Universal Mounting Pattern
- Max. Hole Pattern 17.5" x 11.5" (450 x 300mm) VESA Compliant
- TV to Wall: 2.36" (60mm)
- Design and Construction: Solid Toughened Steel Construction
- Durable Scratch Resistant Finish in Black
- Mounting Hardware Included
- PadLock Not Included
Note: Supported screen size is provided as a reference only. Please check bracket dimensions above, and make sure the overall bracket size does not exceed TV set width.
Specifications
Specifications
Additional Information
Installations Instructions
To learn more about our home theater cables, mounts and more here is a link to a page containing more information on our premium Home Theater Cables, Mounts, and More.
To learn more about our LCD Mounts here is a link to a page containing more information on our premium LCD Mounts.
What's in the box?
What's in the box?
- Qty 1 - Flat TV Mount Bracket
Hardware Included
- Qty 4 - M5 x 16 Screws
- Qty 4 - M6 x 16 Screws
- Qty 4 - M8 x 16 Screws
- Qty 4 - M5 x 35 Screws
- Qty 4 - M6 x 35 Screws
- Qty 4 - M8 x 35 Screws
- Qty 6 - Concrete Anchors
- Qty 6 - M8 x 50 Bolts
- Qty 4 - M5 / M6 / M8 Washers
- Qty 6 - Washers
- Qty 4 - Spacers
