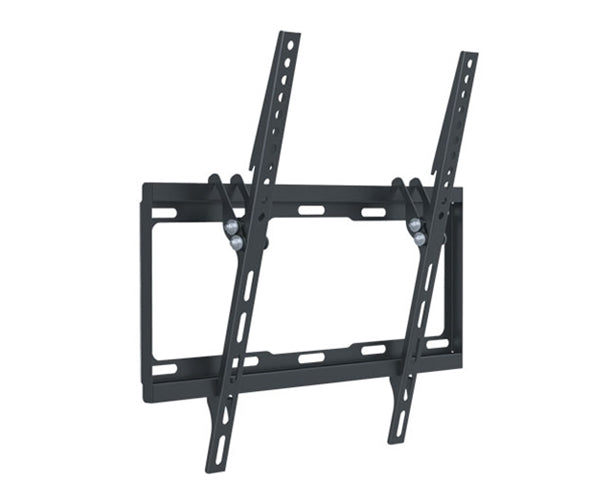

Wall Mount with Tilt, fits 32" to 55" and 37" to 70" TVs
by Primus Cable
$24.95
SKU: NPNB-VMT55-04302
Description
Wall Mount with Tilt, fits 32" to 55" and 37" to 70" TVs
This slim Tilting TV mount can hold TVs from 32" to 55" and 37" to 70" in size and up to 77lbs.
Features
Features
- Simple to install-includes installation instructions
- Includes bubble level
- Size: Fits most 32" to 55" flat panel TVs (81 to 140cm) / 37” to 70” flat panel TVs (94 cm - 178 cm)
- Motion: Tilting
- Supports up to: 77 lbs. (35kg)
- Low Profile: 0.98" (25mm)
- VESA Compliant: 200x200, 400x200, 300x300, 400x400, 600x400
- Includes mounting hardware
- Warranty: Limited 10 year
Specifications
Specifications
| TV Size | 32" to 55" (81 cm to 140 cm) | 37” to 70” (94 cm to 178 cm) |
| Weight Capacity | 77 lbs (35kg) | 77 lbs (35kg) |
| Motion | Tilted |
Tilted |
| VESA (Mounting Pattern |
200 x 200, 400 x 200 300 x 300, 400 x 400 |
200 x 200, 400 x 200 300 x 300, 400 x 400 600 x 400 |
| Back Plate Dimensions | 1” x 18.8” x 8.1” | 1” x 26.7” x 8.1” |
| (25 mm x 479 mm x 206 mm) | (25 mm x 679 mm x 206 mm) | |
| Tilt Angle | 0° to -14° | 0° to -14° |
| Swivel | N/A | N/A |
| Rotation | N/A | N/A |
| Profile to Wall | 0.98" (25mm) | 0.98" (25mm) |
| TV Mounting Hardware Included | Yes | Yes |
| Integrated Cable Management | No | No |
| Integrated Bubble Level | Yes | Yes |
| Material | Steel, Plastic | Steel, Plastic |
| Surface Finish | Powder Coating | Powder Coating |
| Color | Black | Black |
| Installation | Solid Wall | Solid Wall |
| Warranty | Limited 10 Year | Limited 10 Year |
Additional Information
Installation Instructions
To learn more about our home theater cables, mounts and more here is a link to a page containing more information on our premium Home Theater Cables, Mounts and More.
To learn more about our LCD Mounts here is a link to a page containing more information on our premium LCD Mounts.
What's in the box?
What's in the box?
- Qty 1 - Flat TV Mount Bracket
Hardware Included
- Qty 1 - Wall Plate
- Qty 2 - Adapter Bracket
- Qty 1 - Bubble Level
- Qty 4 - M6x30
- Qty 4 - M8x30
- Qty 4 - D8 Washer
- Qty 4 - Big Spacer
- Qty 5 - ST6.3x55
- Qty 5 - Concrete Anchor
- Qty 5 - D6 Washer
