CAT3 UTP PVC Bulk Cable

CAT3 Bulk Cable, UTP PVC Solid 24AWG, 25-Pair, 250ft, 500ft, 1000ft, Gray

by Primus Cable
$587.95
SKU: C3U-7835GY-50C
Length
Various lead times may apply to this product. Please contact us for more details.

To avoid excessive shipping charges on 10 or more of this product please contact us.

Call 951-824-1571 or e-mail  support@primuscable.com.

NOTE: 250 ft & 500 ft lengths are considered to be custom length cuts and can not be returned and/or refunded.

Minimum Order Quantities May Apply

C5U-368GY-50C is available!

Description

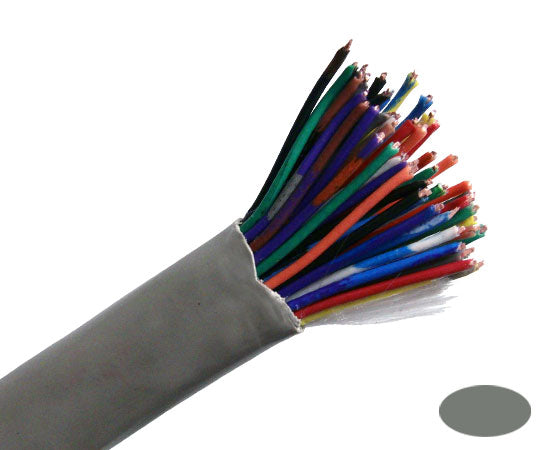

CAT3 Bulk Cable, UTP PVC Solid 24AWG, 25-Pair

Our CAT3 300 Volts Unshielded 25 pair CMR communications cable is perfect voice capabilities. Our Cat3 300Volts CMR Bulk Cable is ideal for telephone installation. Whether you are wiring your home, office or entire campus, our company has the solution thats right for you. This cable is designed for indoor type rated riser CMR installations.

Our CAT3 300 Volt riser CMR unshielded solid cable has 25 pairs of 24AWG solid bare copper conductors with a riser CMR rated PVC Jacket. Our Cat3 CMR solid unshielded cable is quality manufactured to meet and/or exceed product certifications and standards UL type CMR, C( UL)CMG, Passes UL 1666 Flame test, RoHS Compliant, TIA 568-B.2 Category 3 specifications. This cable is sold and shipped in 1000ft increments on a wooden Spool.

CAT3 Cable Options:

Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.

CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.

CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.

CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.

Features

Features

  • High-Performance Voice Communications Cable
  • Designed for Indoor Installations, (CMR) Riser
  • 25-Pair - Easily Identified Color-Striped Pairs
  • 24AWG Solid Bare Copper Conductors
  • Insulation: Semi-rigid PVC
  • Jacket: Flame Retardent PVC
  • Passes UL 1666 Flame Test
  • RoHS Compliant
  • Supplied in Wooden Spools

Applications

  • Voice
  • 10BaseT
  • 100BaseVG
  • 4Mbps Token Ring
  • 10Mbps Ethernet
  • 55Mps ATM
  • ISDN

Specifications

Physical Construction



Electrical Characteristics
  Conductor Material:   Solid Bare Copper     Operating Temperature   -10ºC to +75ºC
  Conductor Size   24 AWG     Voltage Rating   300 Volts
  Number of Conductors   50
  Number of Pairs   25
  Jacket Material:   Gray PVC
  Jacket Diameter:   0.343    inch
  Jacket Color:   Gray
  Insulation   nominal wall SR PVC

Color Pair Guide
Pair # - TIP
1 - White - Blue   18 - Yellow - Green   35 ---
2 - White - Orange   19 - Yellow - Brown   36 ---
3 - White - Green   20 - Yellow - Slate   37 ---
4 - White - Brown   21 - Violet - Blue   38 ---
5 - White - Slate   22 - Violet - Orange   39 ---
6 - Red - Blue   23 - Violet - Green   40 ---
7 - Red - Orange   24 - Violet - Brown   41 ---
8 - Red - Green   25 - Violet - Slate   42 ---
9 - Red - Brown   26 ---   43 ---
10 - Red - Slate   27 ---   44 ---
11 - Black - Blue   28 ---   45 ---
12 - Black - Orange   29 ---   46 ---
13 - Black - Green   30 ---   47 ---
14 - Black - Brown   31 ---   48 ---
15 - Black - Slate   32 ---   49 ---
16 - Yellow - Blue   33 ---   50 ---
17 - Yellow - Orange   34 ---   ---

Additional Information
  Standards   UL | CUL | RoHS | CMP
  Applications   10BaseT and 100BaseVG | AnyLAN | 4Mbps Token Ring | 10Mbps Ethernet and 55Mps ATM
  Important Notes   The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.

Additional Information

Additional Information

To learn more about our Category 3 Bulk Cable here is a link to a page containing more information on our premium Category 3 Bulk Cable.

What's in the box?

What's in the box?

  • Qty 1 - CAT3 300 Volts CMR Unshielded Solid 25-Pair Cable supplied on a 1000ft spool
