CAT3 UTP Plenum Cable, Gray

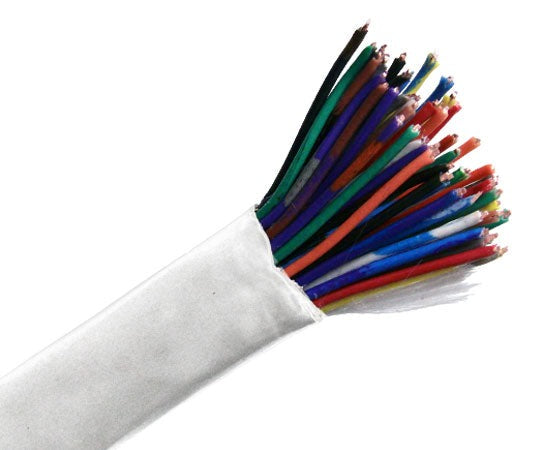

CAT3 Bulk Cable, Plenum CMP Solid UTP 25Pair 24AWG, White, per foot

by Primus Cable
Call for Pricing
SKU: C3UP-2898WH-50C
Various lead times may apply to this product. Please contact us for more details.

This product is sold by the foot.

To avoid excessive shipping charges on this product please contact us.

Call 951-824-1571 or e-mail  support@primuscable.com.

Minimum Order Quantities May Apply

Description

CAT3 300Volt Plenum (CMP) Unshielded Solid Copper 25-Pair Cable

Our CAT3 300Volt Unshielded 25 pair type CMP communications cable is perfect voice capabilities. Our CAT3 300 Volt CMP Bulk Cable is ideal for telephone installation. Whether you are wiring your home, office or entire campus, we have the solution thats right for you. This cable is designed for indoor type fire rated plenum CMP installations.

Our CAT3 300 volt plenum CMP unshielded solid cable has 25 pairs of 24AWG solid bare copper conductors with a Plenum CMP PVC Jacket. Our CAT3 CMP solid unshielded cable is quality manufactured to meet and exceed product certifications and standards UL and C(UL) Listed Type CMP, California State Fire Marshal Approved, EU RoHS Directive Specifications.

CAT3 Cable Options:

Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.

CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.

CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.

CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.

Features

Features

  • High-Performance Voice Communications Cable
  • Designed for Indoor Installations, (CMP)
  • 25-Pair - Easily Identified Color-Striped Pairs
  • 24AWG Solid Bare Copper Conductors
  • Passes UL 1666 Flame Test
  • RoHS Compliant
  • Supplied in Wooden Spools

Applications

  • Voice
  • 10BaseT and 100BaseVG
  • AnyLAN
  • 4Mbps Token Ring
  • 10Mbps Ethernet and 55Mps ATM
  • ISDN

Specifications

Specifications

    Physical Construction



    Electrical Characteristics



      Conductor Material   Solid Bare Copper     Operating Temperature   -10ºC to +75ºC
      Conductor Size   24 AWG     Voltage Rating   300 Volts
      Number of Conductors   50     Rating Standard   CMP
      Number of Pairs   25     Capacitance    20 pF/ft
      Jacket Material   CMP PVC     DC Resistance
    		    27 Ω/Kft    nom.    @20ºC
      Jacket Diameter   0.510 inch     1MHz - 16MHz Impedance    100Ω ± 15%
      Jacket Color   White
      Insulation   Plenum PVC



    Color Pair Guide
    Pair # - TIP
    1 - White - Blue   18 - Yellow - Green   35 ---
    2 - White - Orange   19 - Yellow - Brown   36 ---
    3 - White - Green   20 - Yellow - Slate   37 ---
    4 - White - Brown   21 - Violet - Blue   38 ---
    5 - White - Slate   22 - Violet - Orange   39 ---
    6 - Red - Blue   23 - Violet - Green   40 ---
    7 - Red - Orange   24 - Violet - Brown   41 ---
    8 - Red - Green   25 - Violet - Slate   42 ---
    9 - Red - Brown   26 ---   43 ---
    10 - Red - Slate
    		   27 ---   44 ---
    11 - Black - Blue   28 ---   45 ---
    12 - Black - Orange   29 ---   46 ---
    13 - Black - Green   30 ---   47 ---
    14 - Black - Brown   31 ---   48 ---
    15 - Black - Slate   32 ---   49 ---
    16 - Yellow - Blue   33 ---   50 ---
    17 - Yellow - Orange   34 ---   ---


    Additional Information

      Standards   UL | CUL | RoHS | CMP
      Applications   10BaseT and 100BaseVG | AnyLAN | 4Mbps Token Ring | 10Mbps Ethernet and 55Mps ATM
      Important Notes   The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.

    Additional Information

    Additional Information

    To learn more about our Category 3 Bulk Cable here is a link to a page containing more information on our premium Category 3 Bulk Cable.

    What’s In The Box

    What’s In The Box

    • Qty 1 - CAT3 300 Volt Plenum (CMP) Unshielded Solid Copper 25-Pair Cable
