Grounding Clamps Heavy Duty with 360 degree Adapters for Rigid Conduit
These products are all Made to Order
Which means they are non-cancelable and non-refundable
Description
Grounding Clamps Heavy Duty & with 360° Adapters for Rigid Conduit
A full Grounding line covering all applications, featuring heavy duty, direct burial clamps, and range taking rod clamps. Primus Cables’ Grounding line also includes clamps with adapters, clamps for water pipe, rigid conduit or rebar, intersystem bonding connectors, and clamps for parallel 90, 2, and 3 conductor copper cable. With a lay-in feature for the ultimate flexibility, Primus Cables’ GLC-DB Direct Burial ground clamps are a perfect fit for continuous loop grounding of solar panels.
Features
- Heavy duty bronze adapters have serrations that match the serrations on the ground clamp, assuring a positive lock.
- All adapters fit all clamps for the ultimate flexibility.
- Assembled with zinc-plated steel hardware.
- Used to connect grounding conductor to rigid conduit on a water pipe.
Specifications
| Part# | Certification | Pipe Size (IPS) (in.) | Conduit Hub Size (in.) | Ground Wire Range (in.) |

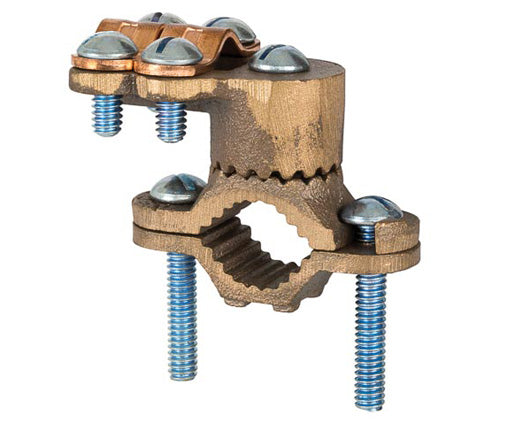

| NPNB-G-3 | UL | 1 1/2 - 1 | ---- |
8-4/0 STR |

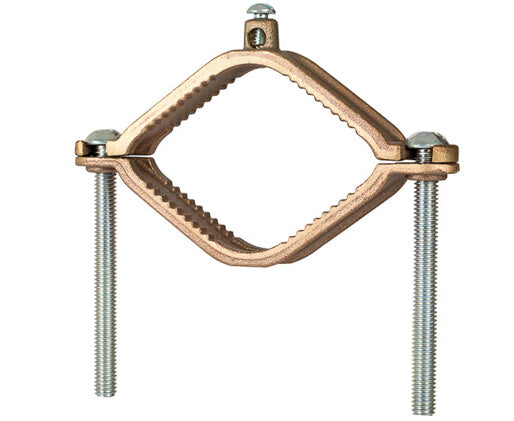

| NPNB-G-4 | UL | 1 1/4 - 2 | ---- |
8-4/0 STR |

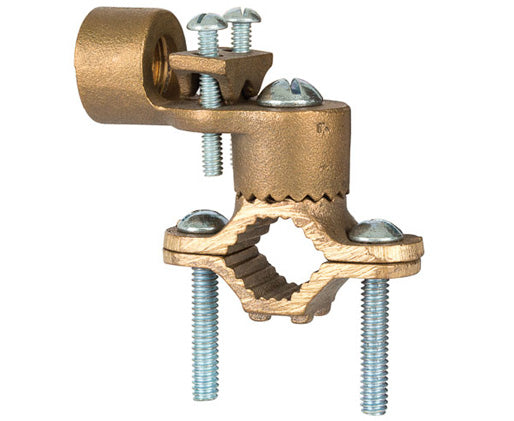

| NPNB-G-5 | cULus | 1/2 - 1 | 1/2 |
10 SOL – 2/0 STR |

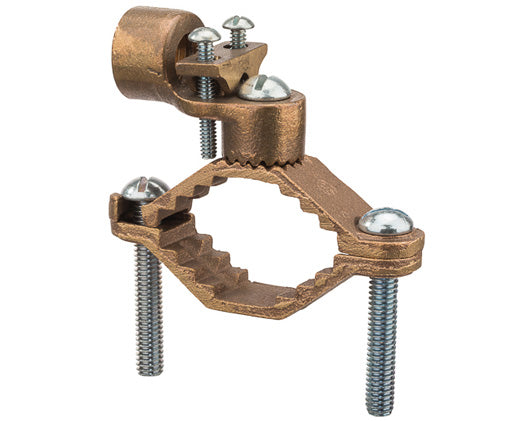

| NPNB-G-6 | cULus | 1 1/4 - 2 | 1/2 |
10 SOL – 2/0 STR |

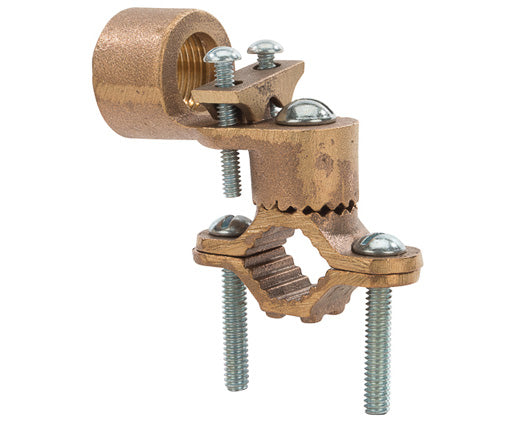

| NPNB-G-7 | UL | 1/2 - 1 | 3/4 |
10 SOL – 3/0 STR |

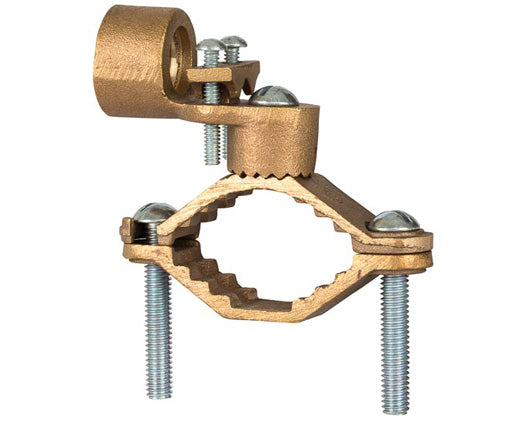

| NPNB-G-8 | UL | 1 1/4 - 2 | 3/4 |
10 SOL – 3/0 STR |

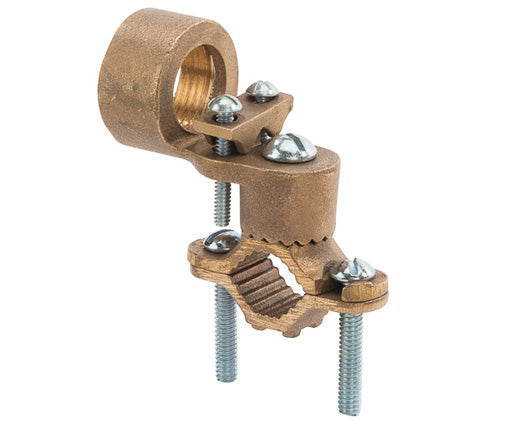

| NPNB- G-9 | cULus | 1/2 - 1 | 1 |
10 SOL – 3/0 STR |

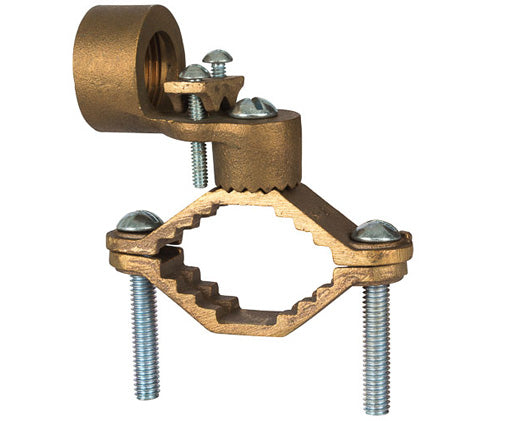

| NPNB-G-10 | UL | 1 1/4 - 2 | 1 |
10 SOL – 3/0 STR |

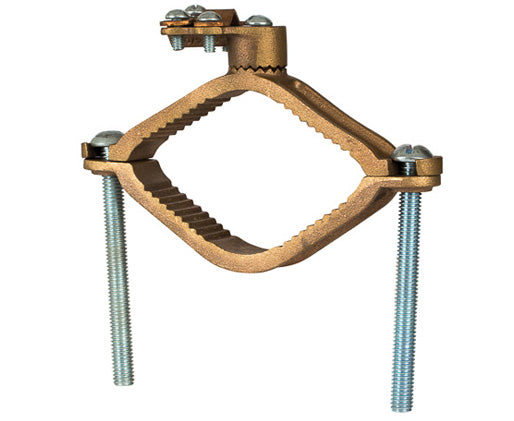

| NPNB-G-15 | UL | 2 1/2 - 4 | - | 8-4/0 STR |

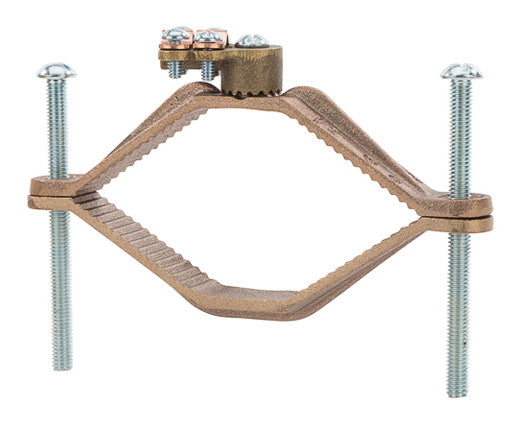

| NPNB-G-16 | cULus | 4 1/2 - 6 | - | 8-4/0 STR |

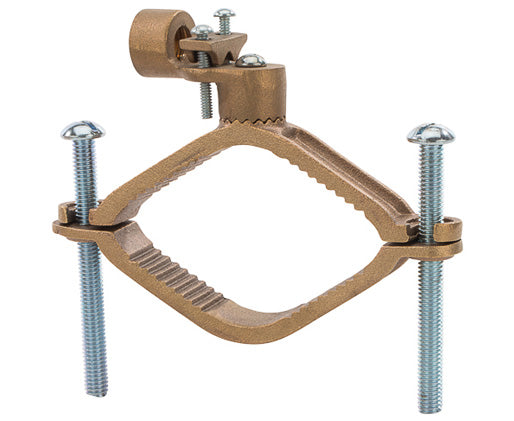

| NPNB-G-18 | UL | 2 1/2 - 4 | 1/2 |
10 SOL – 2/0 STR |

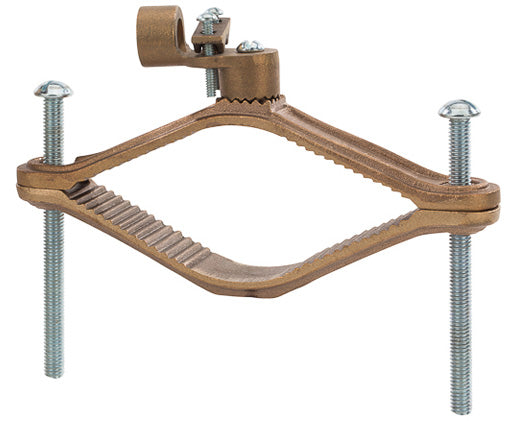

| NPNB-G-19 | cULus | 4 1/2 - 6 | 1/2 |
10 SOL – 2/0 STR |

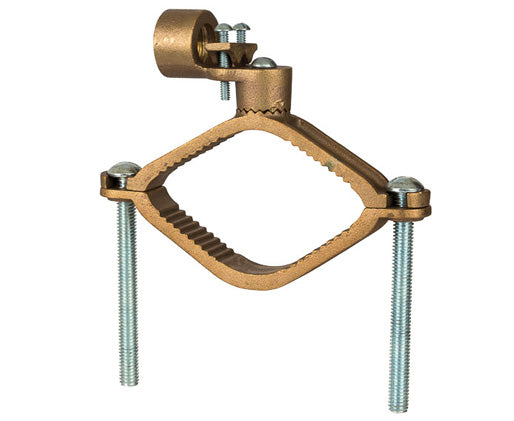

| NPNB-G-21 | cULus | 2 1/2 - 4 | 3/4 |
10 SOL – 3/0 STR |

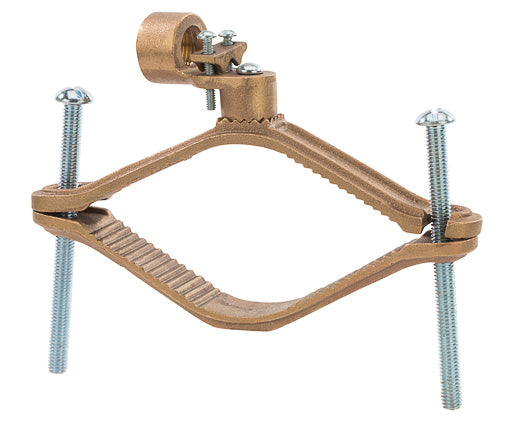

| NPNB-G-22 | UL | 4 1/2 - 6 | 3/4 |
10 SOL – 3/0 STR |
| NPNB-G-24 | cULus | 2 1/2 - 4 | 1 |
10 SOL – 3/0 STR |

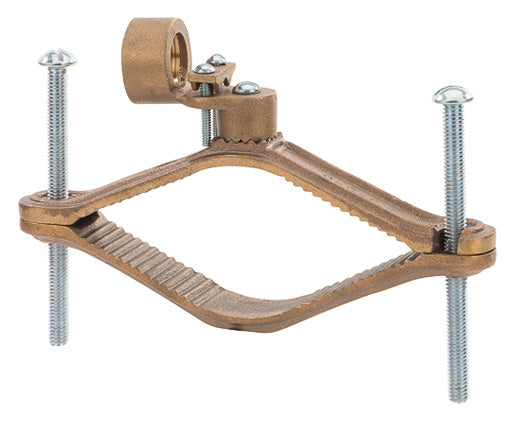

| NPNB-G-25 | UL | 4 1/2 - 6 | 1 |
10 SOL – 3/0 STR |
What's in the box?
What's in the box?
-
Ground Clamps Heavy Duty with 360° Adapters for Rigid Conduit
