Description
Aluminum, Dual Rated, Box Turn-Prevent Lugs
Primus Cables’ Dual Rated, Box Turn-Prevent Lugs are made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance.
Features
- Made of 6061T-6 aluminum alloy.
- Electro-tin plated for low contact resistance.
- For use with copper or aluminum conductors.
- Design includes threaded mounting hole.
- Turn prevent node located on bottom prevents rotation of lug.
Specifications
- CSA 70142.
- UL486A/B Listed. AL9CU.
- Temperature Rating: 75 °C.
- Voltage: 600V max. (2000V ma. per UL486B).
| Part# | Wire Range | MTG. Bolt Size (in.) | Length (in.) | Height (in.) | Width (in.) |

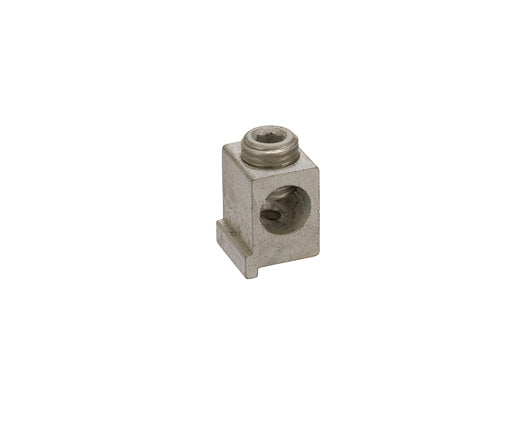

| NPNB-BTP0 | 0-10 AWG | #10 | 0.660 | 0.830 | 0.620 |

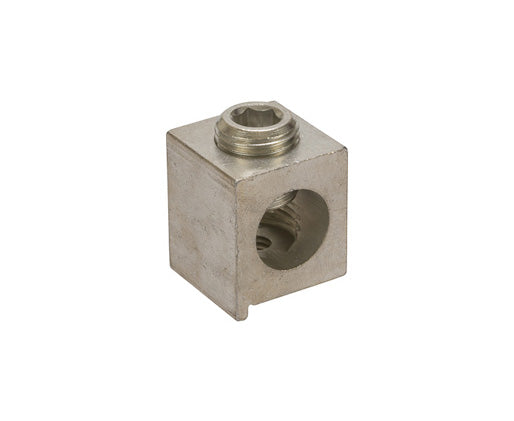

| NPNB-BTP300 | 300 MCM - 6 AWG | 1/4 | 0.970 | 1.160 | 0.980 |

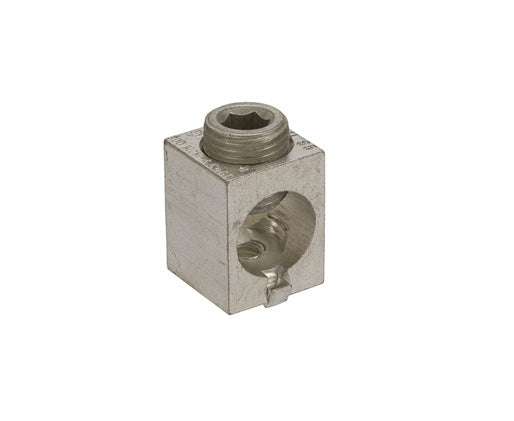

| NPNB-S300 | 300 MCM - 6 AWG | 1/4 | 0.880 | 1.090 | 0.880 |

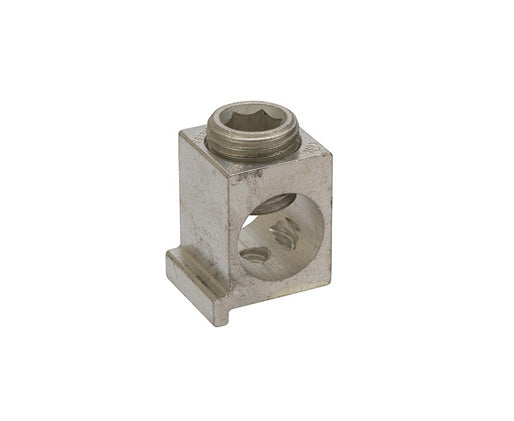

| NPNB-BTP350 | 350 MCM - 6 AWG | 1/4 | 0.880 | 1.100 | 0.880 |
What's In The Box
- Qty 1 - Aluminum, Dual Rated, Box Turn-Prevent Lugs
