Description

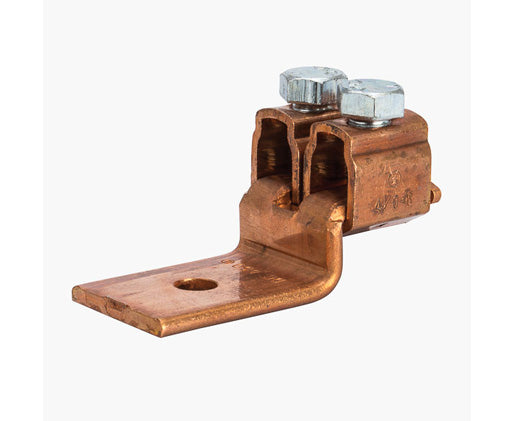

Copper Single/Double Solderless Lugs
Primus Cables’ Copper Solderless Lugs are made of 99.98% pure electrolytic copper and have steel-plated screws to prevent rusting.
Features
- Made of 99.98% pure electrolytic copper.
- Steel-plated screws to prevent rusting.
- 25 to 70 ampere sizes have slotted head screws.
- Larger sizes have hex head screws.
- For use with copper wire only.
Specifications
- UL486A Listed for Wire Connector.
- Temperature Rating: 90 °C. 9CU.
- Voltage: 600V max
| Part# | Wire Range | MTG. Bolt Size |
AMP Rating (in.) | Max Torque Value (in./lbs.) | Length (in.) | Height (in.) | Width (in.) |

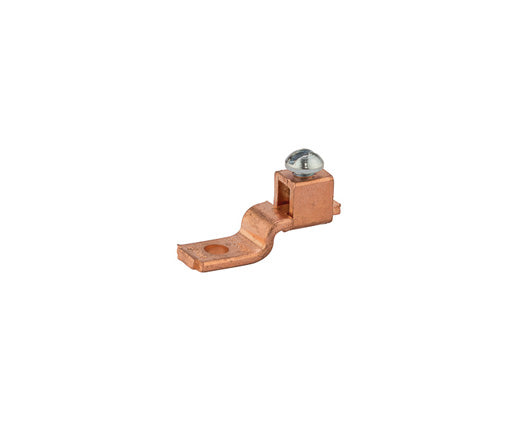

| NPNB-DE703 | 10-14 AWG | 1/4 | 25 | 60 | 1.025 | 0.465 | 0.315 |

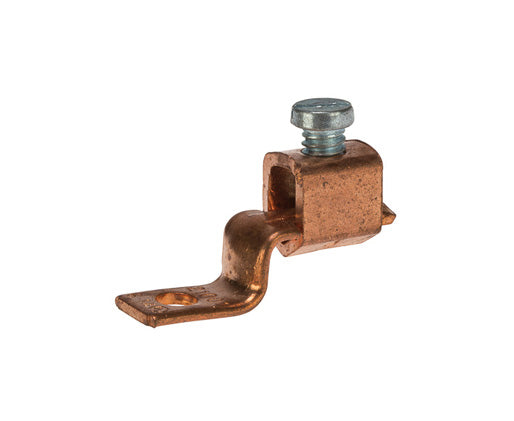

| NPNB-DE704 | 6-14 AWG | 3/16 | 35 | 90 | 1.190 | 0.500 | 0.380 |

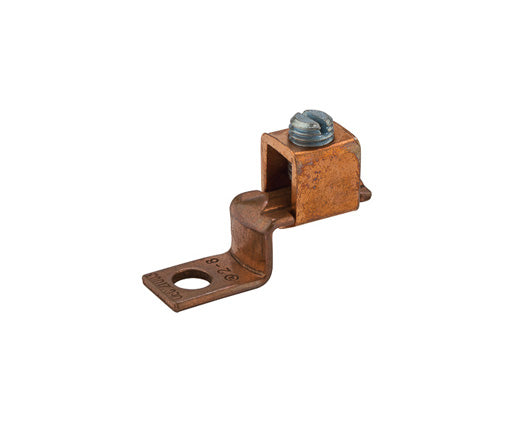

| NPNB-DE705 | 2-8 AWG | 5/16 | 70 | 125 | 1.550 | 0.650 | 0.500 |

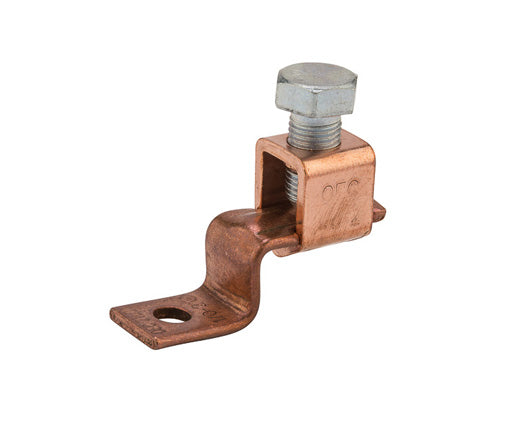

| NPNB-DE706 | 1/0-8 AWG | 1/4 | 125 | 150 | 1.970 | 0.880 | 0.630 |

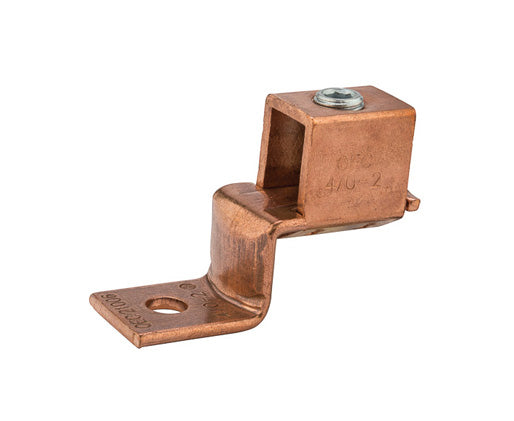

| NPNB-DE707 | 4/0-2 AWG | 1/2 | 225 | 200 | 2.380 | 1.170 | 1.000 |

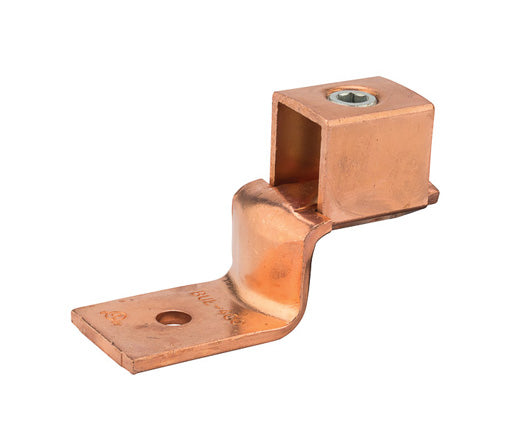

| NPNB-DE708 | 500 MCM-4/0 AWG | 15/16 | 400 | 300 | 4.320 | 2.200 | 1.497 |

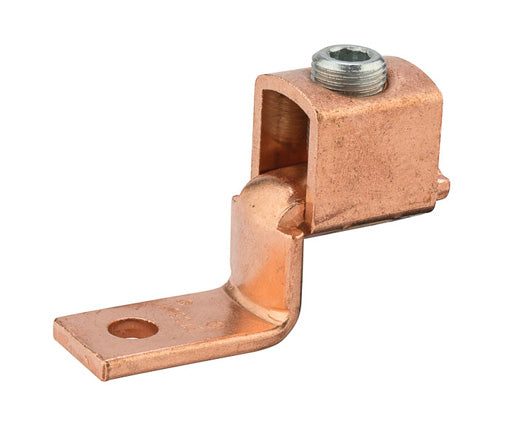

| NPNB-DE710 | 350 MCM-1/0 AWG | 3/4 | 300 | 250 | 3.025 | 2.310 | 0.998 |

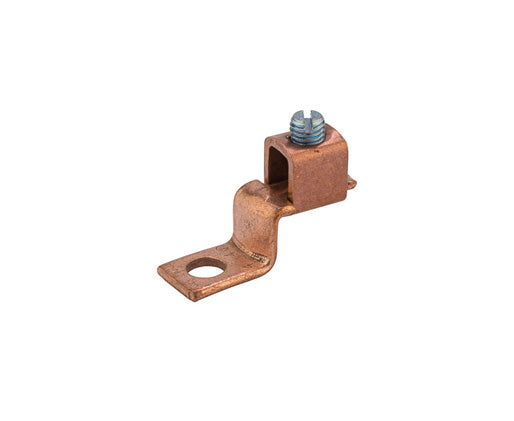

| NPNB-DE711 | 4-14 AWG | 1/4 | 70 | 90 | 1.310 | 0.560 | 0.500 |

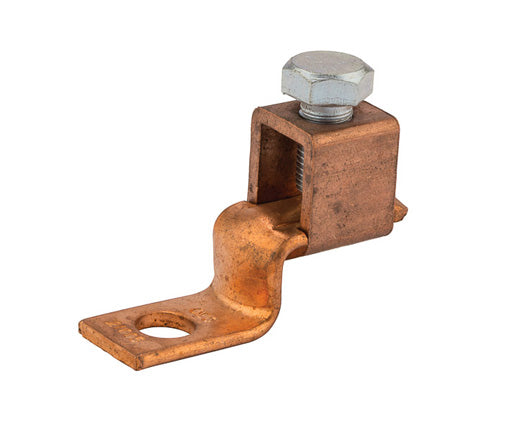

| NPNB-DE713 | 3/0-4 AWG | 3/8 | 175 | 200 | 2.190 | 1.030 | 0.750 |
What's in the box?
What's in the box?
-
Qty 1 - Copper Single/Double Solderless Lugs
