These products are all Made to Order
Which means they are non-cancelable and non-refundable
Description
Grounding Clamp Heavy Duty Direct Burial & with Adapters
A full Grounding line covering all applications, featuring heavy duty, direct burial clamps, and range taking rod clamps. Primus Cables’ Grounding line also includes clamps with adapters, clamps for water pipe, rigid conduit or rebar, intersystem bonding connectors, and clamps for parallel 90, 2, and 3 conductor copper cable.
Features

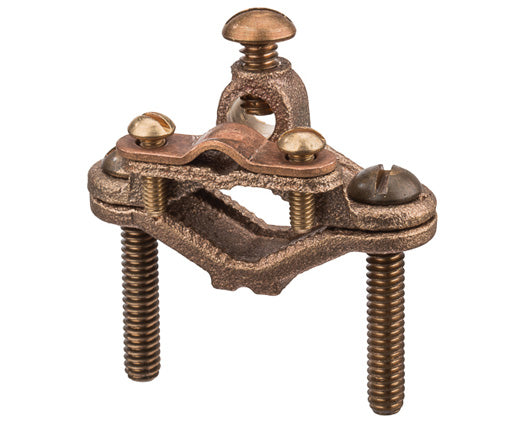

Direct Burial With Wire Adapters (G-20DB)
- For connecting wire to copper water pipe for grounding.
- Special pressure bar grips cable armor to lessen chances of grounding conductor being pulled out.
- Assembled with silicon bronze screws.

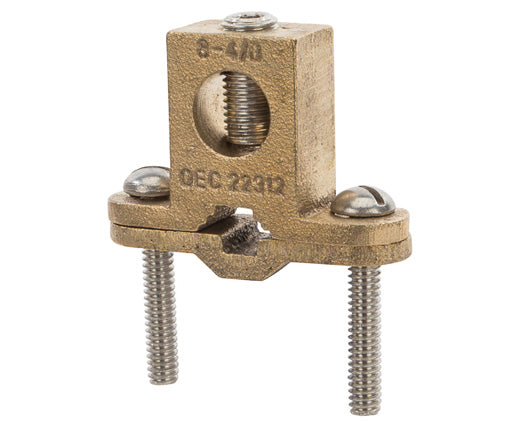

Extra Heavy Duty Direct Burial (G-140DB)
- This incredible ground clamp can handle just about any size ground wire and just about any application.
- Assembled with tough 304 stainless steel screws.
- Will accommodate ground wires from 8 AWG to 4/0 AWG
Specifications
Direct Burial With Wire Adapters (G-20DB)
- cULus Listed 467 Grounding & Bonding.
- UL467 Listed, Grounding & Bonding.
- CSA.
- Application: UL Listed for direct burial in earth and concrete.
Extra Heavy Duty Direct Burial (G-140DB)
- cULus Listed 467 Grounding & Bonding.
- UL467 Listed, Grounding & Bonding).
- Application: UL Listed for direct burial in earth and concrete, be used with rebar, copper water pipe, copper tubing and ground rods up to 1 inch in diameter.
| Part# | Certification | Pipe Size (IPS) (in.) | Ground Wire Range (in.) | Rebar Size (in.) | Ground Rod Size (in.) | Length (L) (in.) | Width (W) (in.) | Height (H) (in.) |
| NPNB-G-140DB |
UL |
1/2 - 1 | 4, 6, 8 STR | - | - | 2.250 | 1.000 |
1.350 |
| NPNB-G-20DB |
cULus |
1 | 10 SOL - 2/0 STR | 3/8 - 1 | 1/2 - 1 | 2.362 |
0.669 |
1.761 |
What's in the box?
What's in the box?
-
Qty 1 - Ground Clamp Direct Burial
