Description

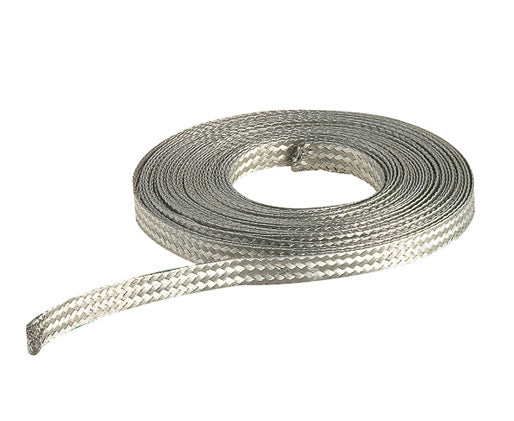

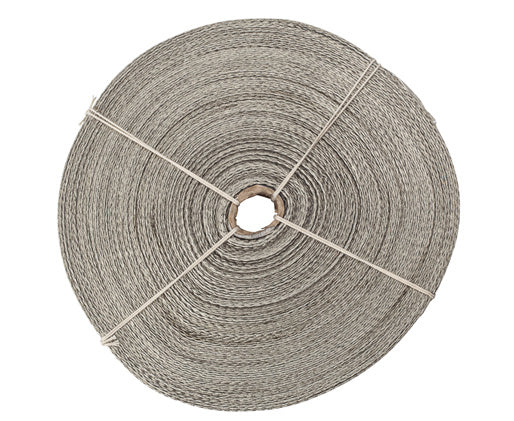

Flexible Braided Grounding Strap 25ft, 100ft lengths
Flexible Braided Grounding Straps in 25ft or 100ft.
Features
- Woven of high conductivity, annealed, tinned copper wire, this braided ground strap provides maximum flexibility and ease of handling when installing ground or shield continuity.
- This braid is used for shield and lead-sheath grounding and is easily soldered to lead, copper and tinned metals.
- It is also used for continuing the fault-carrying capacity of the cable shield as a jumper braid.
Specifications
| Part# | Equivalant AWG Size | Length (ft) | Width (in) |
| NPNB-SA382B | 9 AWG | 25 | 3/8 |
| NPNB-SA382C | 9 AWG | 100 | 3/8 |
| NPNB-SA582B | 6 AWG | 25 | 1/2 |
| NPNB-SA582C | 6 AWG | 100 | 1/2 |
What's in the box?
What's in the box?
-
Qty 1 - Ground Strap Flexible 25'-100'
