Description

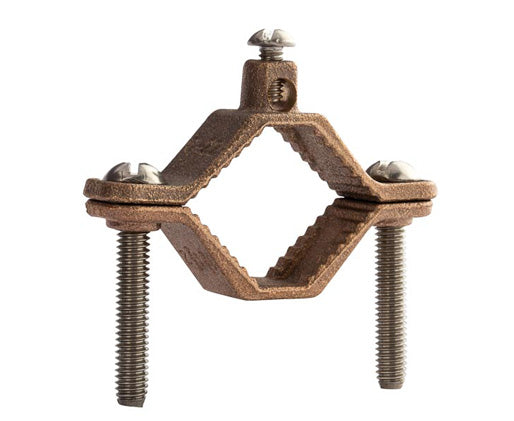

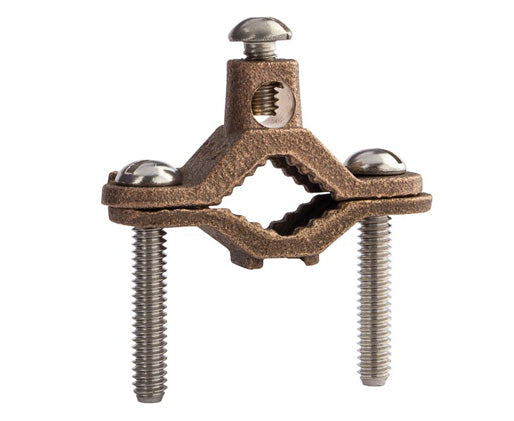

Heavy Duty Direct Burial Grounding Clamp
A full Grounding line covering all applications, featuring heavy duty, direct burial clamps, and range taking rod clamps. Primus Cables’ Grounding line also includes clamps with adapters, clamps for water pipe, rigid conduit or rebar, intersystem bonding connectors and clamps for parallel 90, 2, and 3 conductor copper cable.
Features
- Screws are 304 stainless steel.
- *G-S-DB are available with silicon bronze screws by adding suffix of -SB.
Specifications
- cULus Listed 467 Grounding & Bonding.
- UL467 Listed, Grounding & Bonding.
| Part# | Certification | Pipe Size (IPS) (in.) | Ground Wire Bolt Size (in.) | Ground Clamp Bolt Size (in.) | Ground Wire Range (in.) | Length (L) (in.) | Width (W) (in.) | Height (H) (in.) |
| NPNB-G-1-SDB |
UL |
1/2 - 1 | 1/4"-20 x 1/2" | 1/4"-20 x 1.50 | 10 SOL - 2 STR | 2.280 | 0.650 |
1.400 |
| NPNB-G-2-SDB |
UL |
1 1/4 - 2 | 1/4"-20 x 1/2" | 5/16"-18 x 2" | 10 SOL - 2 STR | 3.600 |
0.750 |
1.690 |
What's in the box?
What's in the box?
-
Qty 1 - Heavy Duty Direct Burial Ground Clamp
