These products are all Made to Order
Which means they are non-cancelable and non-refundable
Description
Isolated Ground Bars
A full Grounding line covering all applications, featuring heavy duty, direct burial clamps, and range taking rod clamps. Primus Cables’ Grounding line also includes clamps with adapters, clamps for water pipe, rigid conduit or rebar, intersystem bonding connectors, and clamps for parallel 90, 2, and 3 conductor copper cable.
Features

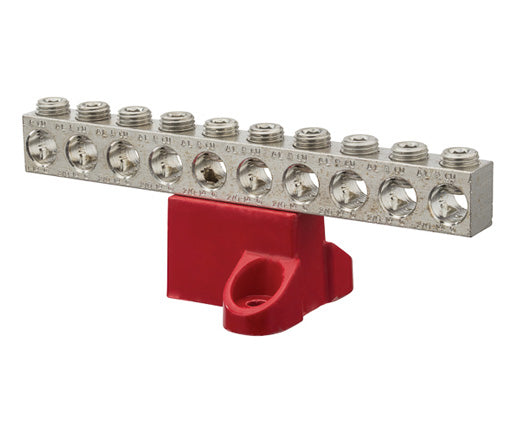

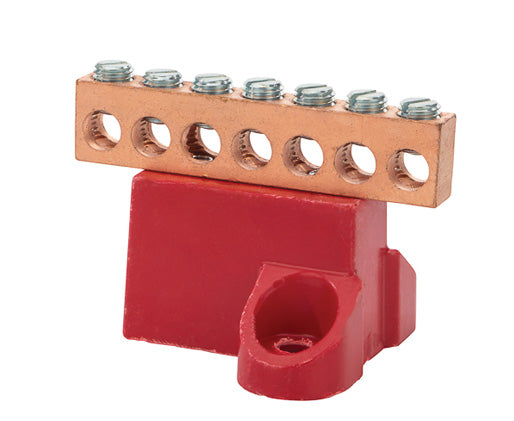

- Made from either high-strength aluminum alloy 6061-T6 or high-conductivity copper as indicated below.
- The base is made from high-strength glass-filled polyester.
- Aluminum connectors are dual-rated for use with aluminum or copper cables.
Specifications
| Part# | Material | Wire Range | NO. of Circuits | Length (L) (in.) | Width (W) (in.) | Height (H) (in.) |

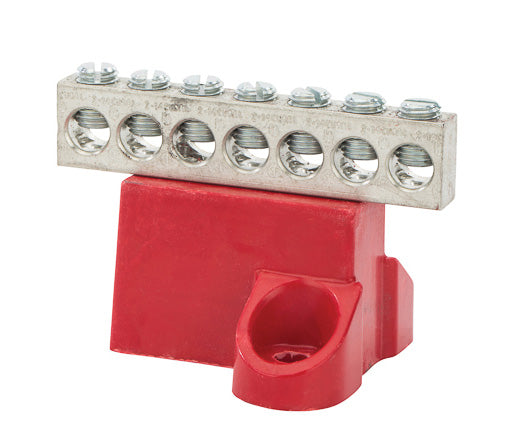

| NPNB-GBA2-7 | Aluminum | AL/CU2 - 14 | 7 | 2.88 | 2.31 | 1.88 |
| NPNB-GBC2-7 |
Copper |
CU 2 - 14 | 7 | 2.88 | 2.31 | 1.75 |
| NPNB-GBA2-10 |
Aluminum |
AL/CU2 - 14 | 10 | 4.07 | 2.31 | 1.88 |

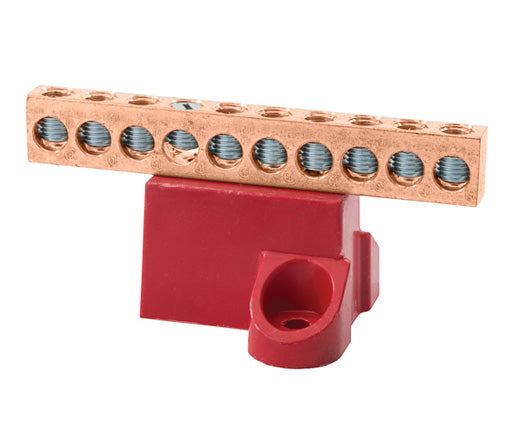

| NPNB-GBC2-10 |
Copper |
CU 2 - 14 | 10 | 4.07 | 2.31 | 1.75 |
| NPNB-GBA2-14 |
Aluminum |

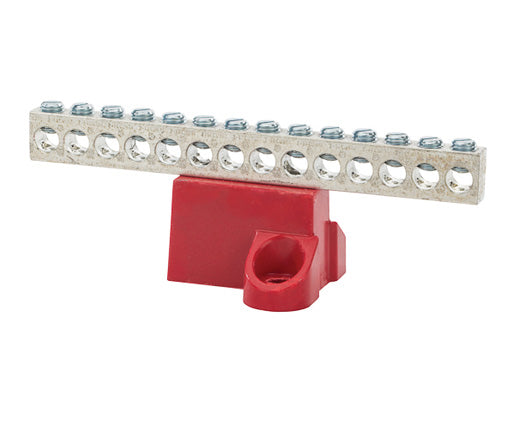

AL/CU2 - 14 | 14 | 5.56 | 2.31 | 1.88 |

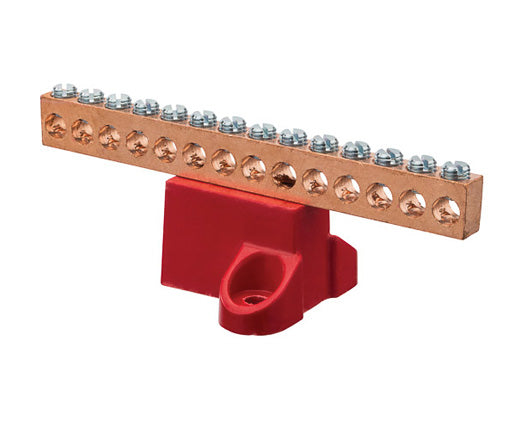

| NPNB-GBC2-14 |
Copper |
CU 2 - 14 | 14 | 5.56 | 2.31 | 1.75 |

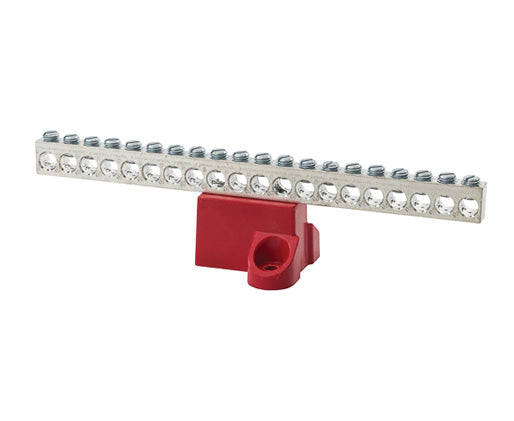

| NPNB-GBA2-20 |
Aluminum |
AL/CU2 - 14 | 20 | 8.04 | 2.31 | 1.88 |

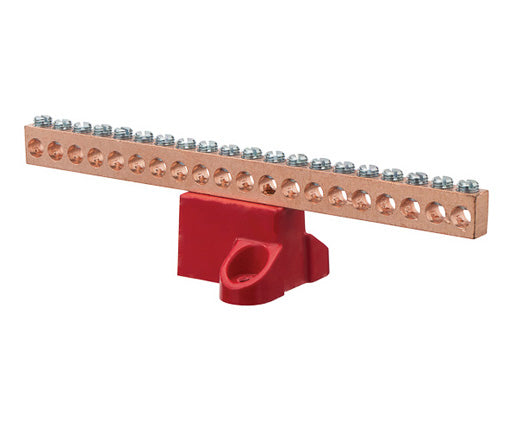

| NPNB-GBC2-20 | Copper | CU 2 - 14 | 20 | 8.04 | 2.31 | 1.75 |

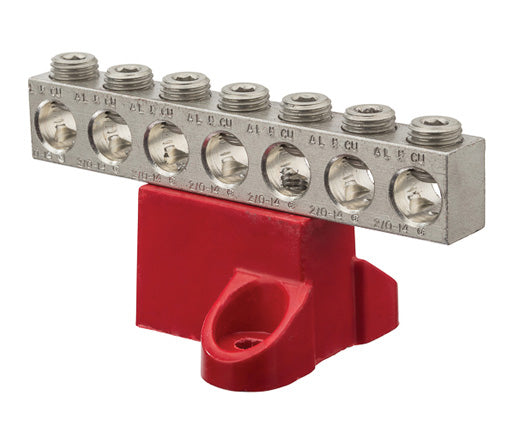

| NPNB-GBA20-7 | Aluminum | AL/CU 2/0 - 14 | 7 | 4.61 | 2.31 | 2.13 |
| NPNB-GBA20-10 | Aluminum | AL/CU 2/0 - 14 | 10 | 6.41 | 2.31 | 2.13 |

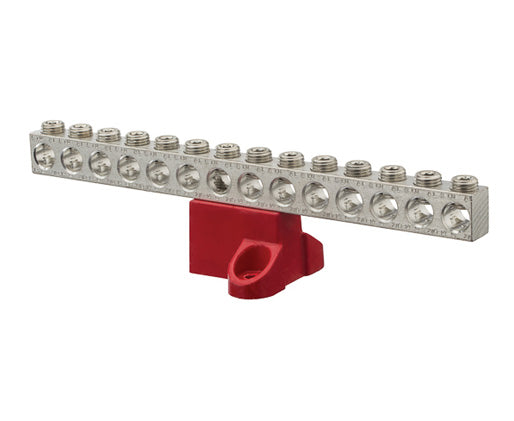

| NPNB-GBA20-14 | Aluminum | AL/CU 2/0 - 14 | 14 | 8.81 | 2.31 | 2.13 |
What's in the box?
What's in the box?
-
Qty 1 - Isolated Ground Bar
