Zinc Die Cast and Standard Duty Silicon Bronze Grounding Clamps
by Primus Cable
$3.20
SKU: CD5-6167-GC
These products are all Made to Order
Which means they are non-cancelable and non-refundable
Description
Zinc Die Cast & Standard Duty Silicon Bronze Grounding Clamps
A full Grounding line covering all applications, featuring heavy duty, direct burial clamps, and range taking rod clamps. Primus Cables’ Grounding line also includes clamps with adapters, clamps for water pipe, rigid conduit or rebar, intersystem bonding connectors, and clamps for parallel 90, 2, and 3 conductor copper cable.
Features

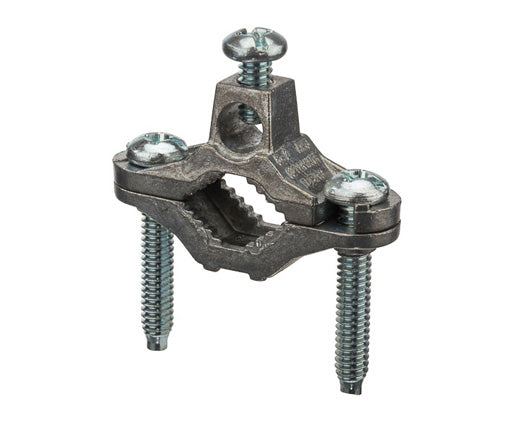

Zinc Die-Cast Ground Clamps (GZ)
- Die cast from high-strength zinc alloy.
- Used to connect bare copper wire for grounding.
- Zinc plated steel screws.

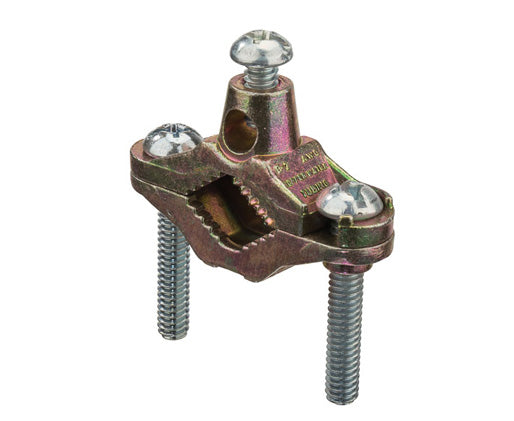

- GZB-1 is brass plated and not UL Listed.

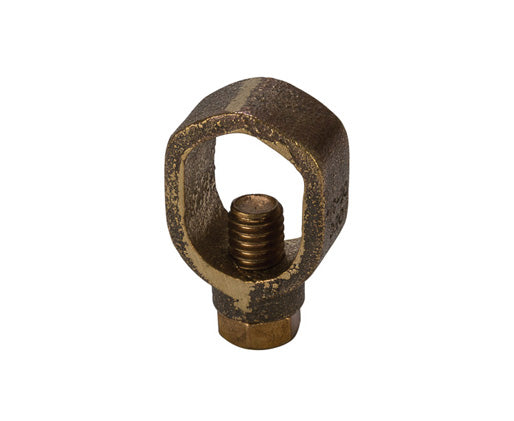

Standard Duty Silicon Bronze (GRC)
- Ground rod clamps are made from silicon bronze with 304 stainless steel screws for maximum strength.
- All standard duty and heavy duty ground clamps are UL Listed for direct burial in earth or concrete.
Specifications
Zinc Die-Cast Ground Clamps (GZ)
- cULus Listed 467 Grounding & Bonding.
- UL467 Listed, Grounding & Bonding.
- CSA.
Standard Duty Silicon Bronze (GRC)
- cULus Listed 467 Grounding and Bonding.
- UL467 Listed, Grounding & Bonding.
| Part# | Certification | Ground Wire Range (in.) | Conduit Size (in.) | Ground Rod Size (in.) | Rebar Size (in.) | Ground Wire Maximum (in.) |
| NPNB-GZ-1 |
UL |
2 - 10 | 1/2 - 1 | - | - | |
| NPNB-GZB-1 |
- |
2 - 10 | 1/2 - 1 | - | - | |
| NPNB-GRC-50-SB | cULus | - | - | 1/2 | 3/8 | 10 SOL - 2 STR |
| NPNB-GRC-58-SB | cULus | - | - | 5/8 | 1/2 | 10 SOL - 2 STR |
What's in the box?
What's in the box?
-
Qty 1 - Zinc Die Cast & Standard Duty Silicon Bronze Grounding Clamps
