Archer A7 Wireless Dual Band Gigabit Router

by TP-Link
$59.99
SKU: Archer A7
Various lead times may apply to this product. Please contact us for more details.

Description

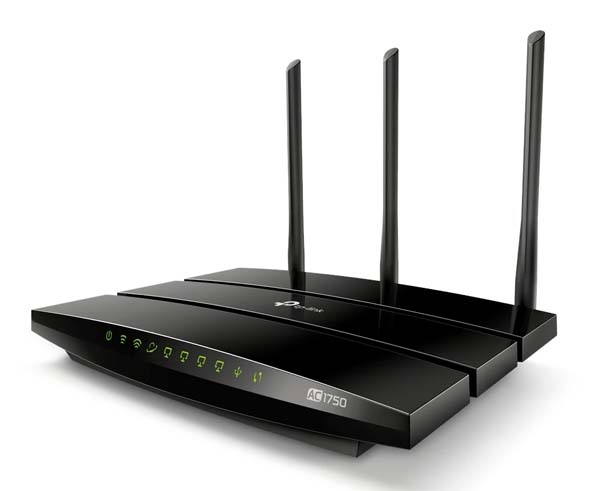

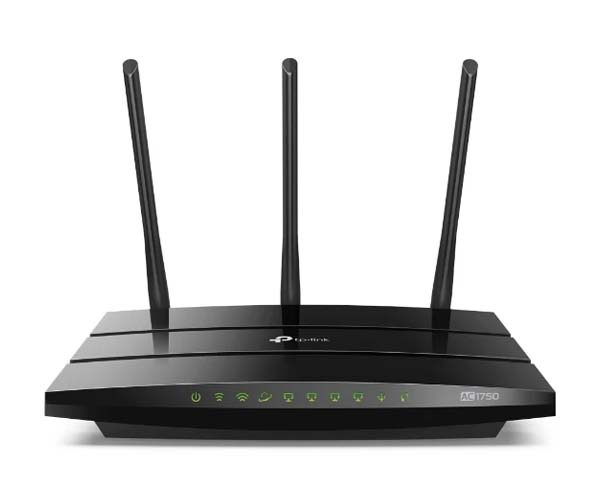

Archer A7 Wireless Dual Band Gigabit Router

The New WiFi Standard for an Advanced Online Experience

The Archer A7 is a fast 802.11ac router with incredible range. It's better than many routers that are twice as expensive. This advanced WiFi is designed for high-traffic online activities and can help to run applications at triple the speed of the previous 802.11n standard.

Concurrent Dual Band Connections for Lag-Free Work and Entertainment

The Archer A7 operates both the 2.4GHz and 5GHz bands, ensuring amazing wireless performance. Simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.

External Antennas with Dual Band WiFi Greatly Expand Wireless Coverage*

Three external antennas with advanced connection technology allow you to maintain impressive speeds. With antennas serving both the 2.4GHz and 5GHz band, you can enjoy incredible wireless coverage and reliability in any part of your large home or office.

Wireless Application Network Map

Versatile USB Connectivity

A USB 2.0 port makes the Archer A7 a truly resourceful gateway. Share a hard drive full of media through your home network, or via an ftp server whenever you’re away.

Full Gigabit Wired Connections for Ultrafast Data Transfer Speeds

With one Gigabit WAN port and four Gigabit LAN ports, speeds can be up to 10× faster than standard Ethernet connections. The Archer A7 is a powerful hub to support a robust and extremely fast wired network.


Parental controls, manage when and how connected devices can access the internet.
Supports IPv6, the next generation of Internet protocol, helping you to future-proof your network.
Quality of service prioritizes devices or applications to give faster performance where you need it.


*Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications along with the number of connected devices were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.

Features

Features

  • Supports 802.11ac standard - Faster than wireless N speeds
  • Simultaneous 2.4GHz 450 Mbps and 5GHz 1300 Mbps connections for 1.75Gbps of total available bandwidth
  • USB Port - easily shares files & media with networked devices or remotely via FTP server
  • Guest Network Access - provides secure Wi-Fi access for guests sharing your home or office network
  • Easy setup and management with Tether App

Specifications

Specifications



WIRELESS FEATURES
Standards Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
Wi-Fi Speeds AC1750
5 GHz: 1300 Mbps (802.11ac)
2.4 GHz: 450 Mbps (802.11n)
Wi-Fi Range 3 Bedroom Houses
3× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Wi-Fi Capacity Medium
Dual-Band
Allocate devices to different bands for optimal performance
Working Modes Router Mode
Access Point Mode
HARDWARE FEATURES
Processor Qualcomm CPU

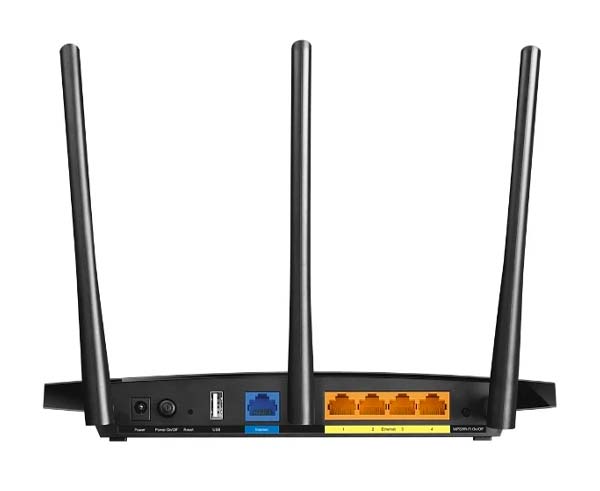

Ethernet Ports 1× Gigabit WAN Port
4× Gigabit LAN Ports
USB Support 1× USB 2.0 Port

Supported Partition Formats:
NTFS, FAT32

Supported Functions:
FTP Server
Media Server
Samba Server
Buttons Wi-Fi On/Off Button
Power On/Off Button
WPS/Reset Button
Power 12 V ⎓ 1.5 A
Dimensions (W x D x H) 9.6 x 6.4 x 1.3 in (243 x 160.6 x 32.5mm)
SECURITY FEATURES
WI-Fi Encryption WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP
SOFTWARE FEATURES
Protocols IPv4
IPv6
OneMesh OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Parental Controls URL Filtering
Time Controls
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Virtual Server
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
GENERAL
Certification FCC, CE, RoHS
Package Contents Wi-Fi Router Archer A7
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Installation Information

Quick Tips - How to Share Your WiFi
How to turn a router into an Access Point?
How to set up Port Forwarding on a TP-Link router
How to set Parental Controls on a TP-Link router
How to change the Wi-Fi settings on TP-Link router
What should I do if I cannot access the internet? - Using a cable modem and a TP-Link router

What’s In The Box

What’s In The Box

  • Qty 1 - Wireless Router
  • Qty 1 - Power Adapter
  • Qty 1 - Ethernet Cable
  • Qty 1 - Quick Installation Guide
