Archer AX6000 8-Stream Wi-Fi 6 Router with 2.5G Port

by TP-Link
$229.99
SKU: Archer AX80
Various lead times may apply to this product. Please contact us for more details.

Description

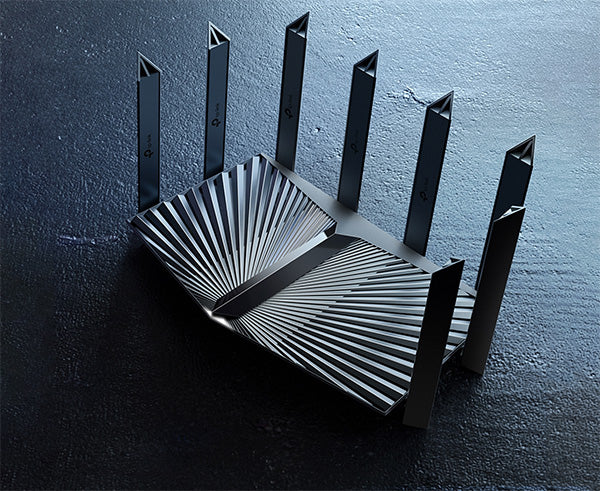

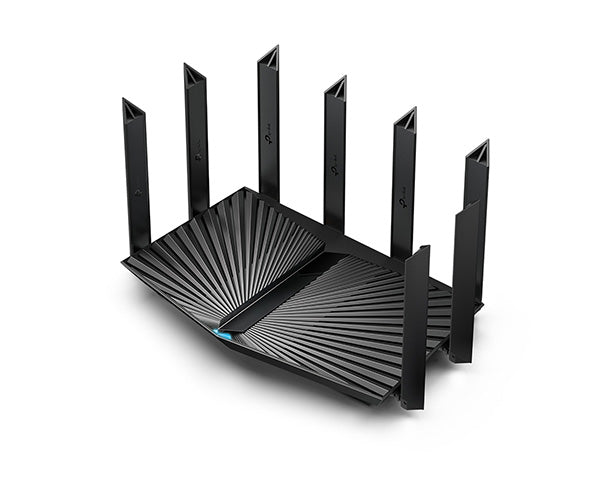

Archer AX6000 8-Stream Wi-Fi 6 Router with 2.5G Port

There is no reason to hold off on buying a Wi-Fi 6 router when you can already take full advantage of the speed it delivers. The Archer AX80, based on the next generation Wi-Fi 6 (802.11ax) technology, takes your Wi-Fi to the next level while being backwards compatible with previous generations (802.11a/b/g/n/ac standards) Wi-Fi.

Flexible Whole-Home Wi-Fi

Eight high-performance antennas and Beamforming deliver broad coverage. Furthermore, Archer AX80 supports OneMesh™ to form seamless whole-home coverage, preventing drops and lag when moving between signals.

Multi-Gig Internet Connection

A 2.5 Gbps port and 1 Gbps port make full use of gigabit speeds from your local ISP. Break through the 1G bottleneck and drive your devices to peak performance. WAN/LAN support gives you remarkable flexibility to tailor both ports to fit your network's needs.

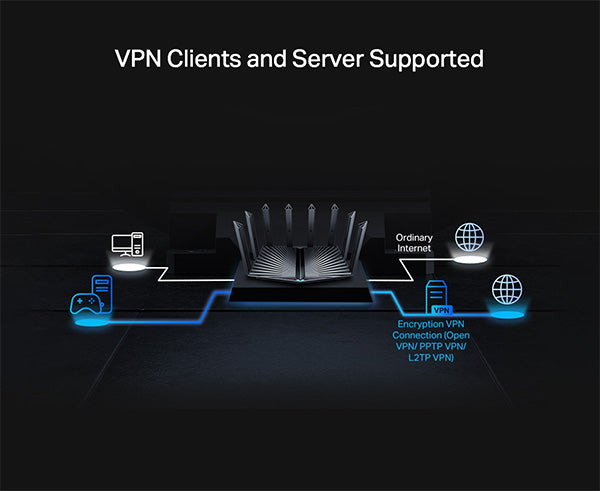

VPN Client Supported

With VPN client support, AX80 allows specified devices in your home network to access remote VPN servers without needing to install VPN software on every device. AX80 can also run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.

Top-Notch Processing

A 2.0 GHz Quad-Core CPU provides the processing ability to handle enormous data throughput and minimizes the lag within your home network, giving you a smooth online experience.

Features

Features

  • Lightning-Fast AX6000 Wi-Fi: Up to 6.0 Gbps (4804 Mbps + 1148 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.1
  • 2.5G Multi-Gigabit Port: 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.
  • Maximized Coverage: Eight high-gain antennas equipped with Beamforming ensure vast coverage.
  • More Devices with Less Lag: OFDMA and MU-MIMO technology deliver data to multiple devices simultaneously.1
  • Powerful CPU: 2.0 GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.
  • VPN Client Supported: Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device.
  • TP-Link HomeShield: Enhanced security defends against the latest cyber threats.5
  • TP-Link OneMesh Supported: Flexibly Create Whole Home WiFi with Archer AX80 by adding a OneMesh supported Range Extender.
  •  Compatible with Alexa: Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

Specifications

Specifications





WIRELESS
Standards Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX6000
• 5 GHz: 4804Mbps (802.11ax, HE160)
• 2.4 GHz: 1148 Mbps (802.11ax)
WiFi Range 3+ Bedroom Houses
• 8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

• Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

• High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity High
• Dual-Band
Allocate devices to different bands for optimal performance

• OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

• Airtime Fairness
Improves network efficiency by limiting excessive occupation

• DFS
Access an extra band to reduce congestion

• 8 Streams
Connect your devices to more bandwidth
Working Modes • Router Mode
• Access Point Mode
HARDWARE

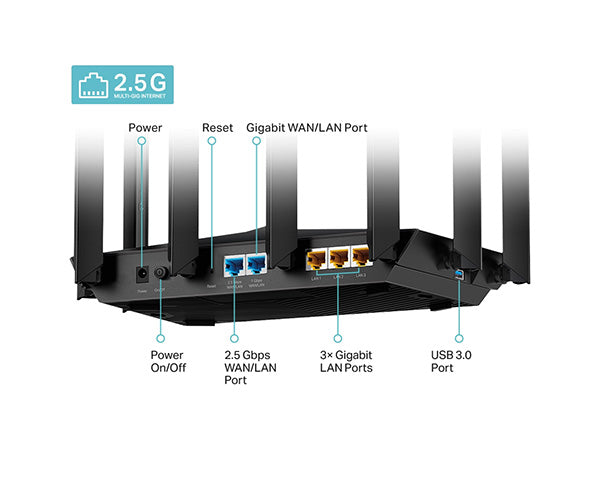

Ethernet Ports • 1× 2.5 Gigabit WAN/LAN Port
• 1× Gigabit WAN/LAN Port
• 3× Gigabit LAN Ports
USB Support 1× USB 3.0 Port

USB Sharing:
• FTP Server
• Media Server
• Samba Server
Buttons • LED On/Off Button
• WPS Button
• Wi-Fi On/Off Button
• Power On/Off Button
• Reset Button
Power • 12 V/3.3 A
SECURITY
WiFi Encryption • WPA3*6
• WPA2
• WPA
• WPA/WPA2-Enterprise (802.1x)
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network • 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
VPN Server • OpenVPN
• PPTP
• L2TP
VPN Client • OpenVPN
• PPTP
• L2TP
SOFTWARE
Protocols • IPv4
• IPv6
Service Kits HomeShield
Learn More>
OneMesh™ OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
Parental Controls HomeShield Parental Controls
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports
WAN Types • Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
Quality of Service QoS by Device
Cloud Service • Auto Firmware Upgrade
• OTA Firmware Upgrade
• TP-Link ID
• DDNS
NAT Forwarding • Port Forwarding
• Port Triggering
• DMZ
• UPnP
IPTV • IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
DHCP • Address Reservation
• DHCP Client List
• Server
DDNS • TP-Link
• NO-IP
• DynDNS
Management • Tether App
• Webpage
Check Web Emulator>
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
TEST DATA
WiFi Transmission Power FCC:
<24dBm (5.25GHz~5.35GHz&5.47GHz~5.73GHz)
<30dBm (5.15GHz~5.25GHz&5.735GHz~5.835GHz)
<30dBm (2.4GHz)
WiFi Reception Sensitivity • 2.4 GHz:
11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -67dBm,
11ac VHT40 MCS0: -94dBm, 11ac VHT40 MCS11: -64dBm,
11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -67dBm,
11ax HE40 MCS0: -94dBm, 11ac HE40 MCS11: -64dBm
• 5 GHz:
11ac VHT20 MCS0: -96dBm, 11ac VHT20 MCS11: -66dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -63dBm,
11ac VHT80 MCS0: -91dBm, 11ac VHT80 MCS11: -61dBm,
11ac VHT160 MCS0: -86dBm, 11ac VHT160 MCS11: -58dBm,
11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm,
11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -63dBm,
11ax HE80 MCS0: -91dBm, 11ax HE80 MCS11: -61dBm,
11ax HE160 MCS0: -86dBm, 11ax HE160 MCS11: -58dBm
PHYSICAL
Dimensions (W×D×H) 10.9 × 7.2 × 2.3 in (277.3 × 183.9 × 57.3 mm)
Package Contents • Wi-Fi Router Archer AX80
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
