AX3000 Dual Band Gigabit Wi-Fi 6 Router
AX3000 Dual Band Gigabit Wi-Fi 6 Router
This TP-Link router comes equipped with Wi-Fi 6 capabilities. Fully suited for Gigabit speeds, the router allows for streaming multiple high-definition movies and playing multiplayer games on the same connection. With 512MB of RAM and integration of OneMesh Technology, this TP-Link dual band router is the most advanced you’ll add to your home network.
Drastically improved speeds enable streaming, fast downloading, and gaming—all at the same time. 5 GHz with 160 MHz channel support doubles the bandwidth, enabling 8K video without lag.
More Responsive Experiences
Enjoy smooth gaming, video streaming, and live feed simultaneously. OFDMA makes your Wi-Fi stronger by allowing multiple clients to share one band at the same time, which cuts latency and jittering.
Powerful CPU and High Memory
Behind the Wi-Fi 6 technology structure are the advanced Qualcomm chipset and high memory. Enjoy fast connections with minimal latency even under a heavy load of transmission. Every click for website links and online playback on your laptop and phone just responds quicker.
Improved Cooling Design Consistent Full Output
No heat ups, no throttles. A larger heat sink and refined case design cool the Wi-Fi 6 system and enable your network to stay at top speed in more versatile environments.
Wi-Fi Coverage Throughout Your Home
4 high-performance external antennas boost Wi-Fi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for previously hard to reach outlets.
USB 3.0 Ports
Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely*.
- Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
- Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
- Ultra-Low Latency—Enables more responsive gaming and video chatting.
- Expanded Wi-Fi Coverage—Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.
- TP-Link HomeShield - Enhanced security defends against the latest cyber threats.
- Improved Battery Life—Target Wake Time helps your devices to communicate more while consuming less power.
- Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)
3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Concentrates wireless signal strength towards clients to expand WiFi range
Improves transmission power to strengthen signal coverage
Allocate devices to different bands for optimal performance
Simultaneously communicates with multiple Wi-Fi 6 clients
Improves network efficiency by limiting excessive occupation
Access an extra band to reduce congestion
Connect your devices to more bandwidth
Access Point Mode

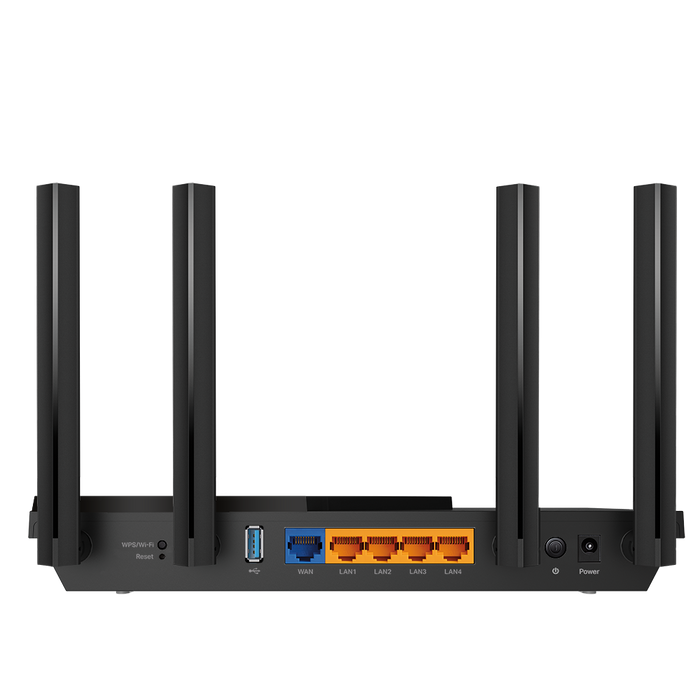

1 x Gigabit WAN Port
4x Gigabit LAN Ports
1× USB 3.0 Port
Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
Apple Time Machine
Power On/Off Button
|Power||12 V ⎓ 2 A
|Dimensions (W x D x H)||
10.2 x 5.3 x 1.5 in
(261.1 x 134.5 x 41.0 mm)
Wi-Fi Router Archer AX55
RJ45 Ethernet Cable
Quick Installation Guide
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
|Certifications||FCC, CE, RoHS|
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
How to Set up Address Reservation on TP-Link Routers Windows
How to Set up OpenVPN on TP-Link Routers Windows
How to setup PPTP VPN on TP-Link Routers Windows
How To: Setup Archer WiFi 6 Router TP-Link
What should I do if I cannot access the internet? - Using a DSL modem and a TP-Link router
What should I do if I cannot access the internet? - Using a cable modem and a TP-Link router
TP-Link Archer AX Series (Archer AX55) Setup
What's in the Box
- (1) - Wireless Router
- (1) - Power Adapter
- (1) - RJ45 Ethernet Cable
- (1) - Quick Installation Guide
