Description
Archer AX6000 Next-Gen Wi-Fi Router
There is no reason to hold off on buying a Wi-Fi 6 router when you can already take full advantage of the speed it delivers. This router provides industry-leading speeds of up to 1148 Mbps on a 2.4GHz band and 4804 Mbps on a 5GHz band. With the maximum bandwidth increased to 160MHz, you enjoy blazing-fast speeds without any lag. Now, you can simultaneously connect more devices and enjoy the optimum speed for each of them.
Far Reaching Wi-Fi Coverage
8 high-gain external antennas deliver a strong Wi-Fi signal throughout your home. BSS Color technology ensure smooth and stable connections by eliminate signal interference probably from your neighbors, while beamforming and Rangeboost deliver stronger and far-reaching network.

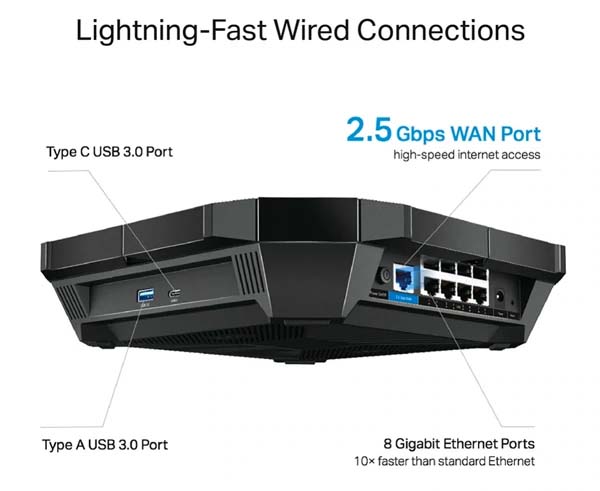

Lighting-Fast Wired Connections
The Archer AX6000 provides a 2.5Gbps WAN port6 to make fully use of the over 1Gbps internet access, boost the whole internet throughput. one Type C and one Type A USB 3.0 ports and eight Gigabit Ethernet ports also help to transfer data at blistering speeds for peak performance.
Smarter. Faster. Safer
An extremely powerful 1.8GHz 64-bit quad-core processor with two distinct co-processors and 8Gb of RAM powers through multiple complex tasks and demanding applications with ease. Its processing power allows the router to support multiple high-demand applications at the same time.
Features
- Blazing Speed: AX6000 Dual-Band Wi-Fi speed boosted by 1024QAM deliver astonishing wireless speed up to 5952 Mbps: 4804 Mbps (5 GHz) and 1148 Mbps (2.4 GHz).
- Ultra Connectivity: 1 × 2.5Gbps WAN port6, 8 × Gigabit LAN ports, and 2 × USB 3.0 in Type A and Type C.
- Highly Efficient: OFDMA increases average throughput by 4× in high-density scenarios, compared with an 802.11ac standard router. Downlink and uplink MU-MIMO5 are both supported.
- Powerful Processing: 1.8 GHz Quad-Core CPU and 2 co-processors eradicate latency and deliver stable performance.
- Intelligent Connection: Band Steering directs clients to less congested band and Airtime Fairness optimizes the time usage.
- Security System Built-In: A free lifetime subscription of TP-Link HomeCareTM provides your whole network with advanced antimalware service, delivering Antivirus, Parental Controls and QoS.
- Easy Setup: Link to your router via Bluetooth and set it up in minutes with the powerful Tether app.
Specifications
| WIRELESS | ||
|---|---|---|
| Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
|
| Wi-Fi Speeds |
AX6000 5 GHz: 4804 Mbps (802.11ax, HE160) 2.4 GHz: 1148 Mbps (802.11ax) |
|
| Wi-Fi Range |
4 Bedroom Houses 8× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission |
|
| Wi-Fi Capacity |
Very High Dual-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 8 Streams Connect your devices to more bandwidth |
|
| Working Modes |
Router Mode Access Point Mode |
|
| HARDWARE |
||
|---|---|---|
| Processor |
1.8 GHz 64 Bit Quad-Core CPU |
|
| Ethernet Ports |
1× 2.5 Gbps WAN Port 8× Gigabit LAN Ports Static Link Aggregation (LAG) available with 2× LAN ports |
|
| USB Support |
1× USB-C 3.0 Port 1× USB-A 3.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server |
|
| Buttons |
Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
|
| Power |
12 V ⎓ 4 A |
|
| Dimensions (W x D x H) | 10.3 x 10.3 x 2.4 in (261.2 x 261.2 x 60.2 mm) | |
| SECURITY |
||
|---|---|---|
| Wi-Fi Encryption |
WPA WPA2 WPA3 |
|
| Networking Security |
SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeCare™ Antivirus Malicious Site Checker Port Intrusion Prevention Infected Device Isolation Notification and Log |
|
| Guest Network |
1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
|
| VPN Server |
OpenVPN PPTP |
|
| SOFTWARE |
||
|---|---|---|
| Protocols |
IPv4 IPv6 |
|
| Service Kits | HomeCare™ | |
| OneMesh |
OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
|
| Parental Controls |
HomeCare™ Parental Controls Custom Profiles Content Filtering App Block URL Filtering Time Limit Time Schedule (Bedtime) Log Insight |
|
| WAN Types |
Dynamic IP Static IP PPPoE PPTP L2TP |
|
| Quality of Service |
QoS by Device HomeCare™ QoS QoS by Application |
|
| Cloud Service | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
|
| NAT Forwarding |
Port Forwarding Port Triggering DMZ UPnP |
|
| IPTV | GMP Proxy IGMP Snooping Bridge Tag VLAN |
|
| DHCP | Address Reservation DHCP Client List Server |
|
| DDNS | TP-Link NO-IP DynDNS |
|
| Management | Tether App Webpage |
|
| GENERAL |
||
|---|---|---|
| Certification | FCC, CE, RoHS | |
| Package Contents |
Wi-Fi Router Archer AX6000 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
|
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
Installation Information
How to setup TP-Link Archer AX6000
Quick Tips - How to Share Your WiFi
What should I do if I cannot access the internet? - Using a cable modem and a TP-Link router
What's in the Box
- (1) - Wireless Router
- (1) - Power Adapter
- (1) - RJ45 Ethernet Cable
- (1) - Quick Installation Guide
