Description

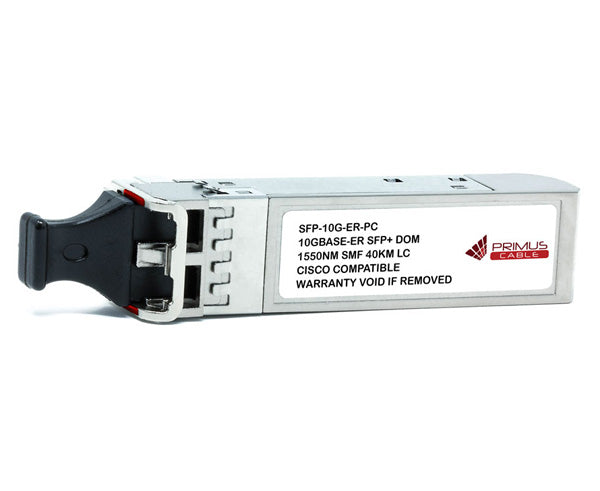

10G SFP Module, 1550 nm, Up to 40km Range
This SFP module is fully compatible with Cisco switching devices, ensuring optimal performance. Built on the 10G Ethernet IEEE 802.3ae standard, it also meets the SFF-8431 SFP Multi-source Agreement (MSA) specifications. Designed for long-distance data transmission, this module is intended for multimode fiber and operates at a nominal wavelength of 1550 nm, delivering reliable performance over distances of up to 40 km.
Features
Features
- Up to 10.7 GBd bi-directional data links
- Hot-pluggable SFP+ footprint
- 1550nm EML laser transmitter
- Duplex LC connector
- Built-in digital diagnostic function
- Up to 40km over single-mode fiber
- Single power supply 3.3v
- Operating temperature ranges from 0°C to 70°C
Specification
Specification
| Compatible OEM | Cisco Compatible |
| Form Factor | SFP+ |
| Max Data Rate | 10GbE |
| Wavelength | 1550nm |
| Max Cable Distance | 40KM over SMF |
| Connector | 1 X LC Duplex |
| DOM Support | YES |
| Power Supply | 3.3v |
| Operational Temperature Range | 0 to +70 C |
