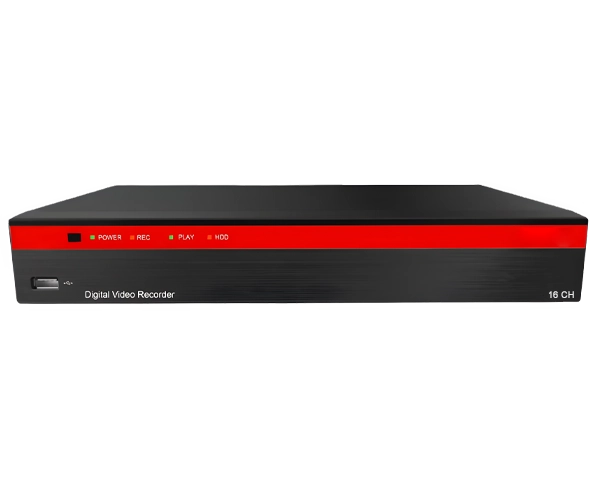

Hybrid DVR, 16ch Analog x 8ch IP, 5MP, 2 SATA Hard Drive Bay, up to 16TB
Hybrid DVR, 16ch Analog x 8ch IP, 5MP, 2 SATA Hard Drive Bay, up to 16TB
BY Primus Cable
Regular price
$932.00 USD
Regular price
Sale price
$932.00 USD
Unit price
/
per
SKU: SKU: DVR-7227-168
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full details*Requires a PoE Switch for IP Cameras
Description
Features
Specifications
What's in the Box
Description
16 Channel, Analog/IP Hybrid DVR Recorder, H.264 Compression, 5.0MP with up to 4K Resolution Output
The 16-channel analog/IP hybrid DVR recorder delivers stunning 720p/1080p HD video recording in an analog format making it a great option for home or business security systems. The SATA interface provides backup and high-speed connection for external hard drive storage. The DVR has 2x SATA HDD to support up to 24TB (12TB per bay). This system works seamlessly with your mobile surveillance (iPhone/Android) when you are away from home or business.
Features
- H.264 Real-time compression
- 16-Channel DVR
- Analog/IP Hybrid
- 5MP Resolution
- Control over Coax
- Up to 4K Resolution Output
- 4-Channel Audio In/1-Channel Audio Out
- 2x SATA, Up to 24TB (12TB per bay)
- HDMI and VGA outputs
- Mobile surveillance supported
- High image quality at the resolution of 720p/1080p
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| VIDEO COMPRESSION | H.264 |
| VIDEO SYSTEM | NTSC/PAL |
| OPERATING SYSTEM | LINUX (EMBEDDED) |
| ANALOG VIDEO INPUT/OUTPUT | 16CH INPUT / VGA & HDMI OUTPUT |
| IP VIDEO INPUT | UP TO 8 CH |
| COMPOSITE VIDEO INPUT | UP TO 16 CH |
| AUDIO INPUT / OUTPUT | 4CH INPUTS / 1 CH OUTPUT (RCA) |
| IP-RECORDING BANDWIDTH | 64MBPS~96MBPS |
| MAX. OUTPUT BANDWIDTH | 128MBPS |
| MAX. DECODE PERFORMANCE | 5MP: 176FPS / 4MP: 240FPS / 1080P: 480FPS |
| RECORDING MODE | CONTINUOUS / MANUAL / MOTION DETECT |
| SYNCHRONOUS PLAYBACK | 16 CH |
| NETWORK TYPE | TCP/IP, P2P, 1 SATA HDD, UP TO 8TB |
| HDD INTERFACE | 2 X SATA, UP TO 8TB PER BAY |
| USB | 2 X USB (FOR MOUSE AND BACKUP) |
| SENSOR & ALARM I/O | NO |
| PTZ CONTROL | YES (RS485) CONTROL OVER COAX |
| MOBILE SURVEILLANCE | SUPPORTS MOBILE PHONES: IPHONE/ANDROID |
| VGA/HDMI OUTPUT | 1280*1024, 1440*900, 1280*720, 1920*1080, 1680*1050, 1600*1200, 1920*1200, 2560*1440, 3840*2160 |
| POWER SUPPLY | DC12V/2A |
| DIMENSIONAL | 300 X 227 X 53MM |
| WORKING TEMPERATURE | -10°C~+55°C |
| WORKING HUMIDITY | 10%~90% |
What's in the Box
- Qty 1 - DVR Recorder, 16-Channel 5MP HD over Coax / IP Hybrid, H.264 Compression, 1080p, up to 16TB HD
