LED, LCD & Plasma Dual Flat TV Ceiling Mount 32" to 55" Tilt, Black

$75.99
SKU: PP6-2603-CM
Various lead times may apply to this product. Please contact us for more details.

Description

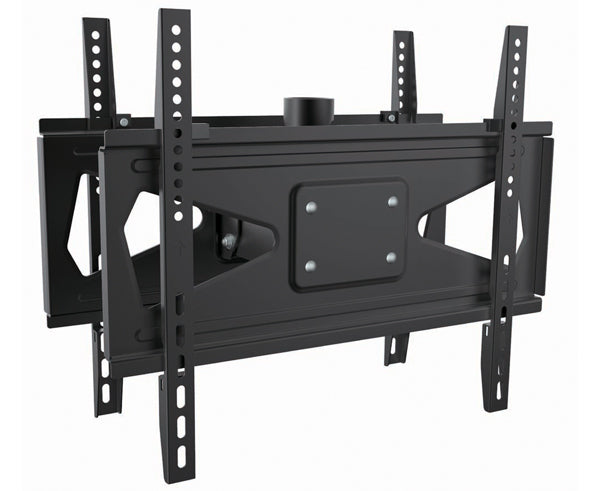

LED, LCD & Plasma Dual Flat TV Ceiling Mount 32" to 55" Tilt, Black

This ceiling bracket is designed to mount two LCD or LED TVs back to back on 1-1/2" NPT (National Pipe Thread) standard pipe. Applicable screen size is 32" to 55", and it can be tilted down to 12 degrees.

Features

Features

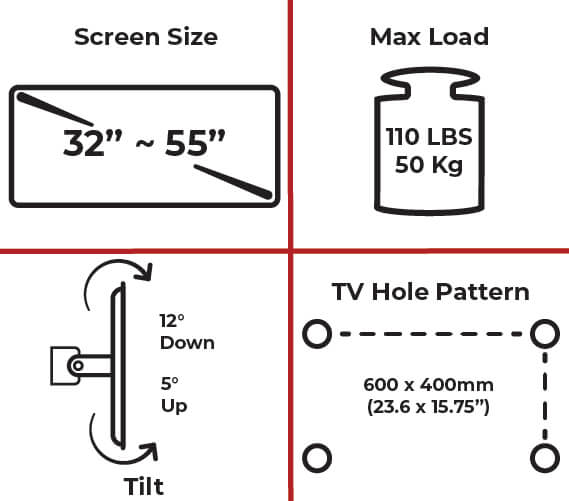

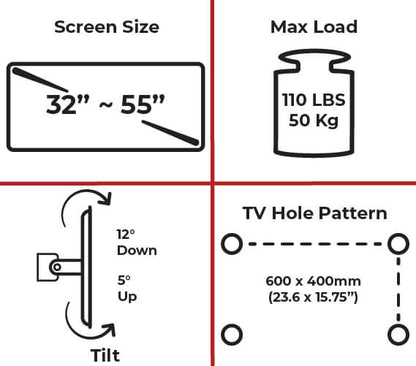

  • For 32 to 55" screen size LCD or LED TV
  • Designed for 1.5" NPT pipe mount
  • Tilt angle: 5 degree up ~ +12 degree down
  • Max Load Capacity: 110lbs (50kg)
  • Universal mounting pattern
  • VESA hole pitch : Max: : 400 x 400mm (15.75" x 15.75")
  • Design and construction: Solid toughened steel construction
  • Durable scratch resistant finish in black
  • Cable management port
  • Mounting hardware included
  • RoHS compliant

Note: Supported screen size is provided as a reference only. Please check bracket dimensions above, and make sure overall bracket size does not exceed TV.

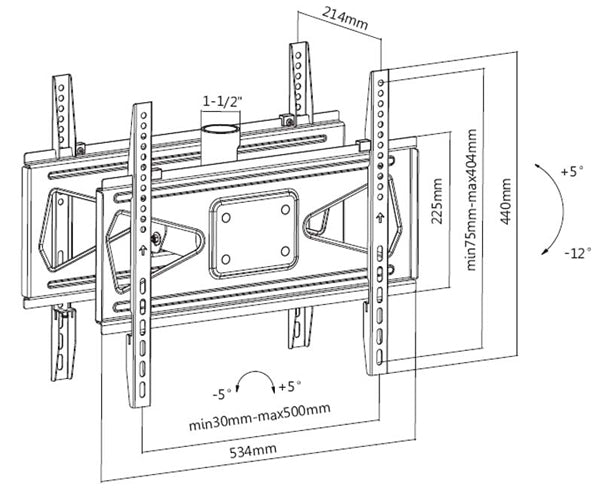

Specifications

Specifications

502868BK_Specs

Additional Information

Installation Instructions
