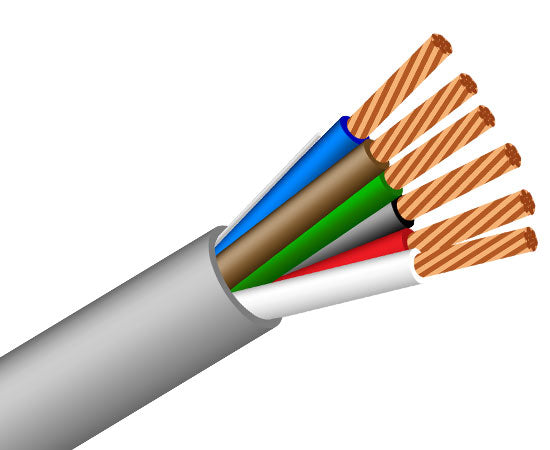

Security Alarm Cable - Riser (CMR) - 22/6 CL3R, Stranded (7 Strand), Unshielded, 1000ft, Gray

$166.69
SKU: ASC-1931/226
Various lead times may apply to this product. Please contact us for more details.
ROHS Compliant logo ETL Verified logo Made in USA

Description

22/6 Riser Security Alarm Cable (7 Strand) CMR Rated Unshielded

This 22/6 Riser Security Alarm Cable has six 22 gauge 7 stranded copper conductors. It is designed for security systems but can also be used for intercom systems, power limited controls and sound/audio systems. It is unshielded with a CL3R/FPLR rated gray colored jacket and is made in the USA. This 22/6 riser security cable is supplied in increments of 1,000 ft.

Features

Features

  • 22 AWG 6 conductors
  • 7 stranded bare copper conductors
  • PVC insulation
  • Unshielded
  • CL3R/FPLR rated PVC jacket with rip cord
  • UL listed
  • ETL listed
  • Sequential footage marking
  • RoHS compliant
  • NEC articles
    • 22-16 AWG: FPLR/760, CMR/800, CL3R, CL2R/725
    • 14-12 AWG: FPLR, CL3R

Residential or commercial applications:

  • Security systems
  • Intercom systems
  • Sound/audio systems
  • Power-limited controls

Specifications

Specifications

Physical Construction

Inner Conductor Stranded Bare Copper
Conductor Size 22 AWG
Insulation PVC
Nominal OD 4.5mm
Outer Jacket Diameter .38mm
Jacket Low Smoke PVC
Jacket Color Gray
Number of Strands 7
Inner Conductor Diameter 1.2mm

Electrical Characteristcs

Temperature 75°C
Voltage Rating 300V
Center Resistance 21.20 (Ω/km)

Additional Information

Standards ETL | RoHS | CMR
Applications Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls
Jacket Printing 22 AWG 6C (ETL) 725/CL3R 800/CMR (VID:###) XXXX FT
Important Notes The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.

Quick Reference Guide

Quick Reference Guide

PART NO.

PRODUCT DESCRIPTION

*(ASC-) Riser CMR Unshielded Alarm and Security Cable

ASC-1928/222/71 22 AWG / 2 Conductor (7 Strands) Unshielded
ASC-4737/224 22 AWG / 4 Conductor (7 Strands) Unshielded
ASC-1931/226 22 AWG / 6 Conductor (7 Strands) Unshielded
ASC-1881/182 18 AWG / 2 Conductor (7 Strands) Unshielded
ASC-2928/184 18 AWG / 4 Conductor (7 Strands) Unshielded
ASC-1889/186 18 AWG / 6 Conductor (7 Strands) Unshielded
ASC-1890/188 18 AWG / 8 Conductor (7 Strands) Unshielded
ASC-1893/162 16 AWG / 2 Conductor (19 Strands) Unshielded
ASC-1895/164 16 AWG / 4 Conductor (19 Strands) Unshielded
ASC-1896/142 14 AWG / 2 Conductor (19 Strands) Unshielded

*(ASC2-) Riser CMR Shielded Alarm and Security Cable

ASC2-2903/222 22 AWG / 2 Conductor (7 Strands) Shielded
ASC2-326/223 22 AWG / 3 Conductor (7 Strands) Shielded
ASC2-3236/224 22 AWG / 4 Conductor (7 Strands) Shielded
ASC2-2904/226 22 AWG / 6 Conductor (7 Strands) Shielded
ASC2-3237/228 22 AWG / 8 Conductor (7 Strands) Shielded
ASC2-5522/202 20 AWG / 2 Conductor (7 Strands) Shielded
ASC2-2895/182 18 AWG / 2 Conductor (7 Strands) Shielded
ASC2-327/183 18 AWG / 3 Conductor (7 Strands) Shielded
ASC2-328/184 18 AWG / 4 Conductor (7 Strands) Shielded
ASC2-329/186 18 AWG / 6 Conductor (7 Strands) Shielded
ASC2-330/188 18 AWG / 8 Conductor (7 Strands) Shielded
ASC2-331/162 16 AWG / 2 Conductor (19 Strands) Shielded
ASC2-332/163 16 AWG / 3 Conductor (19 Strands) Shielded
ASC2-3036/164 16 AWG / 4 Conductor (19 Strands) Shielded

*(ASC1-) Plenum CMP Unshielded Alarm and Security Cable

ASC1-1004/222 22 AWG / 2 Conductor (7 Strands) Unshielded
ASC1-2664/224 22 AWG / 4 Conductor (7 Strands) Unshielded
ASC1-1006/226 22 AWG / 6 Conductor (7 Strands) Unshielded
ASC1-2772/182 18 AWG / 2 Conductor (7 Strands) Unshielded
ASC1-1841/1810 18 AWG / 10 Conductor (7 Strands) Unshielded
ASC1-5013/1812 18 AWG / 12 Conductor (7 Strands) Unshielded
ASC1-2905/162 16 AWG / 2 Conductor (19 Strands) Unshielded
ASC1-1843/164 16 AWG / 4 Conductor (19 Strands) Unshielded

*(ASC3-) Plenum CMP Shielded Alarm and Security Cable

ASC3-458/222 22 AWG / 2 Conductor (7 Strands) Shielded
ASC3-460/224 22 AWG / 4 Conductor (7 Strands) Shielded
ASC3-461/226 22 AWG / 6 Conductor (7 Strands) Shielded
ASC3-474/182 18 AWG / 2 Conductor (7 Strands) Shielded
ASC3-477/186 18 AWG / 6 Conductor (7 Strands) Shielded
ASC3-478/188 18 AWG / 8 Conductor (7 Strands) Shielded

What's in the Box

What's in the Box

  • Security Alarm Cable - Riser (CMR) - 22/6 AWG, CL2R, Stranded (7 Strand), Unshielded, Gray
  • 1000 Ft
