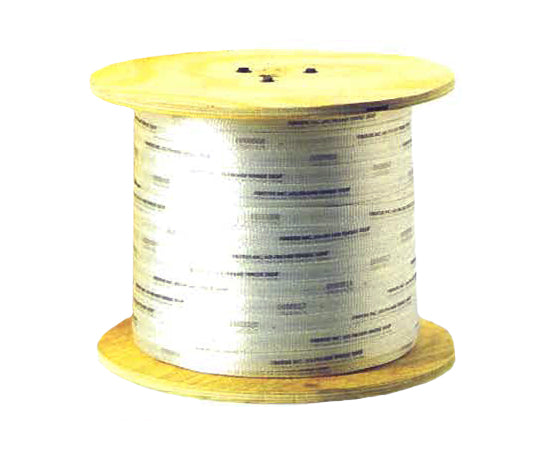

Tracer Tape Woven Polyester 22AWG Locater Wire, Price Per Foot - 1250, 1800, 2500 Pound Tensile Strength

$0.13
SKU: WPT1250
Tensile Strength
Various lead times may apply to this product. Please contact us for more details.
Made in USA

Minimum order quantity is 3000 feet. Price per foot.

Description

Tracer Tape Made From Woven Polyester and 22 Gauge Wire.

When it comes to buried duct, our Tracer Tape is the expert's choice. Tracer Tape incorporates a solid corrosion resistant copper conductor into our industry leading Tracer Tape products. The result is a multi-functional product used for locating, pulling and measuring your duct and fiber. Simply direct a radio signal on to the Tracer Tape and follow conventional locating procedures.

Since our Pull Tape products have the lowest shrink factors in the industry, Tracer Tape is extrusion friendly and can be pre-inserted by the duct manufacturer or blown into the duct at the job site. All Tracer Tapes are furnished with printed sequential footage markings for accurate measurements and factory pre-lubricated for easy pulling with no duct burn-through as with rope products.

From the champion pedigree of our store, Tracer Tape provides tomorrow's technology today by locating, measuring, and pulling with a single product.

Features

Features

  • Pull, measure and locate with one product.
  • Low coefficient of friction value minimizes burn-through of duct.
  • Eliminates additional labor required for string, rope, winch line combination. One tape does it all.
  • Order continuous lengths from 3,000 feet to 100,000 feet to meet your requirements.
  • Minimizes puckering in the extrusion process - less footage required for innerduct runs.
  • Special silicone lubricant which is compatible with innerduct lubricants and greatly minimizes the possibility of burn-through in both PVC and HDPE ducts due to low coefficient of friction.
  • Easily blown through conduit or duct and the high tensile strength ratings permit the use of a single product versus the traditional string, rope, or winch line pulling process.

Specifications

Specifications

Tracer Tape Specifications

Tensile Strength 1250 lb / 567 kg
1800 lb / 816 kg
2500 lb / 1134 kg
Construction Woven

Wire Conductor Specifications

AWG (Gauge) 22 Solid Bare Copper
Diameter 0.0253 Normal
Maximum Voltage 300 V
Tensile Strength 34,000 lb/in
Resistivity* 16.2 OHMS / mft

Resistance values based on copper of 100% conductivity at 20°C

Wire Insulation Specifications

Type High density polyethylene (HDPE)
Color Orange
Thickness 0.010" Nominal
Dielectric Constant 2.34 @ 1 MHz
