CAT6/A ezEX 44 Shielded RJ45 Connector - OD Under 7.75mm

$60.24
SKU: CN1-7863-Z6S
Package Quantity
Made in USA

Description

Former Part Number: CN1-6758-Z6S

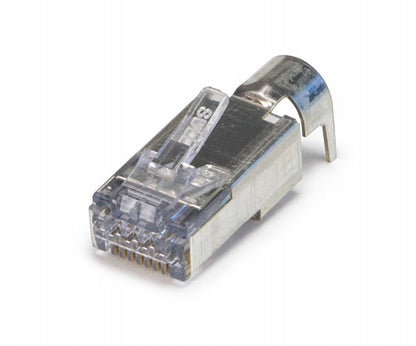

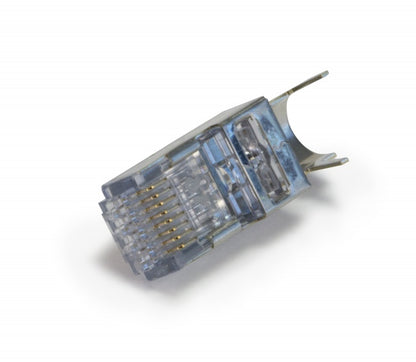

CAT6/A ezEX 44 Shielded RJ45 Connector

Choose the Right RJ45 Connector

The American Made ezEX™44 RJ45® Shielded CAT6, CAT6A Connectors provides an option for terminating larger diameter twisted pair cables with insulation diameter sizes ranging from 0.039-0.044." It's designed to handle larger sized conductors while maintaining the simplicity of the EZ™ pass through design. This facilitates verification of wiring sequence before terminating. It has a high/low staggered design to accommodate larger diameter conductors while maximizing performance. It has a one-piece design, no bars or liners are required. Compatible with both solid and stranded 24 - 22 AWG cable.

Standard RJ45 Issues

The most common issue with traditional pass-through connectors is the incomplete trimming of conductors, leading to voltage shorts & crosstalk. This gets worse as your crimp tool's blade dulls with use.

What Makes ezEX Different?

ezEX-RJ45 connectors feature a molded load bar ensuring conductors are completely trimmed off during the crimping process.

Additionally, ezEX-RJ45 connectors feature a patented hi-lo staggered wire path reducing near end crosstalk and allowing for larger diameter conductors.

ezEX-RJ45 connectors are available in a variety of constructions, accommodating both shielded and unshielded cable up to 0.290" diameter & 24-22AWG conductor sizes.

Looking For RJ45 Accessories?

Please consider us for any of your other networking needs. We've got bulk cable, many styles of keystone jacks, and other items. Keep in mind, you're going to need a crimper, and we've got em.

The EXO Crimp Frame with EXO-EX Die is the original, patented RJ45 crimp system featuring a swappable cassette for either ezEX-RJ45 or EZ-RJ45 pass-through connectors.

Features

Features

  • For CAT6 and CAT6A Ethernet Cable with Insulation Diameters Ranging From .039-.044", .99mm - 1.11mm
  • Works with Shielded Solid and Stranded 24 - 22 AWG Cable

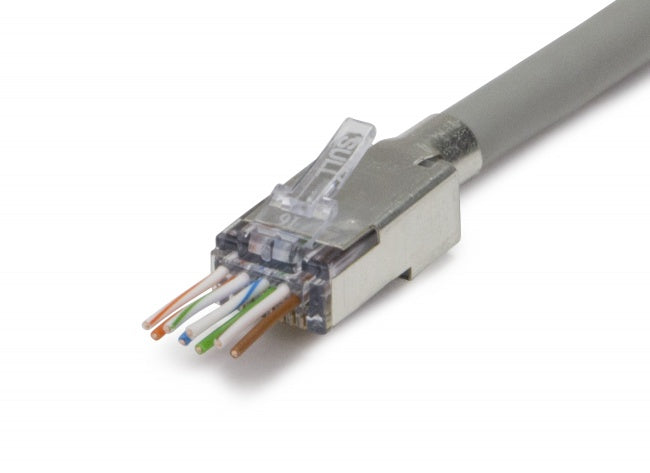

  • Pass Through Design for Easy Verification of Wiring Sequence
  • One-piece Design - no Bars or Liners Required
  • Hi-Lo Stagger to Isolate Each Conductor
  • Rated for up to 10 Gigabit Performance
  • RoHS 2, UL, TIA, TAA, & FCC Compliant
  • Made in the USA

Specifications

Specifications

What’s In The Box

What’s In The Box

  • Qty 1 (25 Pack, 50 Pack, and/or 100 Pack)- ezEX™44 Shielded RJ45 Connector for CAT6 & CAT6A Cable
