Description

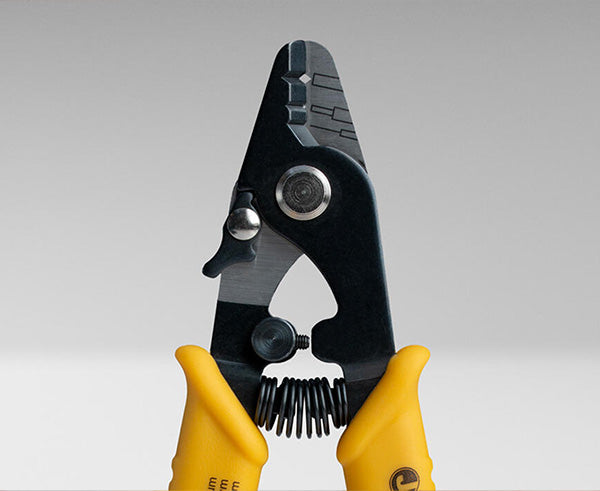

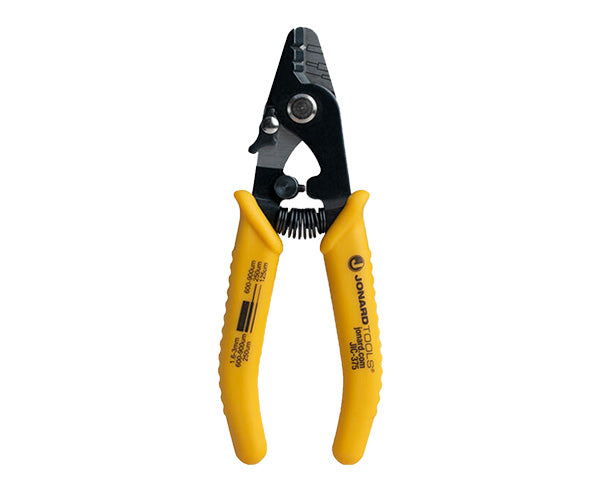

Fiber Optic Stripper, Three Hole

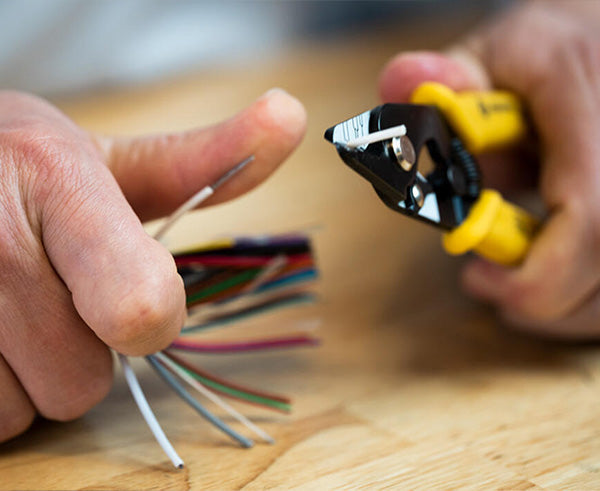

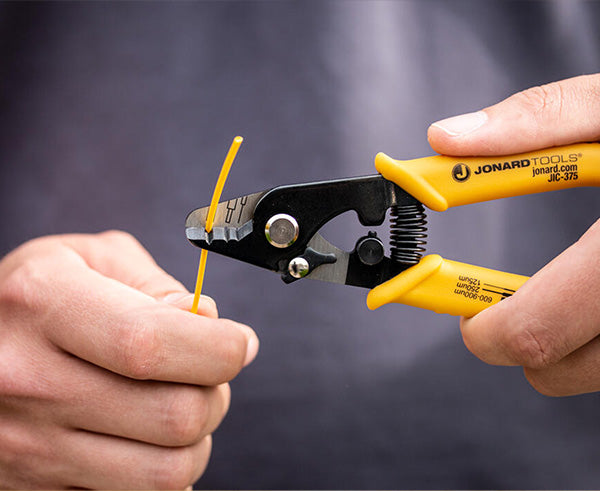

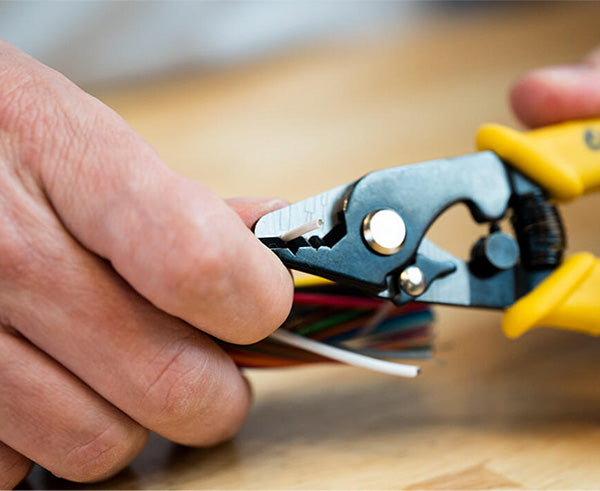

The Jonard Tools JIC-375 Three Hole Fiber Optic Stripper performs all common fiber stripping functions.
Features

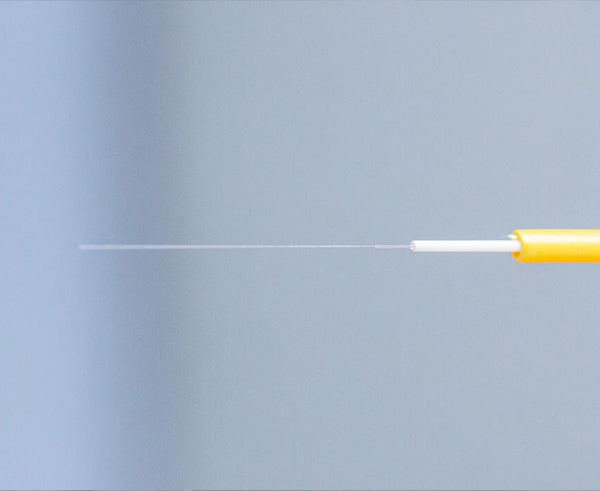

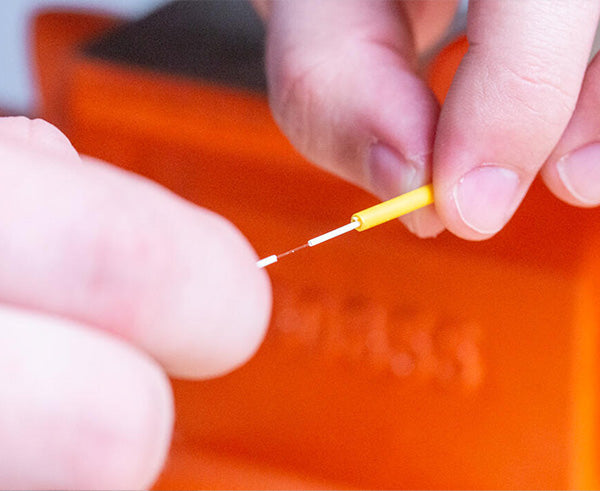

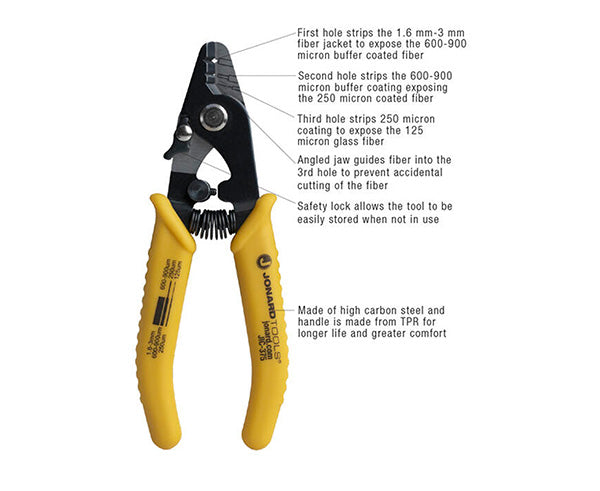

- Strips the 1.6 mm-3.0 mm fiber cable jacket, 600-900 micron buffer coating, and 250 micron acrylate coating to expose the 125 micron glass fiber

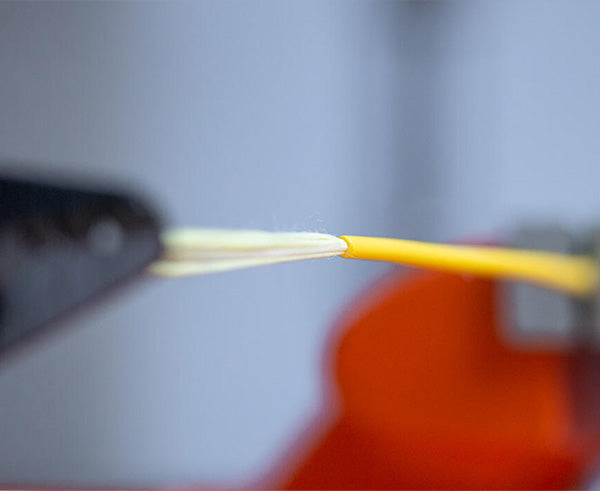

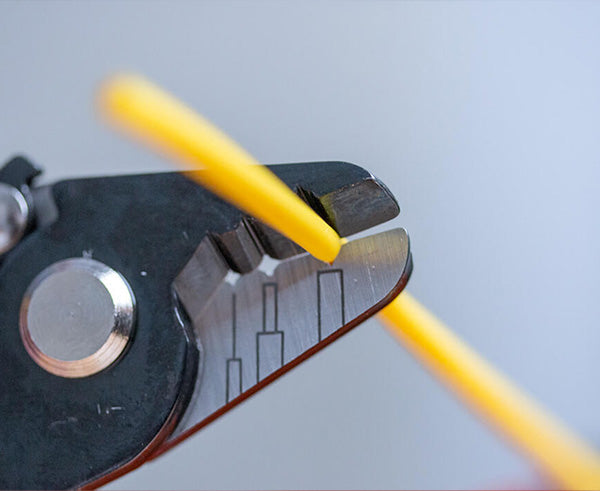

- First hole strips the 1.6 mm-3.0 mm jacket exposing the optical fiber and Kevlar strength members
- Second hole strips the buffer coating, exposing the acrylate coating on the optical fiber

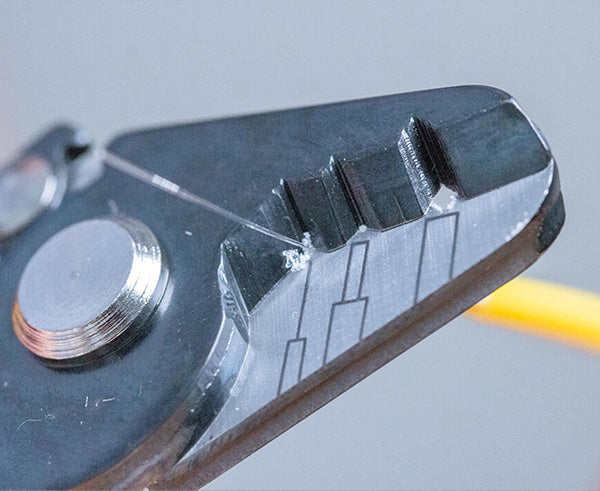

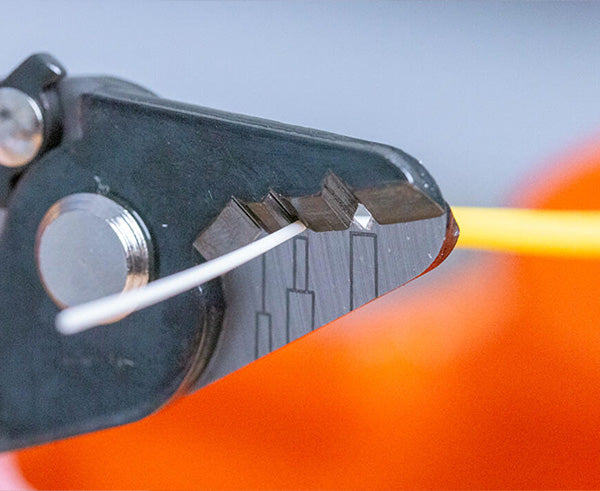

- Third hole strips the acrylate coating exposing the glass fiber without nicking or scratching the fiber
- Angled jaw guides fiber into the 3rd hole to prevent accidental cutting of the fiber

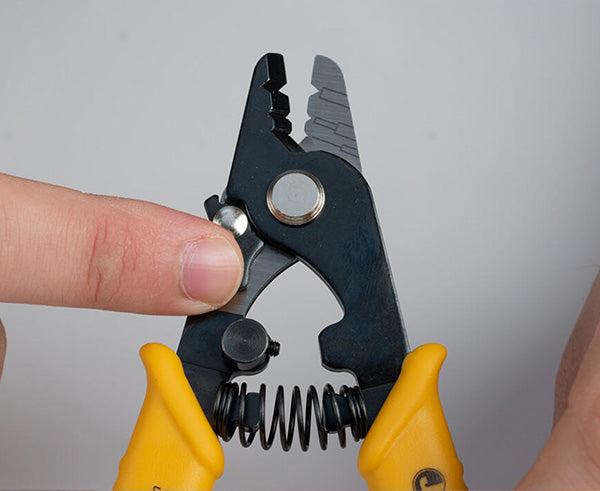

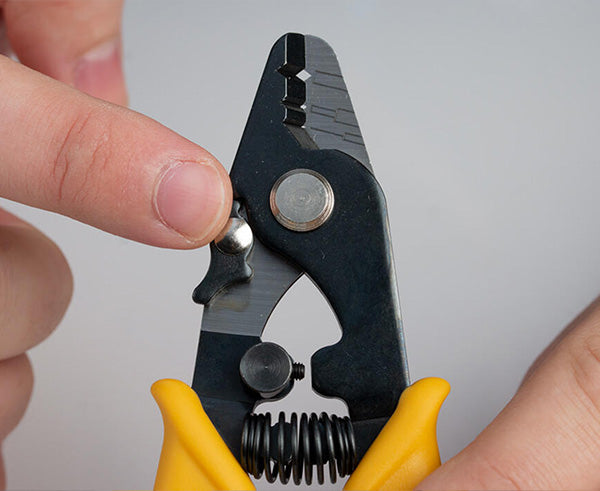

- Safety lock allows the tool to be easily stored when not in use
- Tool is made of strong high carbon steel and handle is made of TPR (thermoplastic rubber) for high durability and greater comfort
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| TOOL SPECIFICATIONS | |
| Cut Type | Strip |
| Cable Type | Jacket, Buffer, Fiber Optic |
| Strip Diameter | 250 micron, 600-900 micron, 1.6 mm - 3.0 mm |
| PHYSICAL CHARACTERISTICS | |
| Handle Grip Material | TPR (Thermoplastic Rubber) |
| Handle Color | Yellow |
| Length | 6” (152 mm) |
| Weight | 0.309 lb (140 g) |
| IDENTIFICATION | |
| UPC # | 811490010949 |
Additional Information
| Jonard Tools JIC-375 Fiber Optic Stripper Three Hole |
|---|
What’s In The Box
What’s In The Box
- Qty 1 - Fiber Optic Stripper, Three Hole
