Description

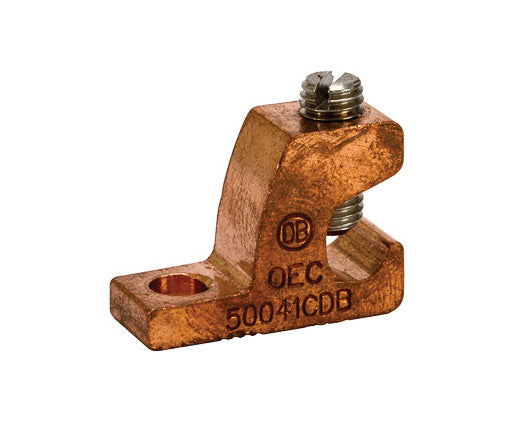

Grounding Connector Cu Lay-In 4-14 DB Rated
A full Grounding line covering all applications, featuring heavy duty, direct burial clamps, and range taking rod clamps. Primus Cables’ Grounding line also includes clamps with adapters, clamps for water pipe, rigid conduit or rebar, intersystem bonding connectors and clamps for parallel 90, 2, and 3 conductor copper cable. With a lay-in feature for the ultimate flexibility, Primus Cables’ GLC-DB Direct Burial ground clamps are a perfect fit for continuous loop grounding of solar panels.
Features
- Lay-in lugs are used for grounding or in continuous loop bonding and are available in several variations, depending on the application. GLC-4
- Copper body with a steel screw and is used for general grounding applications with copper wire. GLC-4 DB/GLC-4 DBP
- Copper bodies with stainless steel screws, are UL Listed for direct burial in earth or concrete with copper wire.
Specifications
| Part No. | Certification | Material | Wire Range | Use | Length (in.) | Width (in.) | Height (in.) |
| NPNB-GLC-4DB | cULus | Copper With Stainless Steel Screws | 4-14 AWG | Direct Burial For CU Wire Only | 1.312 | 0.396 | 0.908 |

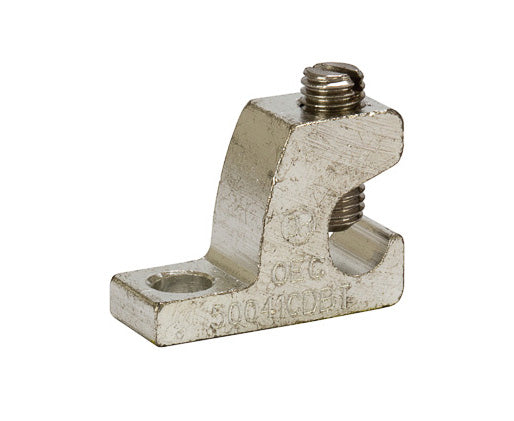

| NPNB-GLC-4DBP | cULus | Tin-plated Copper With Stainless Steel Screws | 4-14 AWG | Direct Burial For CU Wire Only | 1.312 | 0.396 | 0.908 |
- cULus Listed 467 Grounding & Bonding.
- UL467 Listed, Grounding & Bonding.
- *UL486 A Listed wire connector.
- Temperature Rating: 90 °C.
- Voltage: 600V.
What's in the box?
What's in the box?
-
Qty 1 - Ground Connector Cu Lay-In 4-14 DB Rated
