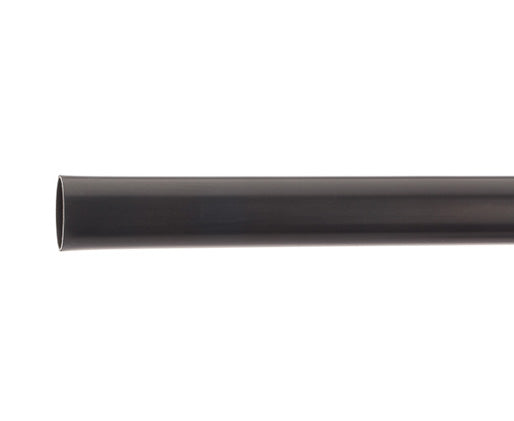

Heavy Wall Heat Shrink for Direct Burial and Submersible

Heavy Wall Heat Shrink for Direct Burial and Submersible

by Primus Cable
$19.06
SKU: HS-4781-6
Heat Shrink
Various lead times may apply to this product. Please contact us for more details.

These products are all Made to Order

Which means they are non-cancelable and non-refundable

Description

Heavy Wall Heat Shrink for Direct Burial & Submersible

Made of specially formulated polyolefin irradiated and thermally stabilized to give the material “elastic memory”. When a proper amount of heat is directly applied to the shrink sleeve, it will permanently shrink to its original unexpanded diameter tightly cover and “mold” itself into irregular shapes.

Features

  • Made of specially formulated polyolefin irradiated and thermally stabilized to give the material “elastic memory”.
  • When a proper amount of heat is directly applied to the shrink sleeve, it will permanently shrink to its original unexpanded diameter tightly cover and “mold” itself into irregular shapes.
  • The interior of the sleeve is coated with an adhesive that assures a watertight seal after shrinking.
  • For use on standard poly- or elastomeric-insulated/jacketed cables or lead-jacketed cables, which may include aluminum or steel armoring.
  • RUS accepted for use as a secondary tap or splice cover. May be used for jacket repair on cables up to 35 kV.

            Specifications

             Part No. Sealable Wire Range Length

            (General Use Range)
            Recovered | Expanded

            		 MAX. Connector O.D. (IN.) MIN. Seal Length Per Side (IN.)
            NPNB-HWHS14-6-6 14-6 AWG 6 0.130 | 0.390 0.290 1.500
            NPNB-HWHS14-6-12 14-6 AWG 12 0.130 | 0.390 0.290 1.500
            NPNB-HWHS14-6-48 14-6 AWG 48 0.130 | 0.390 0.290 1.500
            NPNB-HWHS8-2-6 8-2 AWG 6 0.170 | 0.550 0.410 2.000
            NPNB-HWHS8-2-12 8-2 AWG 12 0.170 | 0.550 0.410 2.000
            NPNB-HWHS8-2-48 8-2 AWG 48 0.170 | 0.550 0.410 2.000
            NPNB-HWHS6-40-4 6-4/0 AWG 4 0.250 | 0.860 0.690 2.000
            NPNB-HWHS6-40-6 6-4/0 AWG 6 0.250 | 0.860 0.690 2.000
            NPNB-HWHS6-40-9 6-4/0 AWG 9 0.250 | 0.860 0.690 2.000
            NPNB-HWHS6-40-12 6-4/0 AWG 12 0.250 | 0.860 0.690 2.000
            NPNB-HWHS6-40-48 6-4/0 AWG 48 0.250 | 0.860 0.690 2.000
            NPNB-HWHS2-500-4 2 AWG - 500 MCM 4 0.350 | 1.220 1.060 2.000
            NPNB-HWHS2-500-6 2 AWG - 500 MCM 6 0.350 | 1.220 1.060 2.000
            NPNB-HWHS2-500-8 2 AWG - 500 MCM 8 0.350 | 1.220 1.060 2.000
            NPNB-HWHS2-500-9 2 AWG - 500 MCM 9 0.350 | 1.220 1.060 2.000
            NPNB-HWHS2-500-12 2 AWG - 500 MCM 12 0.350 | 1.220 1.060 2.000
            NPNB-HWHS2-500-48 2 AWG - 500 MCM 48 0.350 | 1.220 1.060 2.000

                What's In The Box

                • Qty 1 pack - Heavy Wall Heat Shrink for Direct Burial & Submersible
