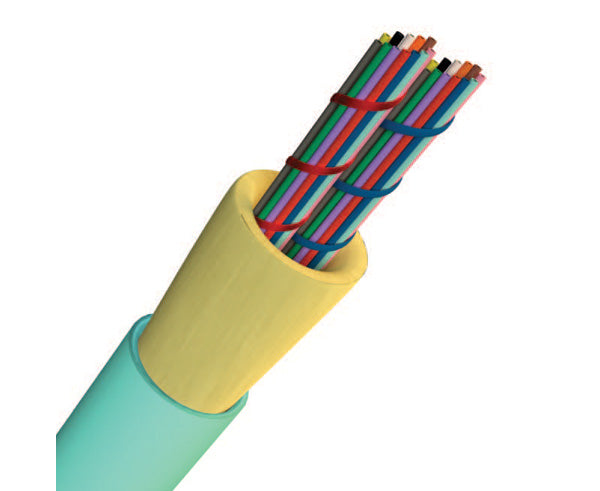

Interconnect Premise MicroCore®, Plenum Rated, 24 Corning ® ClearCurve ® OM4 fibers, 3.0 mm, RoHS, Colored Fiber, Aqua jacket

Interconnect Premise MicroCore®, Plenum Rated, 24 Corning ® ClearCurve ® OM4 fibers, 3.0 mm, RoHS, Colored Fiber, Aqua jacket color

by Primus Cable
$2.40
SKU: SP024C302C0B:ZZC-CRG

If you’re looking to purchase more than one spool then each spool needs to be entered into the cart as a separate line item. Input the length and then select Add to Cart for every individual spool needed.
This product has a minimum $50 associated cut fee applied to the shipping cost

Made in USA  RoHS Compliant Made with Corning Glass

(We do not offer credits or returns for this item.)

This fiber cable is priced per foot with a minimum order length of 50ft.

Note: This item must ship freight and requires a shipping quote. To request a shipping quote email us or call us.

If you would like to inquire about our custom fiber cable options such as terminated ends, or pulleyes please call

Description

Interconnet Premise MicroCore® Cable

Interconnect Premise MicroCore cables are designed for MTP terminations and meet the interconnect standards of Telcordia® GR-409. To minimize the cable’s diameter, multiple colored 250 μm fibers and aramid strands are packaged in a PVC or LSZH jacket. Simplex and Zipcord designs are available in a variety of fiber counts.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.

Features

Features

  • 8 to 72 fibers
  • 2.0 mm or 3.0 mm Outer Diameter for Round Boot 12-fiber MTP Cables
  • 3.0 mm or 3.8 mm Outer Diameter for Round Boot 24-fiber MTP Cables
  • 4.0 mm Outer Diameter for Round Boot 48-count MTP Cables

Applications

  • Building Interconnections
  • Data Centers and Central Offices
  • Anywhere MTP connections can be used
  • High-density Interconnects
  • 40 Gbit and 100 Gbit Ethernet Architecture

Specification

Additional Information

Multi-Mode cable commonly has a diameter in the 50-to-100 micron range (typical multimode fiber core diameters are 50 or 62.5 micrometers). Multimode fiber gives you high bandwidth at high speeds (10 to 100MBS - Gigabit to 275m to 2km) over medium distances. Light waves are dispersed into numerous paths, or modes, as they travel through the cable's core typically 850 or 1300nm. However, in long cable runs (greater than 3000 feet [914.4 meters), multiple paths of light can cause signal distortion at the receiving end, resulting in an unclear and incomplete data transmission so designers now call for single mode fiber in new applications using Gigabit and beyond.
