Mid Span Slit & Ring Tool (7.9 mm-11 mm)

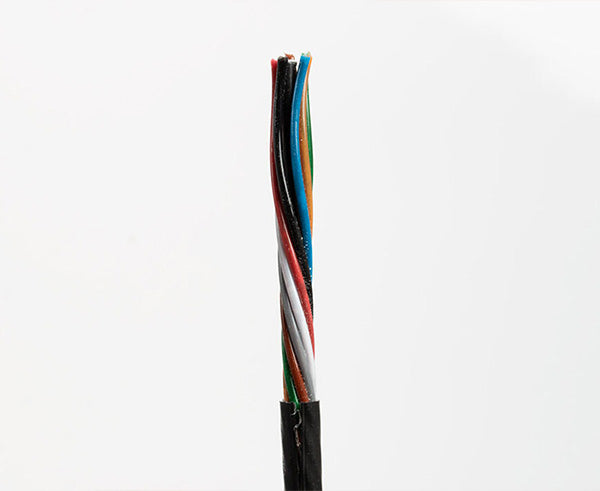

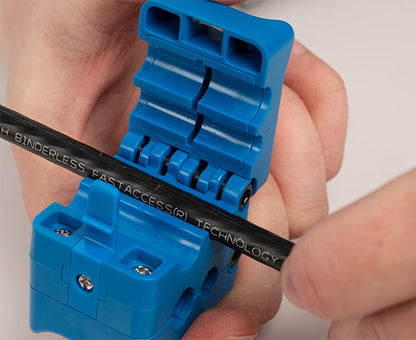

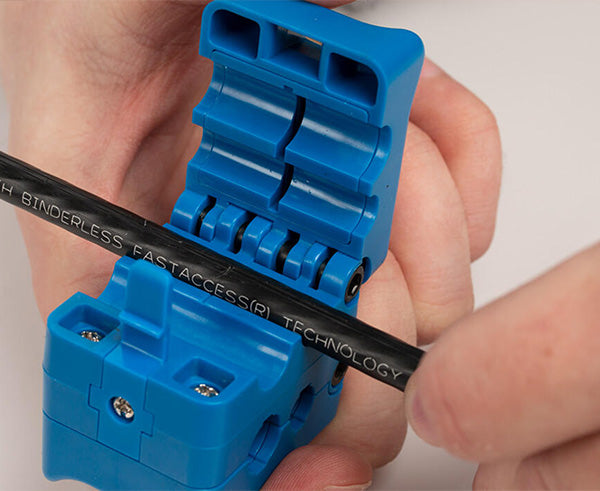

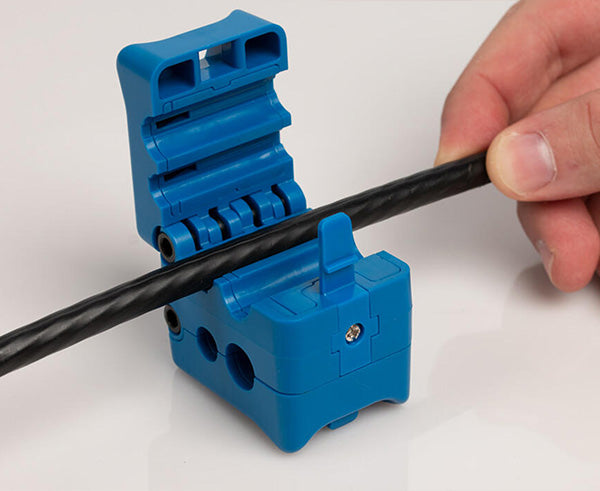

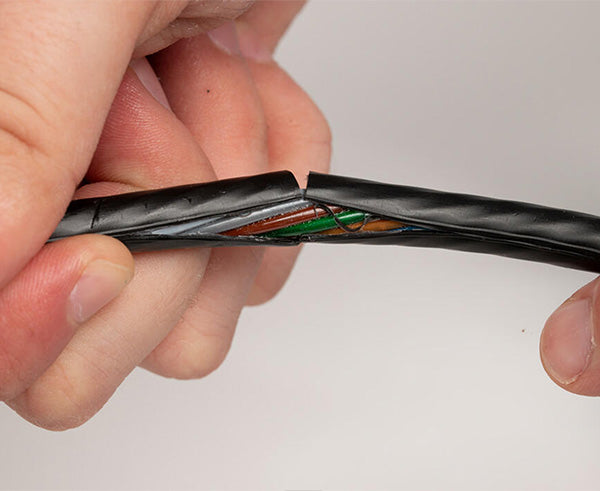

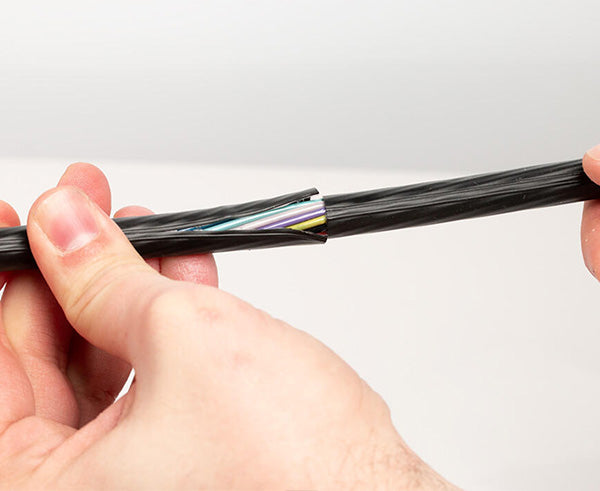

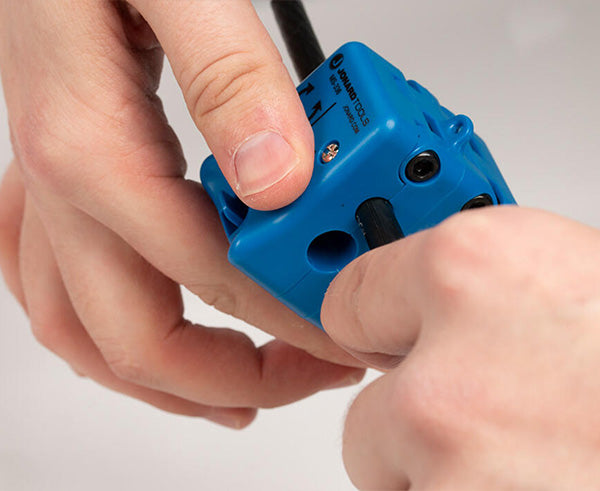

The PATENTED MS-336 Mid Span Slit and Ring Tool is designed to provide easy access to optical fibers in thin walled outer jacketed cables. The MS-336 is an extension of the MS-326 series tool targeting larger cables such as Cornings Minixtend HD 288 and 432 fiber count cables.
Features
Features

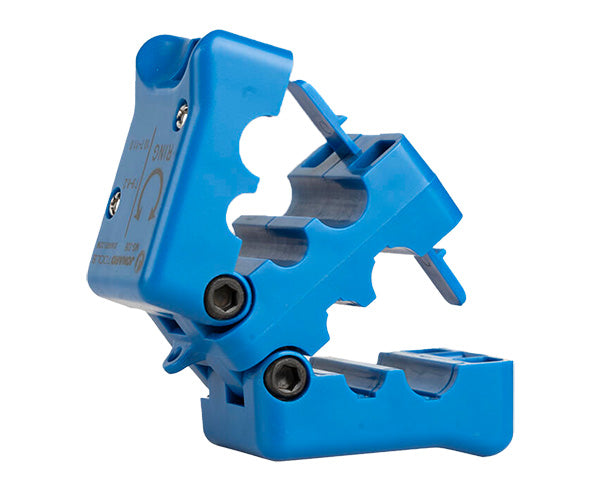

- Consists of 2 precision slitting grooves and 2 precision ring grooves ranging in sizes from 7.9-8.2 & 10.7-11 mm

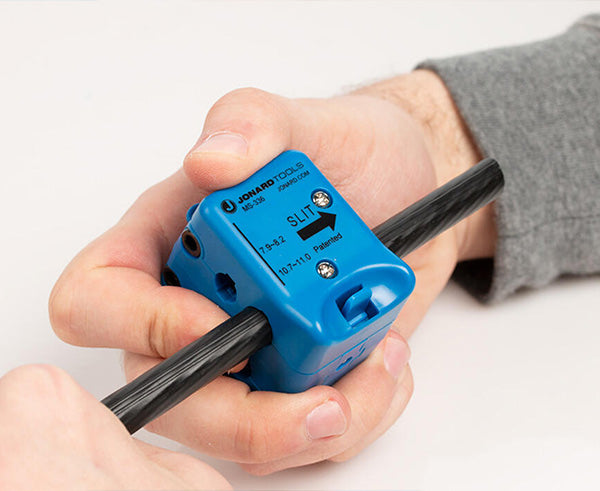

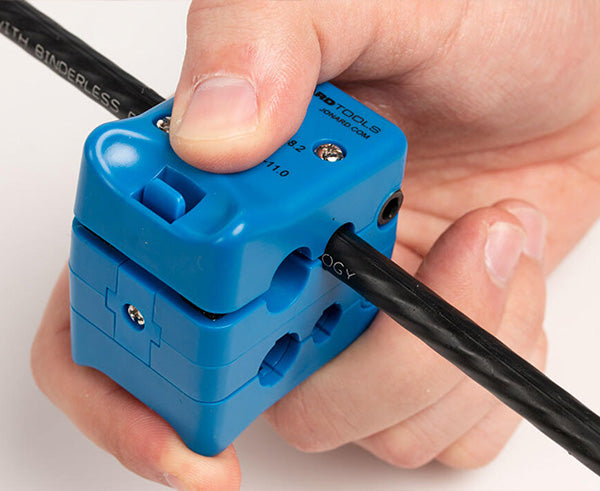

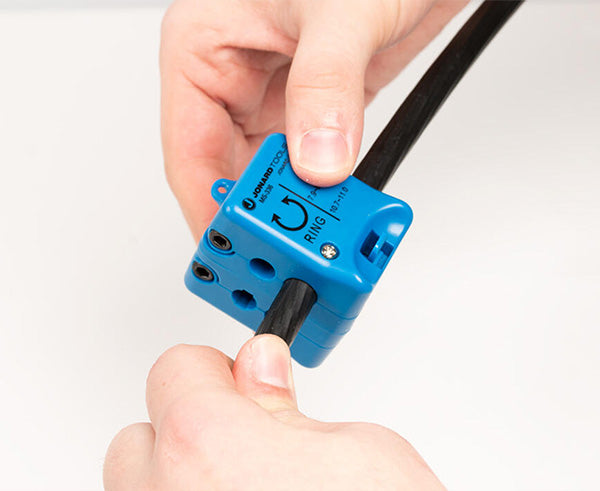

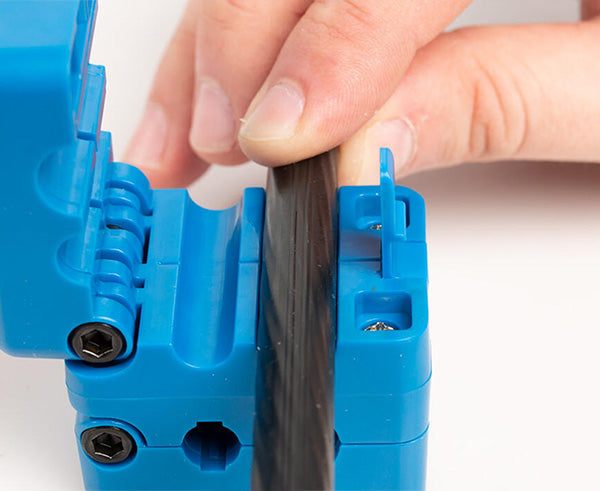

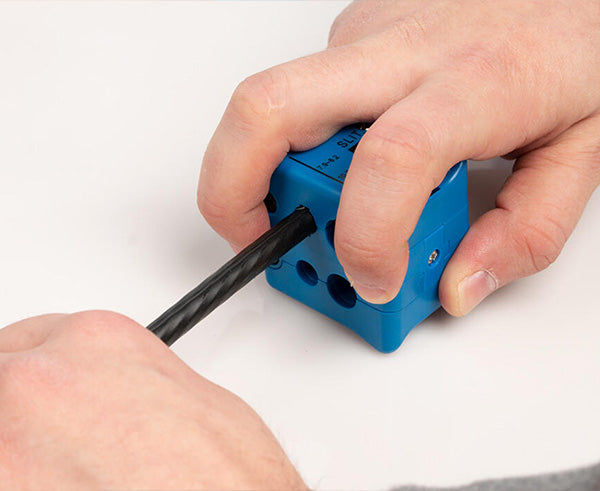

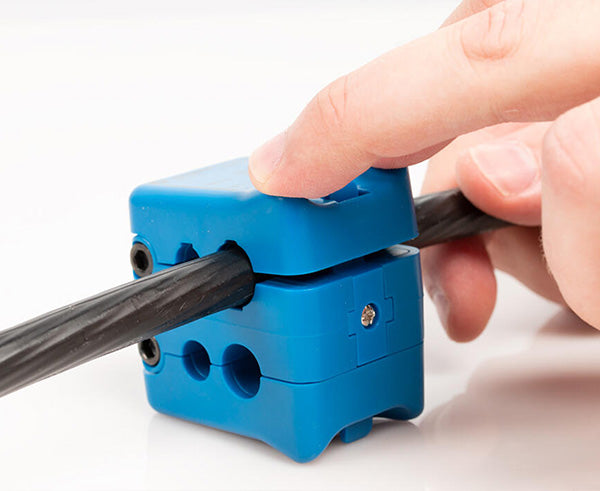

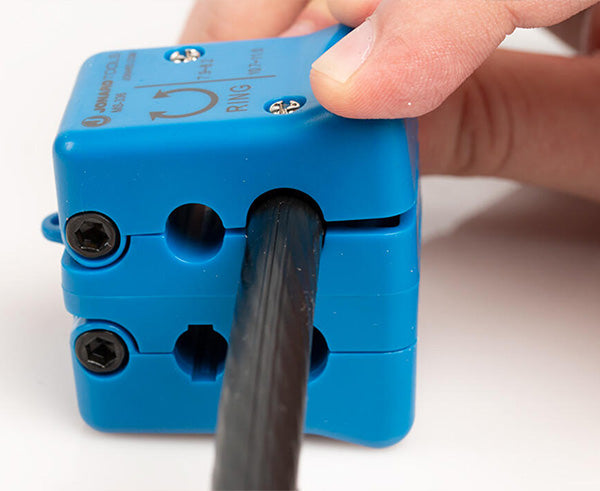

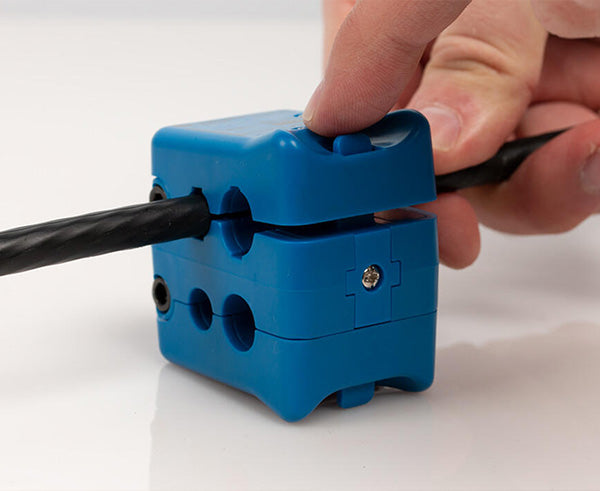

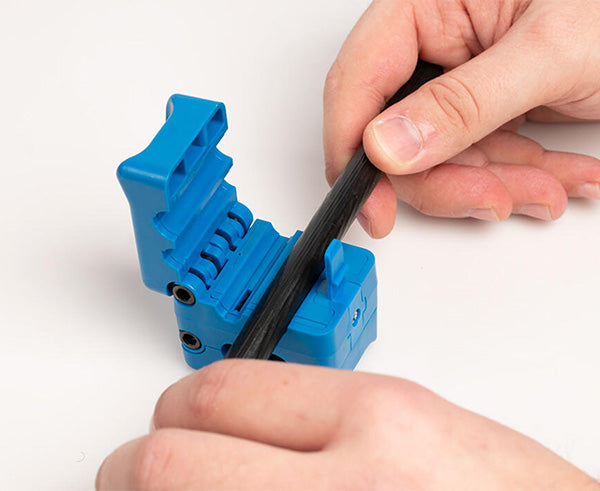

- One side of tool performs Radial/ring cuts and the other side slits the cable (longitudinal cut)
- Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing

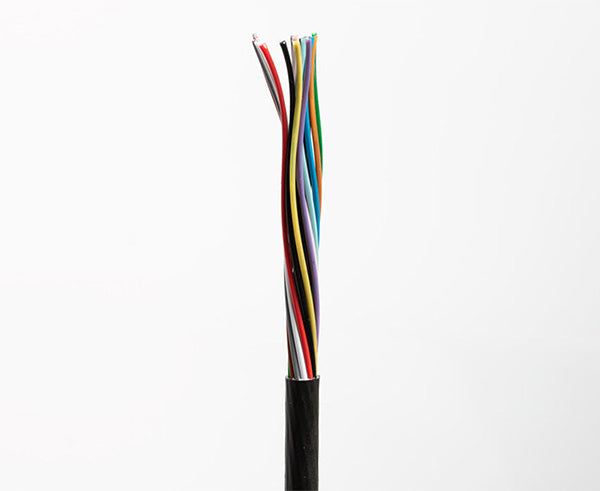

- This tool is specifically designed for use on Corning Minixtend HD 288F and Minixtend HD 432F cable. Both with FastAccess
- Replacement blades available, part number MS-336RB
- Blades last at least 5,000 slits/cuts
Groove Sizes: 7.9-8.2 | 10.7-11.0 mm
Specifications
Specifications
| Cut Type | Slit, Ring |
|---|---|
| Number of Slitting Grooves | 4 |
| Number of Ringing Grooves | 4 |
| Cable Type | Corning's Minixtend HD 288 and 432 |
| Cable Diameter | 7.9 - 11 mm |
| Dimensions | 2.3" x 1.5" x 2.2" (58.4mm x 38.1mm x 55.9mm) |
| Weight | 0.18 lb (81.72 g) |
| UPC # | 811490014770 |
Additional Information
Additional Information
What's In The Box
What's In The Box
- Qty 1 - Mid Span Slit & Ring Tool (7.9 mm-11 mm)
