Security Alarm Cable - Plenum (CMP) - 22/4 AWG, CL3P, Stranded (7 Strand), Shielded, 1000ft, White
Security Alarm Cable - Plenum (CMP) - 22/4 AWG, CL3P, Stranded (7 Strand), Shielded, 1000ft, White
BY Primus Cable
Regular price
$200.88 USD
Regular price
Sale price
$200.88 USD
Unit price
/
per
SKU: SKU: ASC3-460/224
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full details
Description
Features
Specifications
What's in the Box

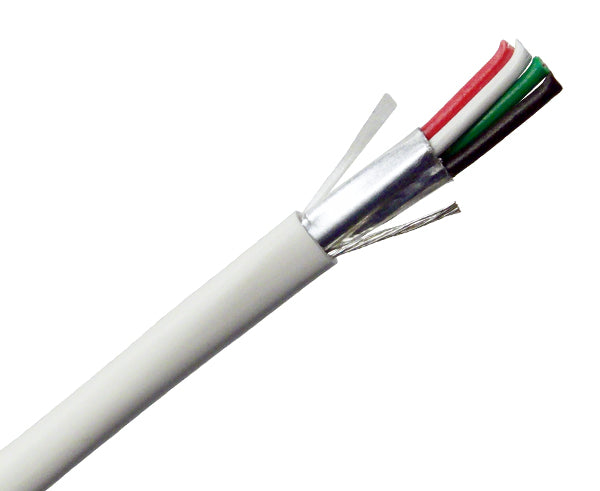

Security Alarm Cable 22/4 (7 Strand) Plenum CMP Rated Shielded 1000'
Tailored to security systems, this 22 AWG 4-conductor Security Alarm Cable is versatile for intercoms, power-limited controls, and sound/audio systems. Featuring 7 strands of bare copper, it comes shielded with a Plenum CMP-Rated white jacket and is proudly made in the USA. Supplied in 1000 ft. increments, this 22/4 Security Cable excels in diverse applications.
Features
- 22 AWG 4 Conductors
- 7 Stranded Bare Copper Conductors
- Low Smoke PVC Insulation
- AL Foil Shielded
- Low Smoke White PVC Jacket
- Sequential Footage Marking
- CMP FT6 Rated
- ETL Listed
- RoHS Compliant
- NEC Articles
- 22-16 AWG: FPLP/760, CMP/800, CL3P, CL2P/725
- 14-12 AWG: FPLP, CL3P
Residential Or Commercial Applications
- Security Systems
- Intercom Systems
- Sound/Audio Systems
- Power-Limited Controls
Specifications
Physical Construction |
|
|---|---|
| Inner Conductor | Stranded Bare Copper |
| Conductor Size | 22 AWG |
| Insulation | PVC |
| Nominal OD | 3.81mm |
| Outer Jacket Diameter | .38mm |
| Jacket | Low Smoke PVC |
| Jacket Color | Gray |
| Number of Strands | 7 |
| Inner Conductor Diameter | 1.2mm |
Electrical Characteristics |
|
|---|---|
| Temperature | 75°C |
| Voltage Rating | 300V |
| Center Resistance | 21.20 (Ω/km) |
Additional Information |
|
|---|---|
| Standards | ETL | RoHS | CMP |
| Applications | Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls |
| Jacket Printing | 22 AWG 4C (ETL) 725/CL3P 800/CMP (VID:###) XXXX FT |
| Important Notes | The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only. |
What's in the Box
- Security Alarm Cable - Plenum (CMP) - 22/4 AWG, CL3P, Stranded (7 Strand), Shielded, White
- 1000 Ft
