Description

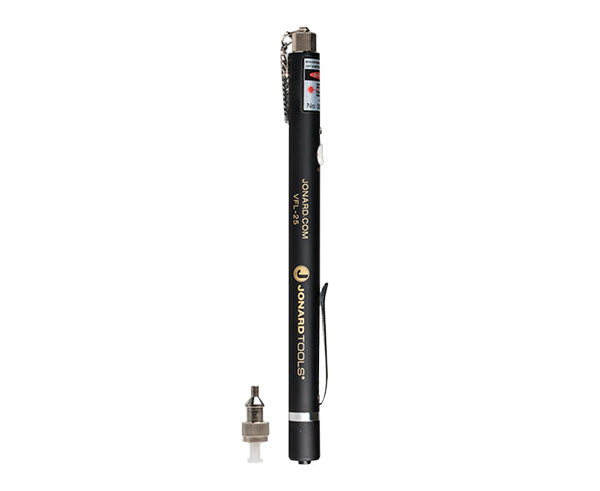

Visual Fault Locator Kit

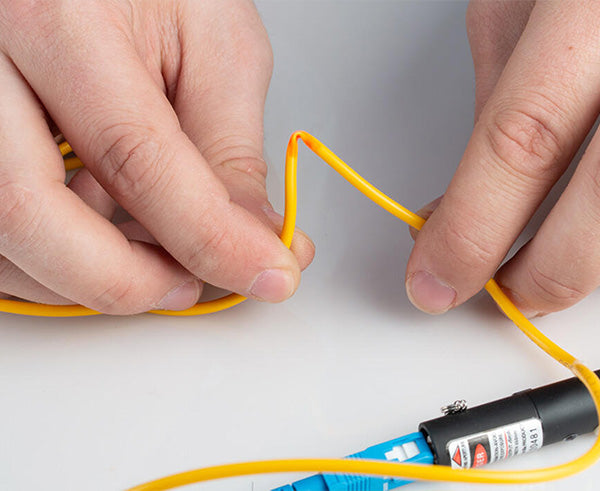

Designed to detect fiber breakpoints, fiber leaks, poor connections, and stress points, this visual fault locator is perfect for field personnel detecting faults in fiber optic cables.
Features
Features
- Includes adapter for 1.25 mm LC connectors
- 650 nm Class IIIA laser diode identifies faults in single and multi-mode fiber up to 3 miles long
- Universal connector accommodates 2.5 mm ferruled connectors, such as FC, SC, and ST connectors
- Has three different modes: Continuous wave, pulsing, and slower pulsing mode
- Works in OTDR dead zones and is used for end-to-end visual fiber identification
- Light and portable pen-style design is perfect for on the go use
- 60 hours of battery life powered by two AAA batteries (included)
Specifications
Specifications
| Fiber Connector | FC, SC, ST & LC |
| Light Source | Class IIIA Laser Diode |
| Distance | Up to 5 km (3.10 miles) |
| Wavelength | 650 nm |
| Working Temperature | -4°F to 140°F (-20°C to 60°C) |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C) |
| Power | 2 AAA Batteries |
| Battery Life | 60 hours |
| Weight | 0.16 lb (72.57 g) |
| UPC # | 811490016002 |
Additional Information
Additional Information
Jonard Tools VFL-25 Visual Fault Locator |
Jonard Tools VFL-150 CallOut Video |
What's In The Box?
What's In The Box?
Kit includes
| VFL-25 | Visual Fault Locator |
| VFL-25125 | FC to LC Adapter |
