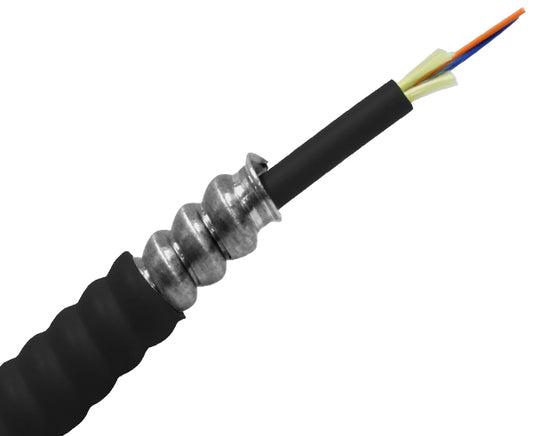

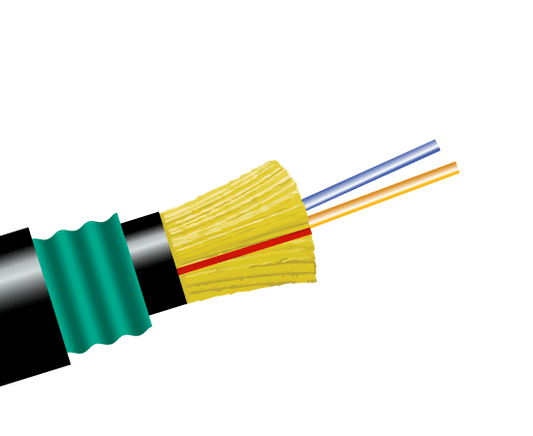

Single Mode, 9/125, Aluminum Interlocking Armored Distribution Cable, OFCR Riser Rated, Indoor/Outdoor, Price Per Foot

This armored riser fiber cable is ideal for industrial and other installations requiring a metallic armor and has a greater flexibility than standard corrugated steel-armored (CST) cables. The interlocking preloaded armor may eliminate the need for conduit, reducing installation costs. The interlocking armor can be easily removed leaving an intact inner riser rated cable for installation into building risers or from floor to floor.

Applications

Ideal for industrial and other installations requiring a metallic armor
Interlocking preloaded armor may eliminate the need for conduit, reducing installation costs

Features

UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building risers or from floor to floor
Aluminum interlocking armor with PVC overjacket
Interlocking armor can be easily removed leaving an intact inner cable
Greater flexibility than standard corrugated steel armored (CST) cables
Ideal for locations that require conduit for cable protection
Wide operating temperature of -40™C to +85™C

Jacket Characteristics

Operating Temperature

-40™C to +85™C

Storage Temperature

-55™C to +85™C

Installation Temperature

0™C to +60™

Flame Retardancy

UL Listed Type OFCR (UL 1666) and FT4 (CSA C22.2 No. 232)

Crush Resistance

650 N/cm

Impact Resistance

20 impacts

Flex Cycles

25

Specifications

Diameter

13.1 mm (0.52 in)

Weight

158 kg/km (106 lbs/1,000ft)

Tensile Load - Installation

1350 N (300 lbs)

Tensile Load - Operational

400 N (110 lbs)

Minimum Bend Radius - Installation

26.2 cm (10.3 in)

Minimum Bend Radius - Long Term

19.7 cm (7.8 in)

Laser Ultra-Fox Fiber Performance

Fiber
Code

Core/Cladding
Diameter (™m)

Wavelength
(nm)

Industry
Standard
Designation

Gigabit
Ethernet
Distance (m)

10-Gigabit
Ethernet
Distance (m)

Maximum Cabled
Attenuation
(dB/km)

Minimum Laser
EMB Bandwidth*
(MHz-km)

Minimum OFL
LED Bandwidth**
(MHz-km)

WLS

62.5/125
Standard

(850/1310)

OM1
ISO/IEC 11801

300/600

33/300^

3.5/1.5

220/500

200/500

WLX

62.5/125
XL

(850/1310)

OM1+
ISO/IEC 11801

500/1000

33/300^

3.5/1.5

385/500

200/500

ALS

50/125
Standard

(850/1310)

OM2
ISO/IEC 11801

600/600

82/300^

3.5/1.5

510/500

500/500

ALX

50/125
XL

(850/1310)

OM2+
ISO/IEC 11801

750/600

150/300^²

3.0/1.0³

950/500

700/500

ABX

50/125
XL
Bend-Tolerant

(850/1310)

OM2+
ISO/IEC 11801

750/600

150/300^²

3.0/1.0³

950/500

700/500

ALT

50/125
(300 meter 10-GbE)

(850/1310)

OM3
ISO/IEC 11801

1000/600

300/300^²

3.0/1.0³

2000/500

1500/500

ABT

50/125
(300 meter 10-GbE)
Bend-Tolerant

(850/1310)

OM3
ISO/IEC 11801

1000/600

300/300^²

3.0/1.0³

2000/500

1500/500

ALE

50/125
(550 meter 10-GbE)

(850/1310)

OM4
ISO/IEC 11801

1040/600

550/300^²

3.0/1.0³

4700/500

3500/500

ABE

50/125
(550 meter 10-GbE)
Bend-Tolerant

(850/1310)

OM4
ISO/IEC 11801

1040/600

550/300^²

3.0/1.0³

4700/500

3500/500

SLX

9⁶/125
Low Water Peak
Single-Mode

(1310/1550)

ITU-T G.652.D

5 km⁴

10 km⁵

0.5/0.5

™

™

SLA

9⁶/125
Bend-Tolerant
Single-Mode

(1310/1550)

ITU-T G.6572.A1
ITU-T G.652.D

5 km⁴

10 km⁵

0.5/0.5

™

™

SLB

9⁶/125
Bend-Tolerant
Single-Mode

(1310/1550)

ITU-T G.6572.A2
ITU-T G.652.D

5 km⁴

10 km⁵

0.5/0.5

™

™

Signifies specs for current fiber.

* Minimum Laser Effective Modal Bandwidth (EMB)
** For backward compatibility to LED-based systems, overfilled launch (OFL)
^ 1310 nm CWDM lasers (10GBASE-LX4)
¹ Reach assuming 3.0 dB maximum cabled attenuation at 850 nm and 1.3 dB total connection and splice loss
² Supports 220-meter 10GBASE-LRM distance, or 300-meter 10GBASE-LRM distance with 300-meter capable equipment
³ 3.5/1.5 dB/km maximum attenuation applies for DX-Series cables greater than 36 fibers, and for all DX-Series cables with armor (corrugated steel tape or interlocked armor) or any other secondary jacketing
⁴ 10 km for 1310 nm 1000BASE-LH, and 5 km for 1310 nm 1000BASE-LX
⁵ 10 km for 1310 nm 10GBASE-LR, and 40 km for 1550 nm 10GBASE-ER
⁶ Typical Mode Field Diameter at 1310 nm

Single Mode Fiber Information

Single mode fiber cable (Synonyms mono-mode optical fiber, single-mode fiber, single-mode optical waveguide, uni-mode fiber) is a single strand of glass fiber with a diameter of 8.3 to 10 microns that has one mode of transmission. Single mode fiber has a relatively narrow diameter, through which only one mode will propagate typically 1310 or 1550nm wavelengths. Single mode fibers carry higher bandwidth than multimode fiber, but require a light source with a narrow spectral width. Single-mode fiber gives you a higher transmission rate and up to 50 times more distance than multimode. The small core and single light-wave virtually eliminate any distortion that could result from overlapping light pulses, providing the least signal attenuation and the highest transmission speeds of any fiber cable type.
