Duplex Cable

Duplex Fiber Optic Cable is utilized for two-way transmissions in between devices; one channel is constructed to send information, while the additional channel receives information similar to the connection established through a modern telephone. The way in which this correlation is founded is through the two fibers that essentially form the Duplex Cable itself.

The basic structure is demonstrated through two strands of glass fibers that are individually jacketed, though connected through one shared outer jacket that encompasses both strands. Inherently, Duplex Cable is commonly used for fiber applications where a separate transmit and receive link are necessary; i.e. when a simultaneous bidirectional data transfer is required, then you will want Duplex Fiber Cable. What is more, we supply Duplex Cable for a wide range of applications including single mode and multimode along with plenum and riser variants.

A Closer Look | Products We Recommend

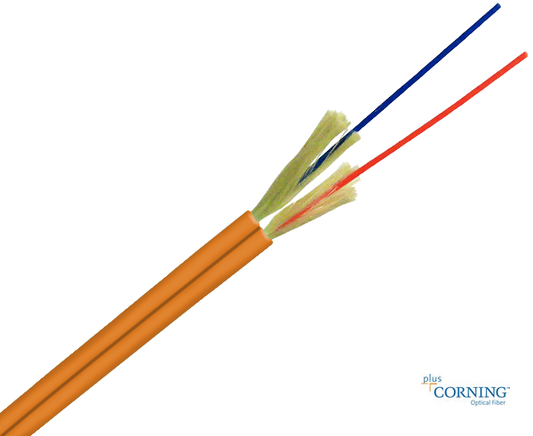

| Single Mode Duplex Fiber Optic Cable

The Duplex Fiber Optic Cable, Zip Cord, Single Mode, 9/125 is manufactured of genuine Corning® glass with a plenum rated design; this Duplex Fiber Optic Cable is made with a tight buffer, aramid yarn, and a PVC outer jacket. All materials that comprise the overall construction of the cable meet the EU RoHS and REACH Directive standards. Available in both 2mm and 3mm OD sizes to suit patch cord applications, Duplex Fiber Optic Cable, Zip Cord, Single Mode, 9/125 has sequential footage markings on its jacket to indicate how much of the fiber is left. As a final note, this Duplex Fiber Cable in particular is UL listed OFNP for safe usage inside environmental air handling spaces, such as plenums.

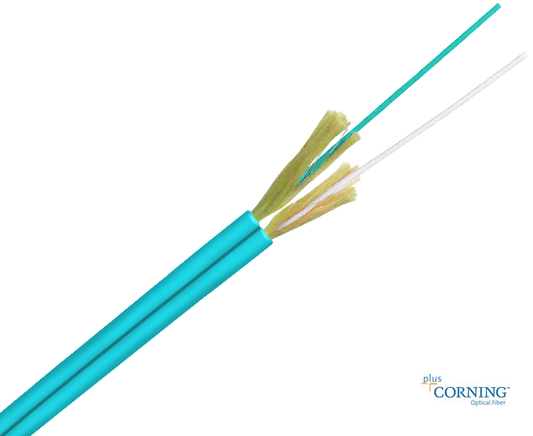

| Multimode Duplex Fiber Optic Cable

The Duplex Fiber Optic Cable, Zip Cord, Multimode is a notable option for indoor, floor to floor applications; this OM4 fiber optic cable is manufactured using Corning® glass and is fitting for 10 Gigabyte data applications. Moreover, all components of this cable are RoHS approved and conform to REACH Directive standards. This riser Duplex Fiber Optic Cable is sold in the 12 TIA standardized colors in additional to special order colors and is UL listed OFNR for safe installation in building riser shafts as well as floor to floor applications.

Our Assertion | We Strive to Surpass Expectations

Primus Cable offers network essentials manufactured at the highest of standards to serve as a basis for your applications. All of our products are backed by our knowledgeable customer support team who is determined to find a solution for you. Our competitive prices and cutting-edge products amidst our exceptional customer service, found an unparalleled experience with our ultimate goal being to provide an individualized network that will remain dependable for years to come.

We appreciate your interest and thank you for visiting the Primus Cable website.

If you have any questions, do not hesitate to give us a call at (951) 824-1571 or email us at support@primuscable.com
