Description

RG6, 18AWG BC Center Conductor, Quad Shielded Plenum Coaxial Cable for Indoor CATV

Our RG6 Quad Shielded Plenum Coaxial Cable is commonly used for wiring CATV surveillance cameras and radio frequency applications. The cable's jacket is designated CL2P for in-wall installation. The RG6 Quad Shielded Plenum Coaxial Cable tops out at 75 Ohms and does not keep a high Gigahertz.

Applications

Plenum Quad Shielded Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Plenum Coaxial Cable also provides protection of the signal from external electromagnetic interference. Plenum Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals.

Product Quality

This Quad Shielded Plenum Coaxial Cable consists of a 18 AWG solid bare copper center conductor that transmits the signal. It is surrounded with a Fluorinated Ethylene-Propylene (FEP) dielectric insulation, and 100% AL Foil + 70% AL Wire Braid / 100% AL Foil + 70% AL Wire Braid shielding. This is covered with a Plenum CMP jacket. Our cables are UL listed, ETL Verified and RoHS Compliant.

Where to use Plenum Coaxial Cable

A broad range of applications exist for coaxial cabling. It is widely used with entertainment equipment such as TV, VCR, DVR, satellite receivers in commercial settings such as schools and hospitals. It is also used with security cameras, and GPS Systems. Since this RG6 Plenum Coaxial Cable has a solid copper conductor it is the perfect cable choice for any CATV transmission or surveillance system and helps eliminate signal loss.

Why Plenum?

A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.

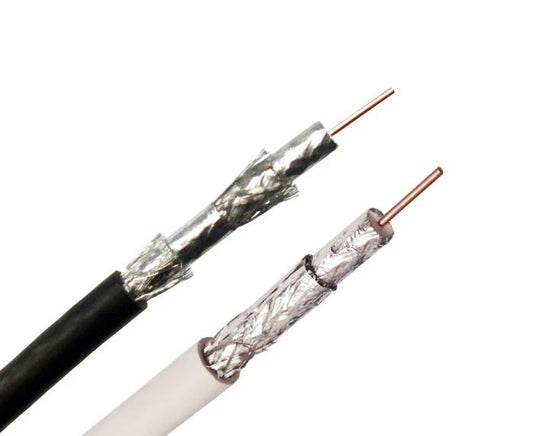

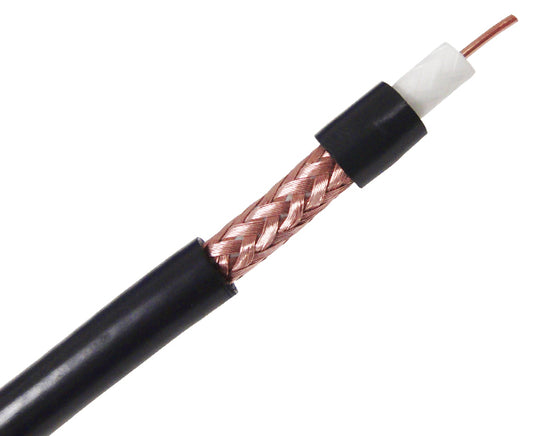

RG6 Coaxial Cable Options
CCTV				CATV

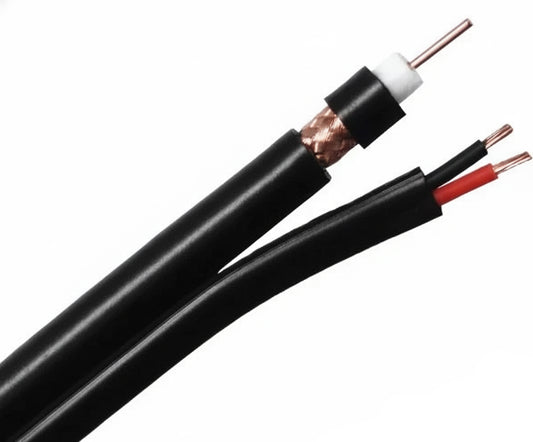

Single Conductor	Siamese	Single Conductor	Siamese	Single Conductor	Single Conductor	Single Conductor	Single Conductor	Single Conductor+ Messengar	Single Conductor
Solid BC (CM)	Solid BC (CM)	Plenum BC (CMP)	Plenum Siamese BC (CMP)	Plenum BC (CMP)	Plenum CCS (CMP)	Solid BC (CMR)	Solid CCS (CMR)	Solid CCS (CMR)	Outdoor CCS (CMX)

To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email support@primuscable.com to get a shipping quote.

Features

Features

Premium RG6 Quad Shielded Plenum Coaxial Cable
Suitable for Digital HDTV Applications, Cable Television (CATV), Digital Satellite, and Audio/Video
Sweep-Tested to 3.0 GHz.
18 AWG Solid Bare Copper Conductor
Aluminum-Foil Bonded
70% /55% Aluminum Wire Braid
Plenum CMP Rated Jacket
75 Ohm
ETL Listed
RoHS compliant
NEC Listed Articles: CMP, CATVP, Plenum
Made in the USA
Supplied in 1,000' Increments on Wooden Spool

Specifications

Specifications

Physical Characteristics
Conductor Size:	18AWG
Conductor Material	Solid Bare Copper (BC)
Dielectric Material	Foam FEP
Shielding:	70% AL Wire Braiding + AL Foil55% AL Wire Braiding + AL Foil
Outer Jacket Material:	Plenum CMP

Electrical Characteristics
Nominal Impedence:	75 Ohm
Nominal Velocity of Propagation:	84%
Nominal Capacitance:	15.8 Pf/ft
Nominal Conductor DC ResistanceDCR @ 20™C:	N/A
Maximum Operating Voltage-UL:	N/A

Mechanical Characteristics
Operating Temperature Range:	-5™C to +75™C
Maximum Recommended Pulling Tension:	N/A

Additional Information

Additional Information

To learn more about our RG6 Bulk Coaxial Cable here is a link to a page containing more information on our premium RG6 Bulk Coaxial Cable.

To learn more about our CMP Rated Cable here is a link to a page containing more information on our premium CMP Rated Cable.

What's in the Box

What's in the Box

Qty - (1) RG6 CATV Quad Shielded Plenum CMP Coaxial Cable, 18 AWG BC, 70% + 55% AL Wire Braid, Al Foil Shield
Supplied 1,000ft Increments, White on Wooden Spool
