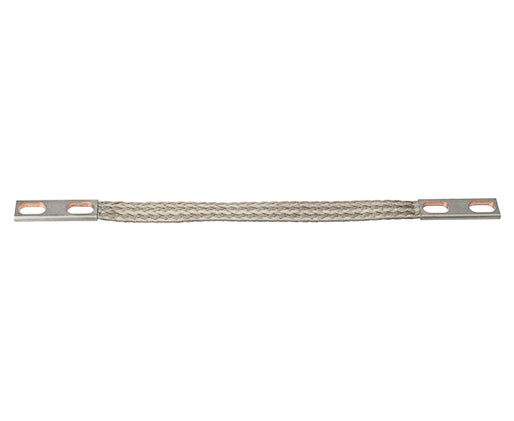

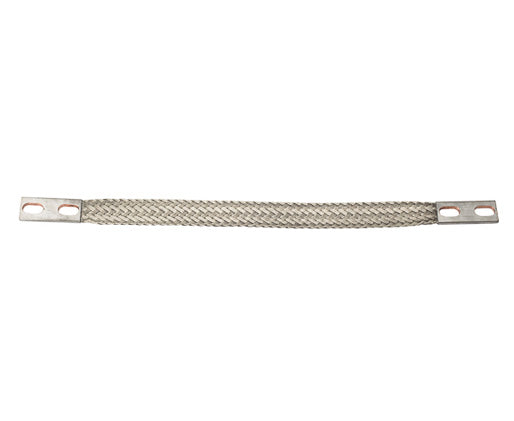

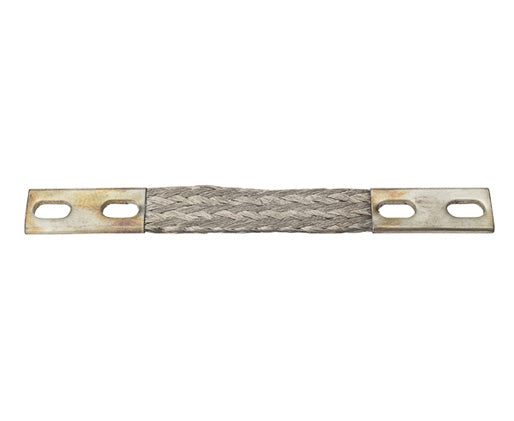

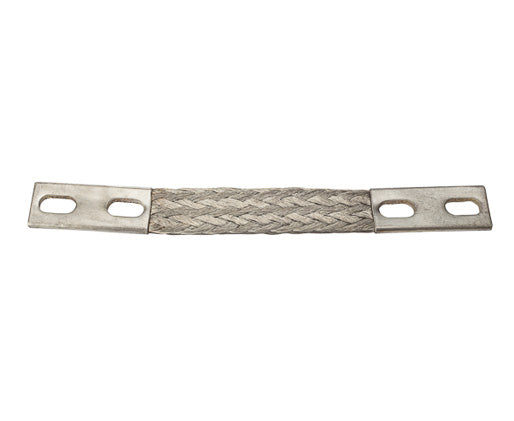

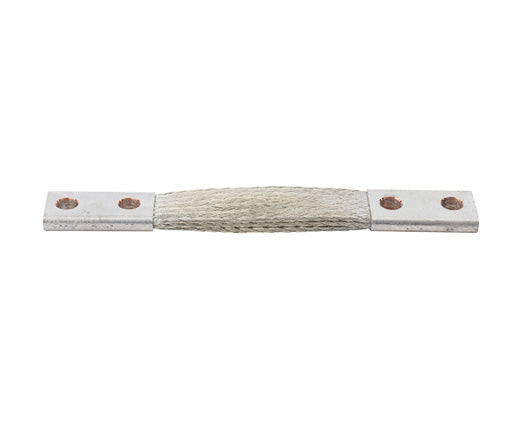

Flexible Braided Grounding Strap With Tin-Plated Copper Ends
by Primus Cable
$158.79
SKU: NPNB-FS1-19-8N
These products are all Made to Order
Which means they are non-cancelable and non-refundable
Description
Flexible Braided Grounding Strap With Tin-Plated Copper Ends
Flexible Braided Grounding Straps
Features
Features
- Recommended for motion due to expansion, contraction, vibration and operational movement of current carrying members.
- Manufactured from flat, extra-flexible tinned braid, they are available in a wide variety of sizes and amperages.
- The ferrules are made from pure electrolytic copper and are tin-plated.
- Standard mounting holes are 9/16” NEMA spaded holes.
Specifications
Specifications
| Part# | Amp Rating | Circular Mils | Thickness | Length (in) | Width (in) |
| NPNB-FS1-19-8N | 190 | 225 | 77,000 | 1/4 | 12" | 11/16 |
| NPNB-FS1-19-8N-18 | 190 | 225 | 77,000 | 1/4 | 18" | 11/16 |
| NPNB-FS1-19-8N-24 | 190 | 225 | 77,000 | 1/4 | 24" | 11/16 |
| NPNB-FS1-33-8N | 330 | 400 | 154,500 | 1/4 | 12" | 1-1/2 |
| NPNB-FS1-33-8N-18 | 330 | 400 | 154,500 | 1/4 | 18" | 1-1/2 |
| NPNB-FS1-33-8N-24 | 330 | 400 | 154,500 | 1/4 | 24" | 1-1/2 |
| NPNB-FS2-60-8N | 600 | 720 | 463,000 | 7/16 | 12" | 13/16 |
What's In The Box
What's In The Box
-
Qty 1 - Flexible Ground Strap
