Description
Description

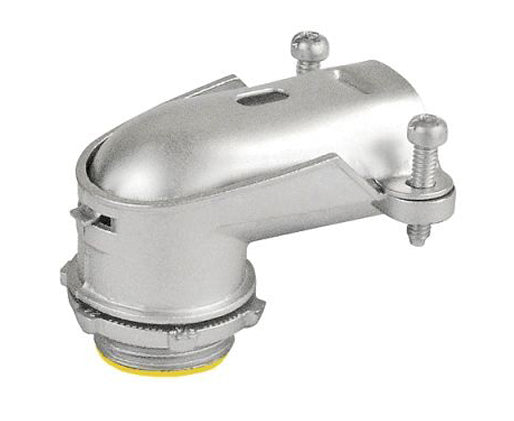

90 Degree Squeeze Connector w/ Insulated Throat
90 degree squeeze type connectors with insulated throats are used in dry locations to bond flexible metal conduits to boxes or enclosures. Primus Cables' rugged metallic construction maintains mechanical protection and solid grounding of the conduit to the designated electrical junction box or enclosure. Their insulated plastic throat prevents wires from being cut or skinned by sharp edges when being pulled through conduits.
Features
Features
- 90-degree design allows for right-angle connections from flexible metal conduit to electrical boxes or enclosures, helping to navigate tight spaces and obstacles.
- Integrated insulated throat protects wires from being cut, skinned, or damaged by sharp metal edges during installation or when pulled through the conduit.
- Squeeze-type connection mechanism ensures a secure, tight bond to the conduit for solid mechanical protection and reliable grounding.
- Rugged metallic construction provides durability and long-lasting performance in demanding electrical environments.
- Designed for use in dry locations to safely bond flexible metal conduits to junction boxes or enclosures.
- Available in a comprehensive range of trade sizes from 3/8 inch up to 4 inches to fit various conduit dimensions and project requirements.
- Quick and easy installation is facilitated by the squeeze design, which tightens fast without the need for complex tools.
- Maintains continuous grounding by ensuring a solid metallic connection between the conduit and the designated box or enclosure.
Specifications
Specifications
| Part Number | Trade Size |
|---|---|
| NPNB-SQZ3890i | 3/8" |
| NPNB-SQZ5090i | 1/2" |
| NPNB-SQZ7590i | 3/4" |
| NPNB-SQZ10090i | 1" |
| NPNB-SQZ12590i | 1-1/14" |
| NPNB-SQZ15090i | 1-1/2" |
| NPNB-SQZ20090i | 2" |
| NPNB-SQZ25090i | 2-1/2" |
| NPNB-SQZ30090i | 3" |
| NPNB-SQZ35090i | 3-1/2" |
| NPNB-SQZ40090i | 4" |
What's in the box
What's in the box
- Qty 1 - 90 Degree Squeeze Connector w/ Insulated Throat
