AX3000 Mesh WiFi 6 Extender
AX3000 Mesh WiFi 6 Extender
Faster Speed, Higher Efficiency Powerful Wi-Fi Dead Zones Killer
WiFi 6 comes with it all: faster speeds, lower latency, and more connections. It also features 25% faster data throughput compared with last-gen WiFi thanks to 1024-QAM. With this speed boost, experience high-speed and stable WiFi throughout your rooms.
AX3000 Dual Band WiFi Provides Strong Signals in Every Corner of Your Home
Double Channel Speed with HE160
Supports 2x2 160MHz on the 5G band, enjoys wider bandwidth and faster speed than the traditional 80MHz.
4 high-performance amplifiers, we got you covered
Enjoy 4K streaming and gaming in whatever room you’re in thanks to RE700X’s 4 high-performance amplifiers. Whether you’re sharing a pad with friends or living in your forever home, RE700X sends out strong signals to those hard-to-cover areas.
OFDMA More efficient data.
Orthogonal Frequency Division Multiple Access helps integrate the data of different end devices for higher efficiency.
Beamforming Strong, targeted WiFi.
Beamforming technology concentrates the WiFi signal towards your connected devices, providing better WiFi range and network performance.
Adaptive Path Selection
Keeps your network running at top speed by automatically choosing the fastest connection path to the router.
Built-In Access Point Mode
RE700X is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port, and easily turn your wired internet connection into a 2×2 MIMO dual band wireless access point.
Wide. Wider. Widest.
Keep your internet focused on a single room or blanket an entire floor with WiFi by picking between 3 strength levels on the Tether app.
Control at Your Fingertips
Set up and manage your WiFi through the TP-Link Tether app from your phone (Android, iOS), including TP-Link routers and range extenders.
Dual Band WiFi 6 - Separates 5 GHz (2402 Mbps) and 2.4 GHz (574 Mbps) WiFi bands for faster speeds and greater capacity with the latest technology

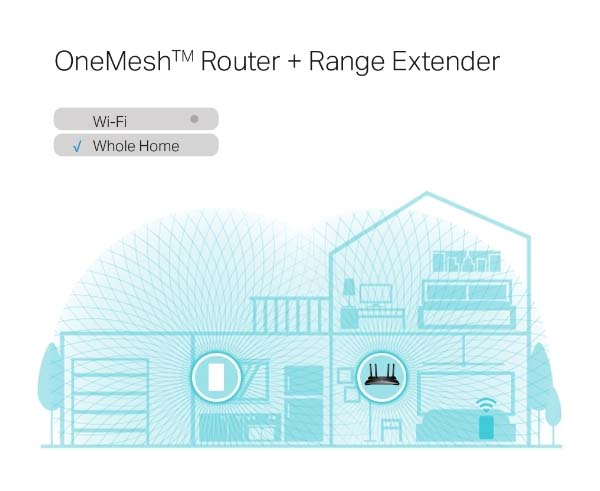

Uninterrupted Streaming - Easily create a OneMeshTM network for seamless whole home WiFi coverage
AP Mode - Create a new WiFi access point through the Gigabit Ethernet port to enhance your wired network with WiFi capability
Adaptive Path Selection - Automatically choosing the fastest connection path to the router
- App Control - Easy Setup and management with your network using the TP-Link Tether app
|Interface||1 x Gigabit Ethernet Port|
|Button||WPS Button, Reset Button
|Input Power||100-240VAC, 50/60Hz|
|Dimensions (W x D x H)||3 x 1.4 x 5.8 in(78 x 36 x 149 mm)|
|Antenna||2 Internal Antennas
IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz
|Frequency||2.4 GHz and 5 GHz
|Signal Rate||574 Mbps at 2.4GHz, 2402 Mbps at 5GHz|
11a 6Mbps: -97dBm
11a 54Mbps: -78dBm
11ax HE20 MCS0:-97dBm
11ax HE20 MCS11:-66dBm
11ax HE40 MCS0:-94dBm
11ax HE40 MCS11:-63dBm
11ax HE80 MCS0:-91dBm
11ax HE80 MCS11:-61dBm
11ax HE160 MCS11:-59dBm
11ax HE20 MCS0: -96dBm
11ax HE20 MCS11: -65dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -63dBm
CE: 2.4GHz ≤16dBm, 5GHz ≤21dBm
|Wireless Modes||Range Extender/ Access Point|
|Wireless Functions||Enable/Disable Wireless Radio, Wireless Statistics|
|Wireless Security||WEP, WPA, WPA2, WPA3|
Wi-Fi Range Extender RE700X
Quick Installation Guide
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
How to Set up TP-Link Range Extender via WPS
What's in the Box
- (1) AX3000 Wi-Fi 6 Range Extender (RE700X)
- (1) Quick Installation Guide
