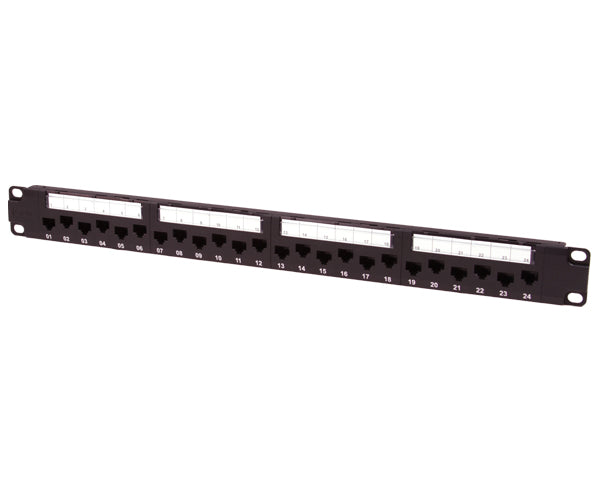

CAT6A Network 10G 24-Port Patch Panel, Staggered ports, 1U Rack Mount, Wire Management Support Bar
Description
CAT6A Ethernet Patch Panel with Staggered 24-Port Design which reduces Alien Crosstalk!

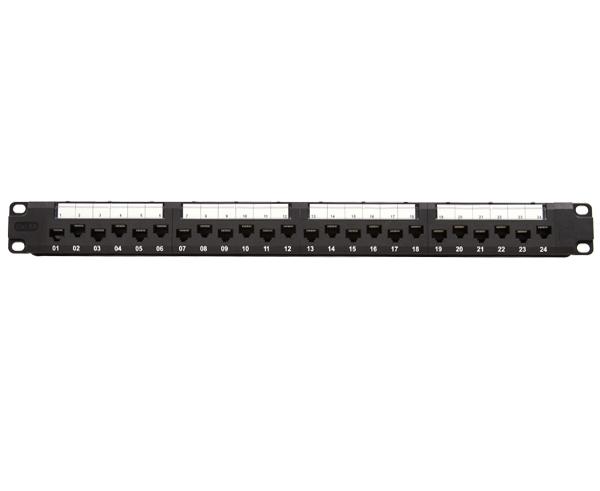

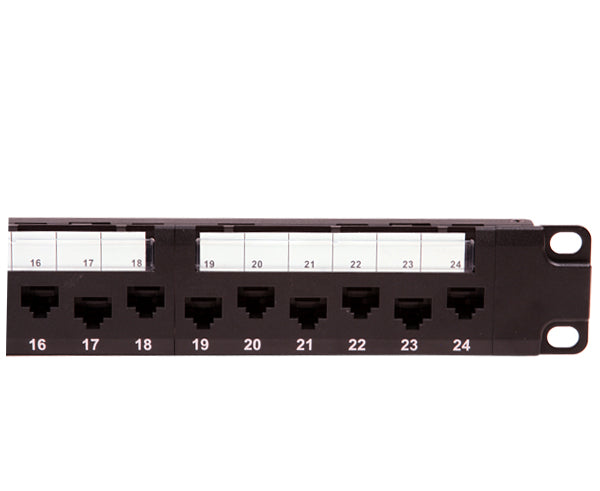

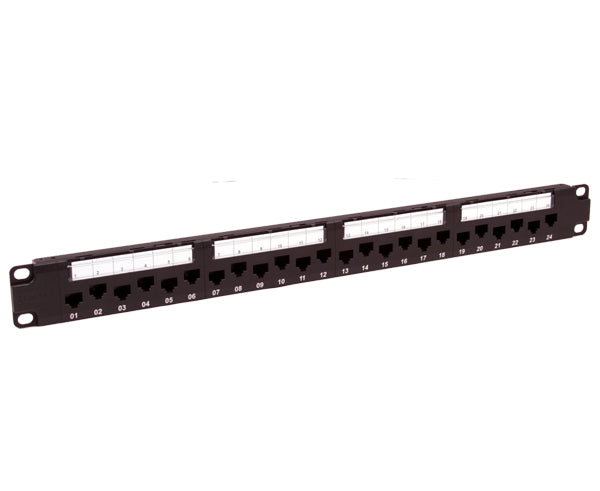

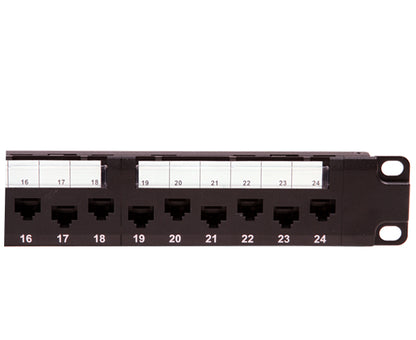

Our preloaded CAT6A patch panel is perfect for your small home or office. This CAT6A Patch Panel has a 24-Port configuration and contains flush mounted RJ45 ports. These ports have a staggered design to help reduce possible Alien Crosstalk. Our patch panels meet and exceed industry standards, ensuring safety and maximizing the performance of your network.

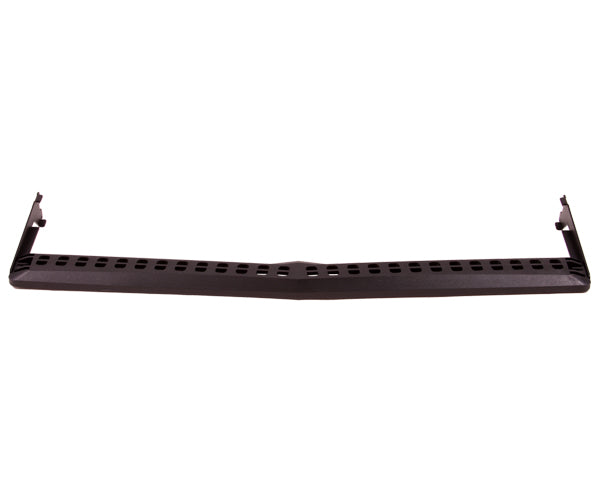

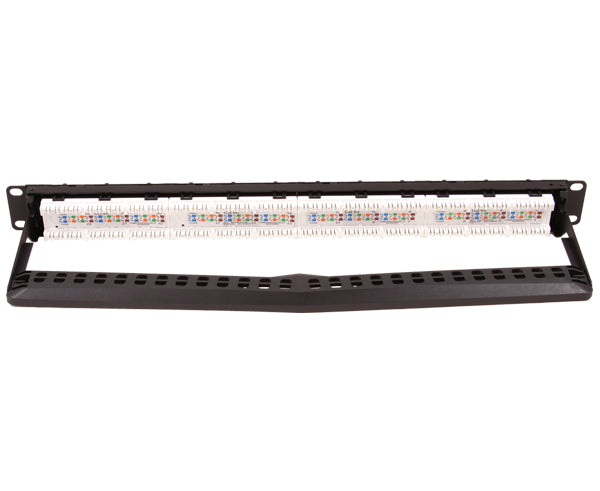

Product QualityProduct quality is essential to a reliable network. Our CAT6A patch panel meets UL standards and is UL Listed. Additionally, this patch panel is RoHS compliant and also meets TIA/EIA 568C.2 standards. The RJ45 ports mount flush against the panels face in a staggered alignment which helps reduce the Static and AXT. This CAT6A Patch Panel is not only ideal for speed and efficiency but also great for your cable management. It comes with a wire management support bar for cables which will diminish the tension on the wire connection.
Durability & StrengthTo ensure our CAT6A Patch Panel's durability and strength, we use SPCC material for the panel and ABS - UL94V-0 rated - for the frame. Our patch panel includes 50µ gold plated phosphor bronze RJ45 contacts that allow you to plug in your patch cable multiple times without diminishing signal quality.
CAT6A Network ProductsTo complete your CAT6A network we carry a full end to end solution including CAT6A bulk ethernet cables, CAT6A patch cables, CAT6A RJ45 modular plugs, network racks and enclosures, Ethernet switches and wall plates. We also have a large assortment of tools, testers, and cable management accessories that will help make your installation fast, smooth and organized. If you have any questions, feel free to give us a call.
Features
Features
- Premium CAT6A Patch Panel
- 24-Ports, 1U
- Staggered Port Design - Reduces Static & Alien Crosstalk (AXT)

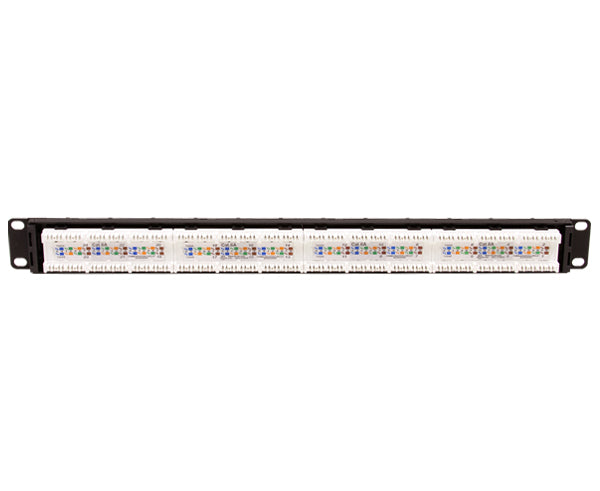

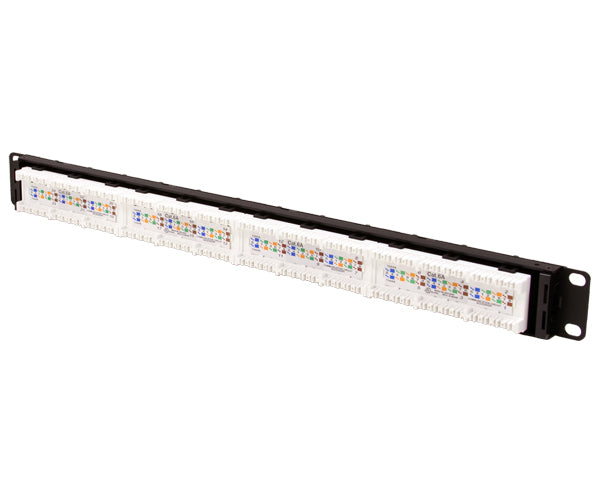

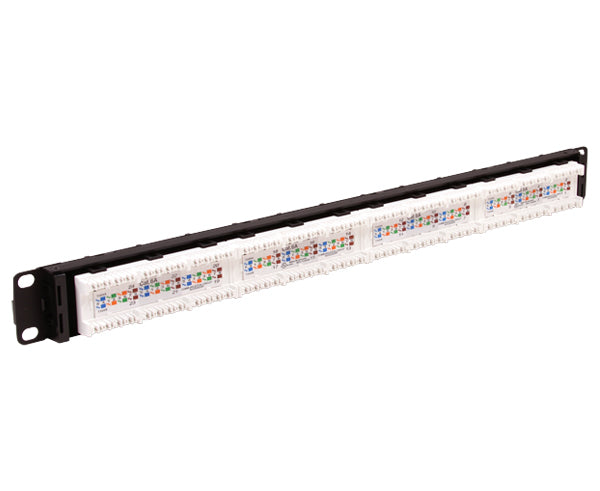

- 110-Type IDC termination
- Panel Material: SPCC
- Plastic Frame - UL94V-0 Rated
- RJ45 contacts: 50µ Gold
- 19” Rack Mountable
- Includes Cable Ties, Support Bar And Instructions
- Color coded 110/Krone termination blocks
- ANSI/TIA 568-C.2 Compliant (10G)
- T568A and T568B Wiring Schemes
- UL Listed
- RoHS Compliant
Specifications
Specifications
Port Quantity | 24 Ports |
Length | 19 Inches (482.6mm) |
Height | 1U (1.72 inches - 43.65 mm) |
Depth | 1.22 inches - 30.9 mm |
Weight | 3 lbs. |
Configuration | 24 RJ45 ports with IDC-110 punch down headers |
Additional Information
Additional Information
What’s In The Box
What’s In The Box
- Qty 1 - CAT6A 24-Port Patch Panel
- Qty 4 - I.D. Paper
- Qty 1 - Wire Management
- Qty 2 - Wire Management Holder (L/R)
- Qty 8 - Nylon Cable Ties
- Qty 1 - Instructions
