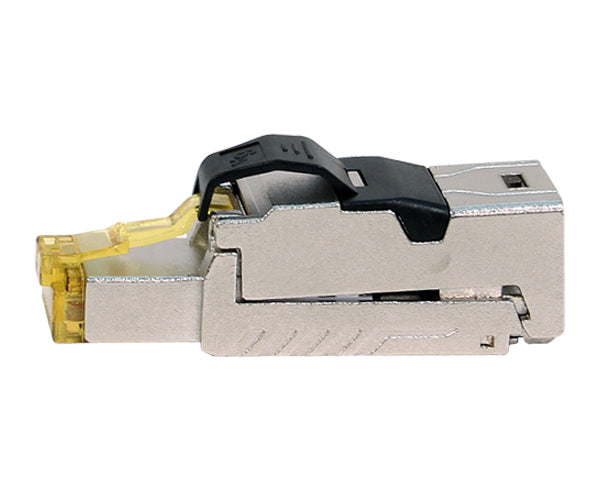

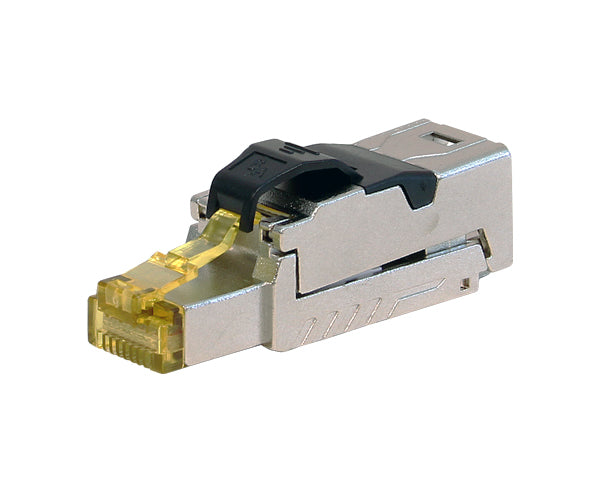

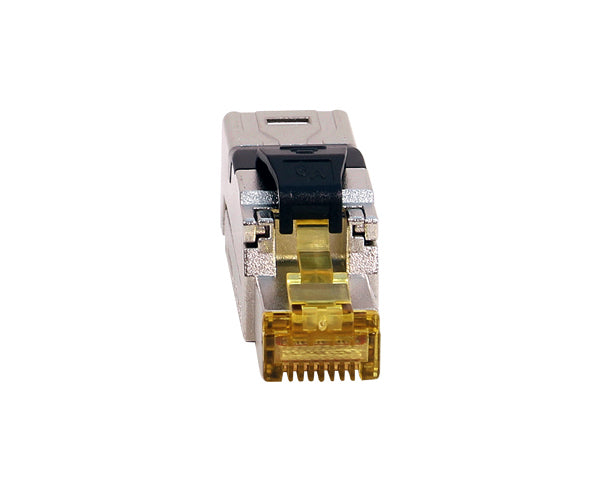

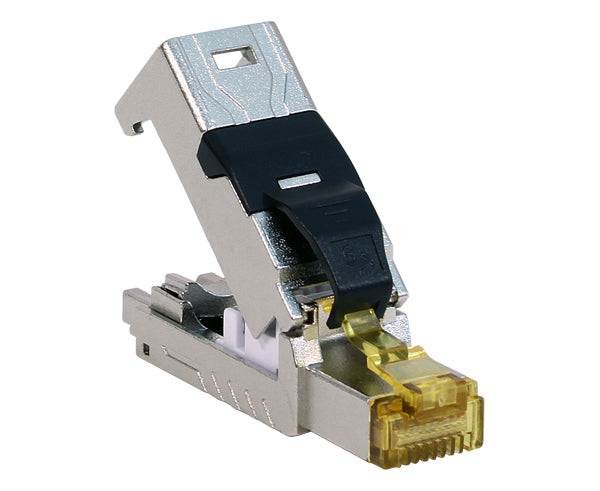

CAT6A Shielded RJ45 Field Termination Plug, Diecast Plated, 23-24AWG

$7.99
SKU: CN1-5414-8C8S
UL Listed

Description

Description

We believe in great networking products they're the key to building a great network. We hold our CAT6A RJ45 connectors to high standards with our customer and their network in mind. Even with something as small as an RJ45 connector, we get it reliable and blazing fast.

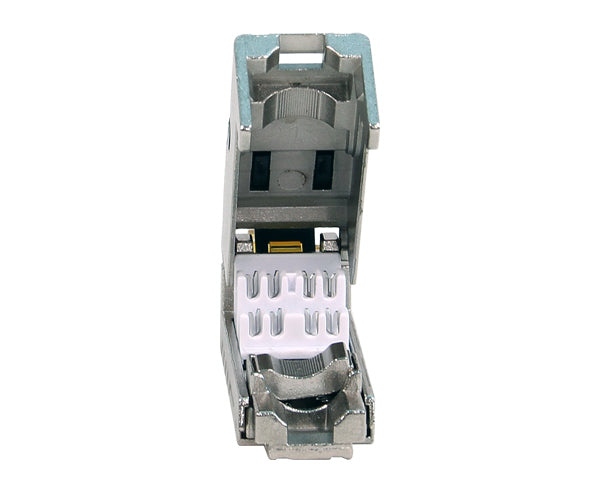

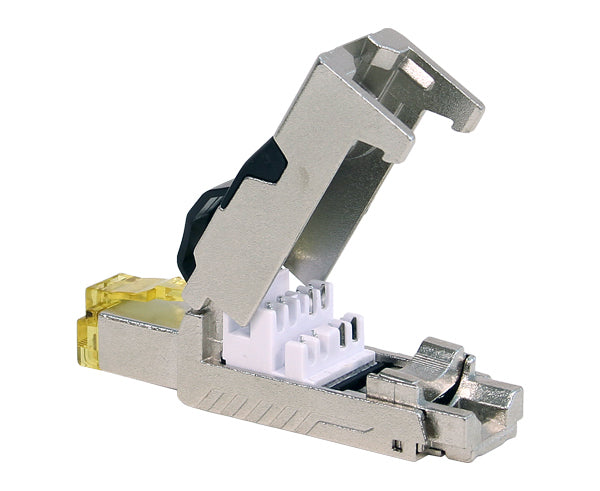

These RJ45 connectors are designed to work specifically with CAT6A cable. These RJ45 contacts are gold plated. They have 8 pins and 8 conductors (8p8c) with inserts included they're part of the design. The wire alignment insert provides an efficient termination without any need of tools. A cable stripper is however recommended to expose the inner conductors.

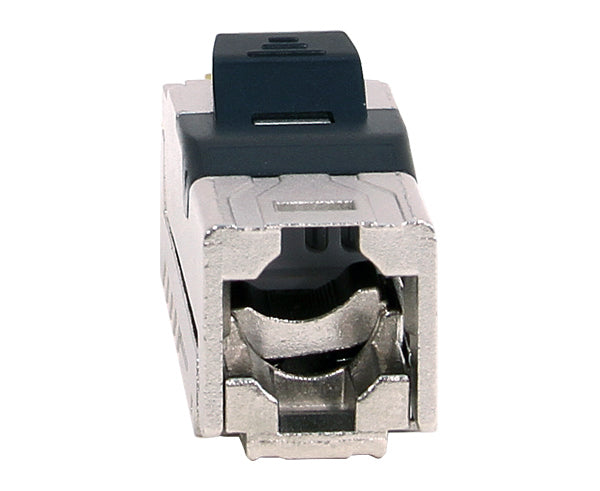

This connectors Housing is shielded with zinc die-cast nickel plating. This makes our CAT6A plugs more durable while being less prone to corrosion and rust. All our Category 6A Plugs come standard with two different sizes of boots. These boots provide better stress relief support around the connection point of the cable and connector.

CAT6A is the future in copper cabling and it is smart to implement into your CAT6 systems so your network will easily transferred to 10G in the near future. So update your system today so your company can get faster, more efficient conversion rates.

Features

Features

  • Ideal for high performance CAT6A Networks needing to reach 10G Speeds
  • Meets CAT6A performance requirements per ANSI/TIA-568-C.2-1
  • Housing is shielded with zinc die-cast nickel plating
  • Tool-less termination saves time and money
  • Strain relief boots are included
  • Backwards compatible with CAT6 system
  • Selectively plated contacts with 50 micro-inches of gold
  • Suitable for shielded solid & stranded 23 AWG to 24 AWG wire
  • Power over Ethernet (POE) capabilities
  • T568A & T568B wiring
  • UL 94-V0 plastic components

Specifications

Housing Dimensions

Width 13.8mm
Height front 18.4mm
Height rear 14.5mm
Length 62.18mm (Including Boot)
Conductor Space 6.6 X 11.68 mm (H x W)

Performance

Insertion Force 30N max.
Retention Strength 7.7 Kg between jack and plug
Operating Temperature -10ºC to 60ºC
Life Cycle (Mating) 750 cycles min.
IDC Life Cycle Suitable for 23 - 24 AWG stranded and solid wire, min. 20 installation cycles

Material

Extractor UL 94V-2 black plastic
Housing Zinc die-casting with nickel plating
Contact Material Phosphor bronze with 100 micro-inch nickel plate
Contact Finish min. 50 micro-inch gold plating
Wire Management Bar UL 94V-2 white plastic and glass fiber
IDC Housing UL 94V-2 white plastic
IDC Terminal Titanium Copper with tin plating
Grounding Contact Zinc die-casting with nickel plating
Boots UL 94V-2 transparent plastic

Additional Information

Installation Instructions


Additional Information

Our CAT6A Shielded Modular Plugs are compatible with:

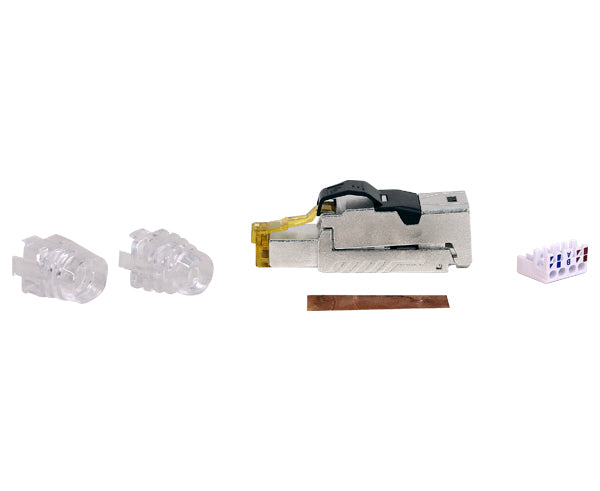

What's in the box?

What's in the box?

  • Qty 1 - CAT6A Shielded RJ45 Field Termination Plug

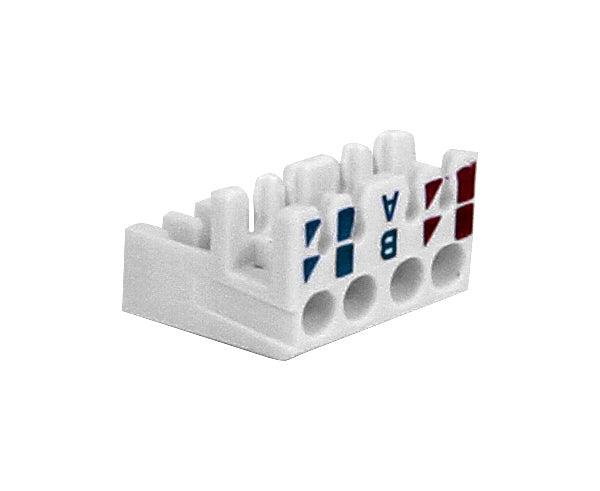

  • Qty 1 - IDC Cap

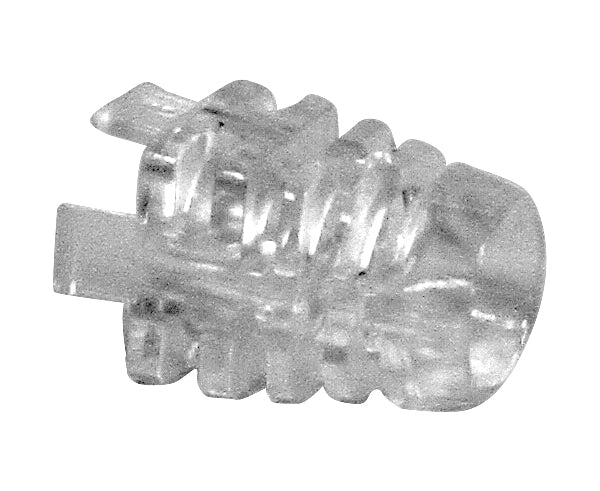

  • Qty 2 - Stress Relief Boots
  • Qty 1 - Copper Foil Tape
