Description
Speaker Wire/ Audio Cable, 16/4 Oxygen Free CMX, Direct Burial, 500' White
16 AWG Speaker Wire
Our 16-gauge speaker wire features two bare copper conductors with 65 copper strands each, ensuring improved conductivity. Made of oxygen-free pure copper, it's enclosed in a black PVC outer jacket and meets UL and CL3 standards.
Ideal for delivering high-quality audio signals from audio components to a receiver or amplifier, this direct burial speaker wire is suitable for outdoor speakers and low-voltage lighting applications. Supplied on a wooden spool in a 500-foot length, its PVC jacket is sun-resistant and shields the conductors from water damage.
Features
Features
- Oxygen Free Copper (OFC)
- 16 AWG High Strand Count (65 strands)
- Direct Burial Sun Resistant PVC Jacket
- PVC Jacket Protects Against Water Damage
- UL Listed
- CMX Rated
- Meets CL3 Standards
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| 16 AWG SPEAKER WIRE | |
| CONDUCTOR | OFC - OXYGEN-FREE COPPER |
| CONDUCTOR SIZE | 16 AWG |
| CONDUCTOR DIAMETER | 65/0.16 |
| INSULATION | 16 AWG |
| AVERAGE THICKNESS | 0.31mm |
| INSULATION DIAMETER (±0.05mm) | 2.1mm |
| NUMBER OF STRANDS | 65 |
| INSULATION COLORS | RED, BLACK, WHITE, & GREEN |
| OUTER JACKET | DIRECT BURIAL SUN RESISTANT PVC, CMX RATED |
| OUTER JACKET COLOR | WHITE & BLACK |
| AVERAGE THICKNESS | 0.6 |
| OUTSIDE DIAMETER (±0.05mm) | 6.5 |
| CAPACITANCE (pF/m) | 65.2919 |
| NOMINAL VELOCITY OF PROPAGATION VP (%) | 66 |
| CONDUCTOR DC RESISTANCE DCR @ 20°C (ohm/km) | 13.124 |
| MAX. OPERATING VOLTAGE - UL (VOLTAGE) | 300 V RMS |
| OPERATING TEMPERATURE | -20°C TO 60°C |
Additional Information
Speaker Wire Accessories
Home theater speakers generally don™t come with speaker wire. This poses the challenge of determining the wire gauge and jacket type to suit the application. Primus Cable supplies premium-quality speaker wire with a CMX jacket rating, making it safe for floor-to-floor wiring. To ensure crystal clear home theater audio, be sure to invest in oxygen-free copper speaker wire from Primus Cable.
To learn more about our Speaker Wire Accessories please visit our overview page. Primus Cable Speaker Wire can be combined with a wide array of products such as:
- Audio/Video Keystone Jacks
- RCA Audio Cable
- RCA Splitter
- RCA Component Video Cable
- TV Ceiling and Wall Mounts
What's in the Box
What's In The Box

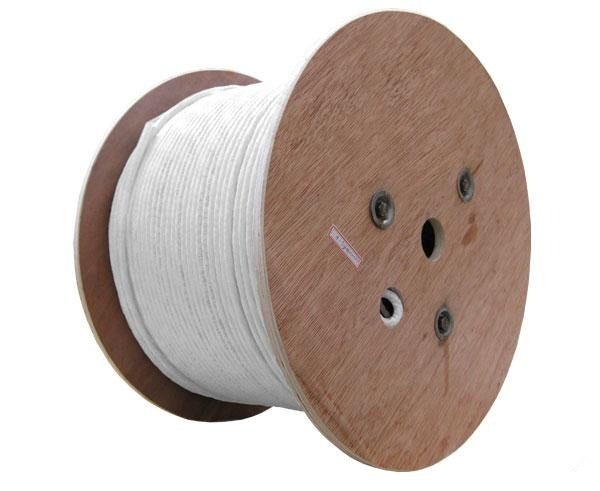

- Qty 1 - OFC Direct Burial Sun Resistant Jacket Audio Cable supplied on a 500 FT Wooden Spool
