Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-LC/APC

Name: Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-LC/APC
Brand: Jonard Tools
SKU: FLC-1007
Price: 262.95 USD
Availability: InStock

BY Jonard Tools

$262.95 USD

Sale Sold out

SKU: SKU: FLC-1007

Quantity

⚠ Various lead times may apply to this product. Please contact us for more details.

View full details

Description

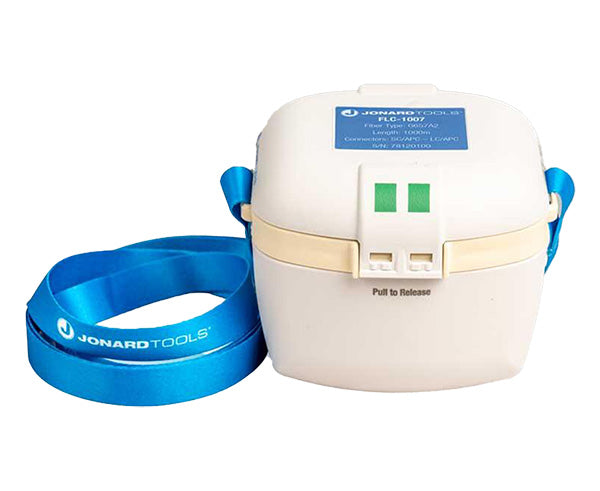

Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-LC/APC

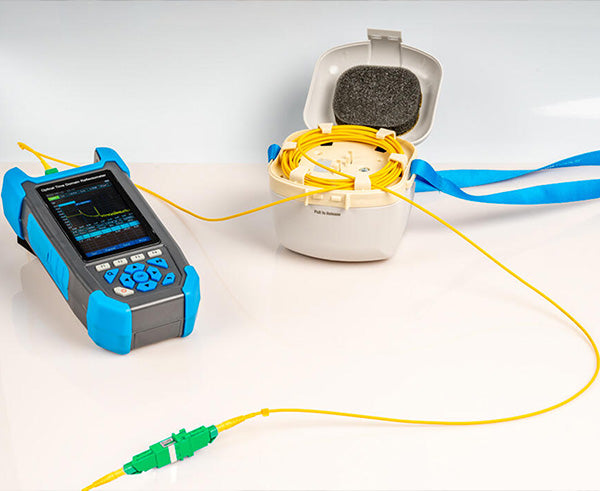

Designed with unique compact housing and 1000 meters of fiber, this launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR.

Features

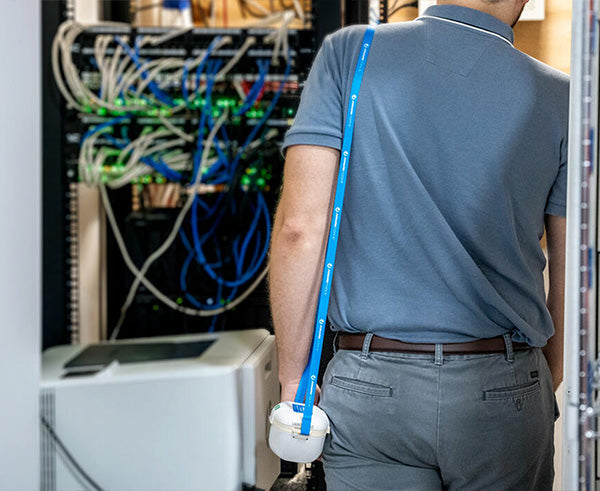

Compact housing and shoulder strap make this perfect for on-the-go use
6.56 ft (2 m) long pigtails are terminated with an SC/APC connector on one side and an LC/APC connector on the other side for versatility
Polishing types are color coded for quick and easy identification of the launch cable

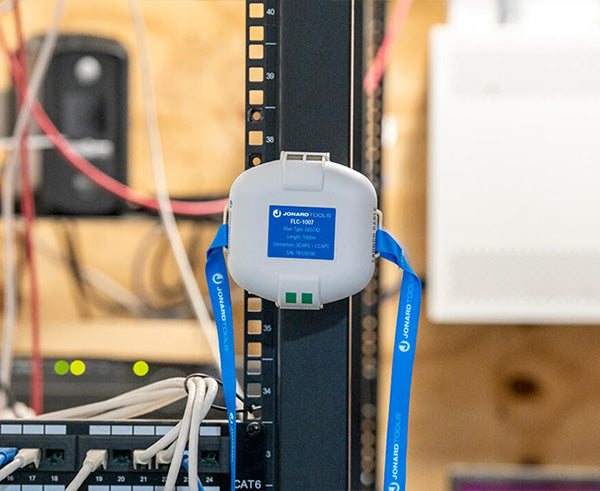

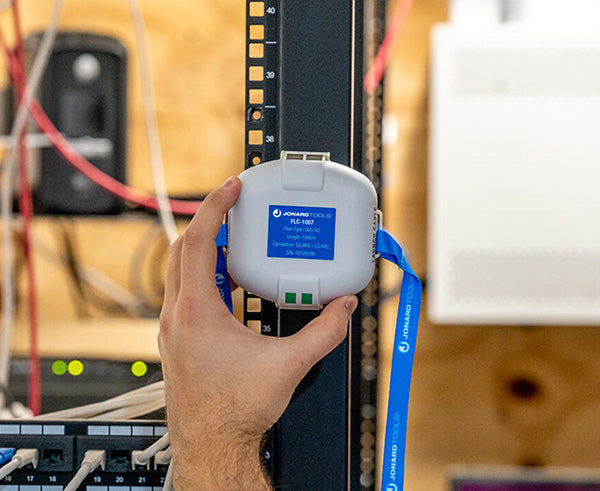

Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks

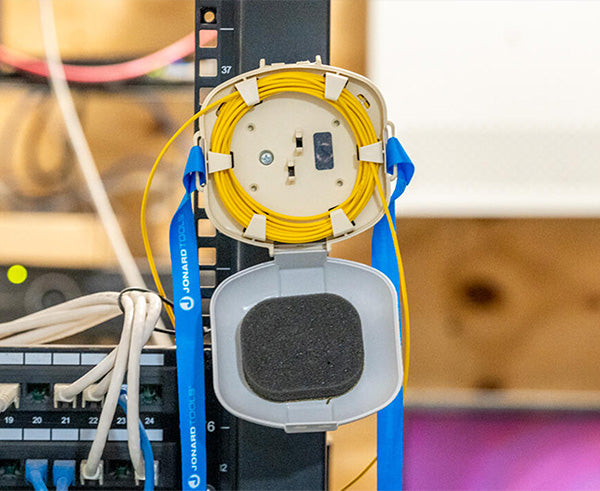

3281 ft (1000 m) length of fiber is perfect for most OTDR testing applications

Specifications

PRODUCT SPECIFICATIONS
Cable Length	3280.24 ft (1000 m)
Connector Types	SC/UPC, LC/APC
Input/Output Length	4.9 ft (1.5 m)
Max Insertion Loss @ 1310 nm	≤ 0.35 dB/km
Max Insertion Loss @ 1550 nm	≤ 0.22 dB/km
Max Insertion Loss @ 800 nm	≤ 2.50 dB/km
Max Insertion Loss @ 1300 nm	≤ 0.70 dB/km
SM Connector Insertion Loss	≤ 0.1 dB
MM Connector Insertion Loss	≤ 0.15 dB
Return Loss	RL ≥ 65 dB (APC); RL ≥ 55 dB (UPC)
Fiber Type	G657A2
Dimensions	4.25 in x 4.15 in x 3.4 in (10.8 cm x 10.54 cm x 8.64 cm)
Weight	0 lb (0 g)
UPC #	810053352397
