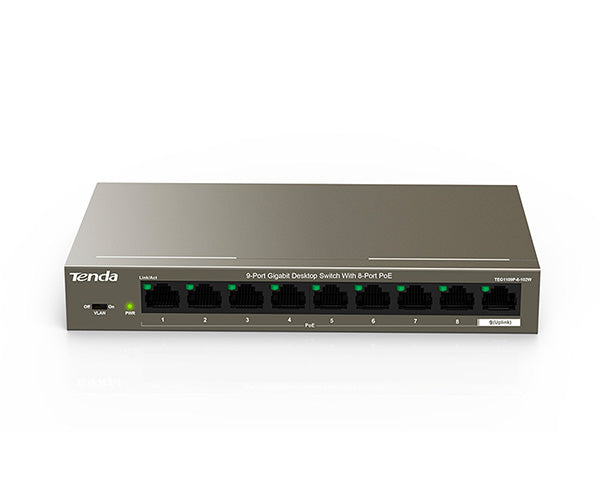

9-Port Gigabit Desktop Switch with 8-Port PoE

SKU: TEG1109P-8-102W
Vendor
Tenda
Regular price
$127.28
Sale price
$127.28
Regular price
$0
Sold out
Unit price
Quantity must be 1 or more

Description

9-Port Gigabit Desktop Switch with 8-Port PoE

TEG1109P-8-102W is the gigabit unmanaged lightning protection switch which is Tenda specifically developed for requirement of building Gigabit WLAN and HD camera monitor network. With high-performance access, 9-10/100/1000M Base-T Ethernet RJ45 ports; 6KV lightning-proof for all port; every single port support MDI/MDIX and wired speed; PoE ports supports IEEE802.3at/af standard while detecting and recognizing the IEEE802.3at/af standard power device automatically. Through conventional Cat 5e twisted-pair cable, power can be transmitted along with data for AP, IP Camera and IP Phone. With PoE dynamic power, easier configure, flexible extend network without being limited by the power line layout, plug and play, helping SMB, hotel, shopping mall, school to build high-security and reliability network of wireless cover and HD monitor.

Features

Features

  • Lead security transmission power supply to a new height - TEG1105P-4-63W 5-Port Gigabit Desktop Switch with 4-Port PoE

  • One-Key VLAN - If "VLAN mode" is enabled, Port 1-4 will be isolated respectively but can communicate with the port 5. Hardware DIP switch to isolate ports to prevent broadcast storm and defend against DHCP spoofing.

  • 6KV lighting protection PoE switch is the real monitoring private switch - In real project, APs or cameras are usually installed in outdoor or a higher position, which also increases the camera and PoE switches the probability of lightning shock. The result is the individual equipment damaged, or lead to the whole local area network (LAN) paralysis. Tenda TEF11 series switches have professional lightning protection design - up to 6KV port and power supply thunder prevents, with two levels of protection design respectively, effectively restrain the power of lightning from cable, which is equivalent to give the entire network monitoring system with a security fence, The test standard is much higher than the national CE request. In thunderstorms weather, it can also provide monitoring network stable and reliable services and protect the images transmission normally.

  • 58W PoE power supply - Ports 1-4 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 58W, whereas each port offers a maximum PoE power output of 30 W. The ports can be used to supply power to and exchange data with APs and IP cameras.

Specifications

Specifications

What's in the Box?

What's in the Box?

  • Qty 1 - 9-Port Gigabit Desktop Switch with 8-Port PoE
  • Qty 1 - Power Adapter
  • Qty 1 - Quick Installation Guide
