Description

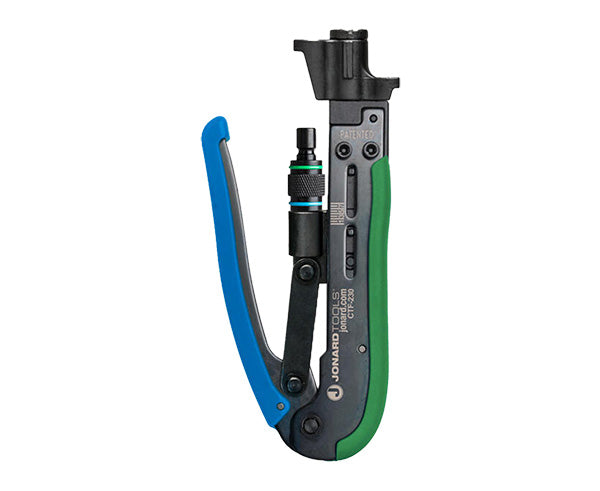

Dual Compression Tool - Short and Long Style F Connectors
The Jonard Tools Dual Short and Long Compression Tool is designed for use on both short and long style F connectors, such as the PPC EX6 and PPC EX6XL connectors as well as most RG11 connectors. The green side of the plunger is for short style PPC EX6 connectors and the blue side is for long style EX6XL connectors. The tool is ideal for installing CATV network cables.
Features
Features
- Dual Head design: Green for short Style F connectors, Blue for Long F style connectors. To change: Pull to remove, rotate and reinsert
- Rotatable head to choose from RG11 or RG6 connectors
- Made of durable high carbon steel with a black oxide finish
- Plastic grips provide a comfortable and ergonomic experience
- Fixed design so no adjustments are needed
Compatible Connectors:
- PPC: CMP6, CMP6Q, CMP59, CMP59Q, CMP11, EX6XL, EX59XL, EX59XLHE, EX6XLWS, EX6LP , EX7, EX7N716, EX11, EX11N716, EX320QR, EX320N716, EX59XLK, EX6XLK, EX6XLP, EX7N716WS, EX59XLK, EX6XLK, EX6XLP, EX7N716WS, EX11N716WS, EX59XLWS, EX11N716WSPLUS, EX11N716PLUS, EX7N716WSPLUS, EX7N716PLUS, EX6XLPLUS, EX6XLWSPLUS, EX59XLPLUS, EX59XLWSPLUS, EX6XLWS, EX6IEC
- Digicon: DS6, DS59, DS59Q, DS11, DS7
- Belden: SNS11A5TP275, SNS59Q5NS, SNS1P59QS, SNS11A5NS, SNS7ASNS, SNS1P6, SNS59TP275, SNS6TP275, SNS7BNS, SNS1P59, SNS1P59HEL, SNS7BQ, SNS7AS, SNS7B
- Cablecon: CX3-F596, CX3-IECF, CX3-IECM, FM-RG11-CX3, FM-RG7-CX3, F-CX3
- Corning Gilbert UltraEase: GF-UE-59, GF-UE-59Q, GF-UE-6, GF-UE-6Q, GF-UE-5.1, GF-URS-6-SR, GF-URS-59-SR, GAF-URS-11MH
- ATX Networks: 9-MPF-CQ
Plus many other brands and styles of short and long F connectors!
Specifications
Specifications
| Connector Type | F Short, F Long |
|---|---|
| Material | Carbon Steel |
| Length | 6(15.24cm) |
| Weight | 0.97 lb (439.018 g) |
| UPC # | 811490016996 |
What’s In The Box
What’s In The Box
- Dual Compression Tool - Short and Long Style F Connectors
