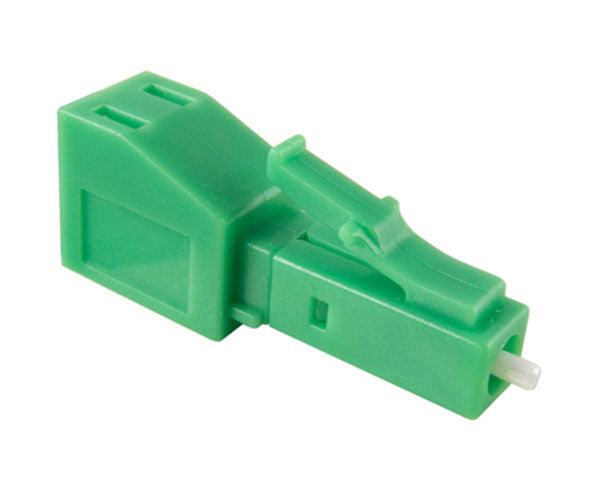

Fiber Attenuator, LC Single Mode Simplex with APC Polish
LC/APC single mode fiber attenuators are commonly used in fiber optic communications to the the power level of a fiber cable by controlling the amount of signal loss that is passed through the signal. LC/APC single mode fiber optic attenuators can also be used on a more permanent basis in order to match the signal with a transmitter and receiver's specific power levels.
Features
Features
- Metal ion doped fiber
- High-power light source durability
- Wavelength independence
- Attenuation levels ranging from 1dB to 25dB
- 1310nm, 1550nm and 1310/1550nm dual wave lengths
Specifications
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Maximum Return Loss | ≥60 dB |
| Attenuation Levels from 1dB to 9dB | ±10%dB |
| Attenuation Levels from 10dB to 30dB | ±1.0%dB |
Additional Information
Additional Information
Applications
- Erbium Doped Fiber Amplifiers (EDFA)
- Dense Wave Division Multiplexers (DWDM)
- Overpowered fiber optic systems
What's in the Box
What’s in the Box
- Qty 1 - Fiber Attenuator, Single Mode OS2, LC/APC Simplex
- Qty 1 - Protective dust cap for LC/APC connector
