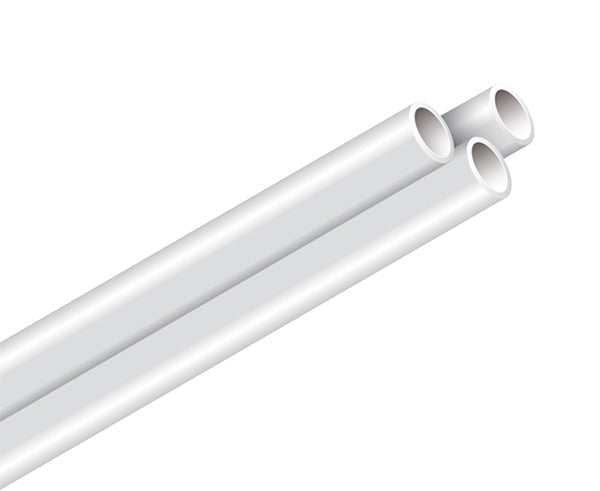

MicroDucts LSZH from 5mm OD - 27 mm OD

SKU: DL-MD-LSZH
Vendor
Dura-Line
Regular price
$0.00
Sale price
$0.00
Regular price
$0
Sold out
Unit price
Quantity must be 1 or more

Description

(We do not offer credits or returns for this item.)
To request a quote email us or give us a call.

Description

MicroDucts LSZH from 5mm OD - 27 mm OD

Dura-Line was the first to pioneer this technology and introduce it to the U.S. market. LSZH Conduit and MicroDucts, verified by the NRTL (Intertek) to ETL standards UL1685-4 and IEC 60754-1, exhibit excellent properties such as low-flame propagation, low-smoke generation, zero-halogen emissions, and excellent low-temperature mechanical properties. They are designed for use in applications where smoke, toxic fumes, and acidic gas pose a health risk and possible damage to electronic equipment. Examples include enclosed public areas and poorly ventilated areas such as tunnels, mass transit corridors, behind-the-wall, control rooms, and confined spaces.

For more information on the different types of Dura-Line products we carry, view our Dura-Line page here .

Installations

Applications

Features

Features

  • LSZH - Low Smoke Zero Halogen
  • MicroDucts available from 5mm to 27mm
  • Very low smoke generation for better visibility
  • No halogens, safer to use in confined spaces
  • ETL Verified to UL1685-4 and IEC 60754-1
  • 12.7 mm – 27 mm meet IEEE-1202 and NFPA-130 requirements
  • FuturePath configurations available (not ETL or UL listed at this time)
  • 150 PSI maximum installation pressure
  • Footage/Meter Markings

Specifications

Specifications

Available Sizes

MicroDuct size (OD/ID mm)

  • 5/3.5
  • 8.5/6
  • 12.7/10
  • 16/13
  • 18/14
  • 22/16
  • 27/20

Standard Colors

Chalky White

Options

  • Pre-Installed Fiber
  • Pre-Installed String

Description

MicroDucts LSZH from 5mm OD - 27 mm OD

Dura-Line was the first to pioneer this technology and introduce it to the U.S. market. LSZH Conduit and MicroDucts, verified by the NRTL (Intertek) to ETL standards UL1685-4 and IEC 60754-1, exhibit excellent properties such as low-flame propagation, low-smoke generation, zero-halogen emissions, and excellent low-temperature mechanical properties. They are designed for use in applications where smoke, toxic fumes, and acidic gas pose a health risk and possible damage to electronic equipment. Examples include enclosed public areas and poorly ventilated areas such as tunnels, mass transit corridors, behind-the-wall, control rooms, and confined spaces.

For more information on the different types of Dura-Line products we carry, view our Dura-Line page here .

Installations

Applications

Features

Features

  • LSZH - Low Smoke Zero Halogen
  • MicroDucts available from 5mm to 27mm
  • Very low smoke generation for better visibility
  • No halogens, safer to use in confined spaces
  • ETL Verified to UL1685-4 and IEC 60754-1
  • 12.7 mm – 27 mm meet IEEE-1202 and NFPA-130 requirements
  • FuturePath configurations available (not ETL or UL listed at this time)
  • 150 PSI maximum installation pressure
  • Footage/Meter Markings

Specifications

Specifications

Available Sizes

MicroDuct size (OD/ID mm)

  • 5/3.5
  • 8.5/6
  • 12.7/10
  • 16/13
  • 18/14
  • 22/16
  • 27/20

Standard Colors

Chalky White

Options

  • Pre-Installed Fiber
  • Pre-Installed String
