Description

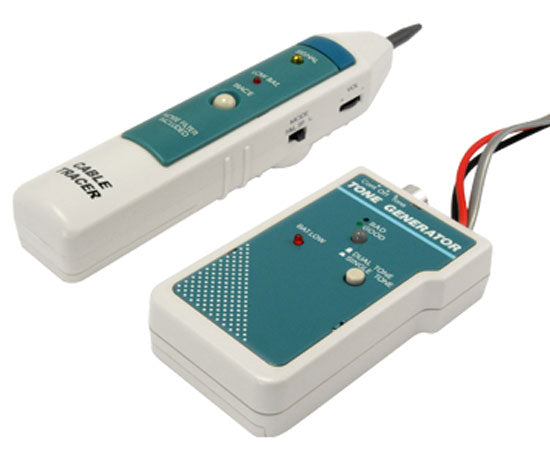

Tone and Probe Generator Kit
The Tone Generator is a highly practical network installation and trouble-shooting tool, which features a single or multi-tone signal, two test leads and a 4-conductor modular cable. The signal emitted by the Tone Generator can be easily traced by the Probe, even when cables are in a bundle or hidden in a mess of punch down blocks or wall plates. The Tone Generator & Probe can be used to verify cable continuity, identify wiring faults, determine line polarity and voltage in network and modular telephone line.
The Probe is equipped with a tone amplifier and a LED indicator that detects audible frequency tones for accurate tracing and identification of wires. It's plastic conductive tip presents shorting of expensive telecom and network equipment.
Features
- 2-position button for single tone or dual-tone signal
- Toggle switch to control 3 modes of operation
- 3-color LED indicator display for telephone line polarity, continuity and voltage testing
- Black and Red Aligator Clips and standard RJ-11 plug to test individual wire or RJ-11 jack
- Special inductive plastic tip, which prevents accidental shorts, when using near high voltage devices
- Traces and identifies wires or cable in a bundle or group without damaging cable insulation
- Adjustable volume level for various work environment
- Compatible with all existing tone generators in the market
- Power switch to prevent battery drain
Specifications
| Tone Generator Specifications | |
|---|---|
| Output power | 5V |
| Power supply and life | 9 Volt DC power battery |
| Auto power off | One 3 position toggle switch for operation modes control |
| Dimensions | 115 x 63 x 26mm |
| Weight | 190g |
| Weight | 190g |
| Probe Kit Specifications | |
|---|---|
| Power Supply and Life | 9 Volt DC power battery |
| Power Switch | Manual power on/off switch |
| Dimensions | 205 x 35 x 33.5mm |
| Weight | 100g |
What's In The Box
- Qty 1 - Tone and Probe Kit for Network Installation
