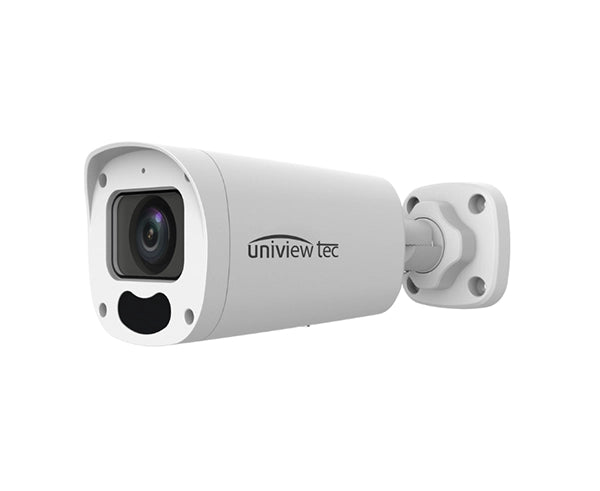

Uniview Tec 4MP True Day/Night WDR IR Bullet Camera
This professional 4MP bullet camera delivers exceptional surveillance performance with True Day/Night technology and motorized varifocal capabilities. Featuring a high-performance 1/2.7" CMOS sensor with F1.8 iris and 2.8-12mm varifocal lens with automatic focusing and motorized zoom, this camera provides flexible coverage from wide-angle monitoring to telephoto applications. The powerful 120dB True WDR and Smart IR technology ensure optimal image quality in challenging lighting conditions, while advanced AI features including human body detection for intrusion monitoring provide intelligent security analysis. With robust construction rated for extreme temperatures and IP67 weatherproofing, this camera delivers reliable performance in the most demanding outdoor surveillance installations requiring professional-grade monitoring capabilities.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 4MP resolution with True Day/Night technology for superior image quality
- 2.8-12mm motorized varifocal lens with F1.8 iris and automatic focusing
- 120dB True WDR for exceptional dynamic range in high-contrast scenes
- 50m (164ft) IR illumination range with Smart IR technology
- Advanced human body detection for intelligent intrusion monitoring
- H.265/H.264 dual stream compression with 4MP @ 25fps recording capability
- Built-in microphone for audio recording and detection
- Comprehensive DORI analysis: detection up to 270m with 12mm lens
- 3-axis adjustment: Pan 0°-360°, Tilt 0°-90°, Rotate 0°-360°
- IP67 weatherproof rating for harsh outdoor environments
- Wide operating temperature range: -30°C to 60°C
- PoE (IEEE 802.3af) and 12V DC power with 7.5W consumption
- ONVIF Profile S, G, T compliant with API support
- Edge storage support with microSD up to 512GB and ANR/NAS compatibility
- Advanced security with three user levels and comprehensive authentication
- Multiple image enhancements: HLC, BLC, Digital Defog, 2D/3D DNR
- Professional dimensions: 198 × 74 × 74mm (7.8" × 2.9" × 2.9")
Specifications
Specifications
| Camera | |
|---|---|
| Sensor | 1/2.7" CMOS |
| Minimum Illumination | Color: 0.005Lux (F1.8, AGC ON); 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| S/N | >52dB |
| WDR | 120dB |
| Lens | |
| Focal Length | 2.8 ~ 12 mm |
| Iris | F1.8 |
| Field of View (H) | 102.79°~ 30.86° |
| Field of View (V) | 54.50°~ 17.49° |
| Field of View (D) | 106.94°~35.49° |
| DORI Analysis | |
| DORI Distance(Lens) | 2.8mm, 12mm |
| DORI Distance(Detect) | 63.0m(206.7ft), 270.0m(885.8ft) |
| DORI Distance(Observe) | 25.2m(82.7ft), 108.0m(354.3ft) |
| DORI Distance(Recognize) | 12.6m(41.3ft), 54.0m(177.2ft) |
| DORI Distance(Identify) | 6.3m(20.7ft), 27.0m(88.6ft) |
| Illuminator | |
| Supplemental Light | IR |
| Illumination Distance(IR) | 50 m (164.0 ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | H.265; H.264 |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps |
| Video Bit Rate | 128 Kbps ~ 6144 Kbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Dual Streams |
| Image Enhancement | |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Events & Detection | |
| Basic Detection | Intrusion (based on Human Body Detection); Motion Detection; Tampering Alarm; Audio Detection |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication |
| Audio | |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 64 Kbps |
| Sampling Rate | 8 KHz |
| Built-in Mic | Support |
| Storage & Network | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR; NAS (NFS) |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Protocols | IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; SSL/TLS; QoS; SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T); API |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Client | Guard Live, Guard Viewer, Guard Station |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Protection | IP67 (IEC 60529) |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 7.5W |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Dimensions | 198 × 74 × 74mm (7.8" × 2.9" × 2.9") |
| Weight | 0.51kg (1.12lb) |
| Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Reset Button | Support |
Additional Information
Additional Information
Compatible Accessories
This bullet camera is compatible with the following accessories
Additional Product Information
This professional 4MP bullet camera features True Day/Night technology with motorized varifocal lens capabilities, providing flexible surveillance coverage from wide-angle monitoring to telephoto applications. The comprehensive DORI analysis extends detection capabilities up to 270 meters with the 12mm lens setting, while advanced human body detection ensures intelligent security monitoring with reduced false alarms. The robust construction and IP67 rating make this camera ideal for demanding outdoor surveillance installations.
What's in the Box
What's in the Box
- Qty 1 – Uniview Tec 4MP True Day/Night WDR IR Bullet Camera (IPB4U212MX)
- Qty 1 – Mounting bracket and hardware
- Qty 1 – Waterproof connector
- Qty 1 – Reset tool
- Qty 1 – Quick Start Guide
- Qty 1 – Warranty card or document
