SPARC Fusion Splicer, Core Alignment
SPARC Fusion Splicer, Core Alignment
BY Jonard Tools
SKU: SKU: NPNB-SPCO-1
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full details
Description

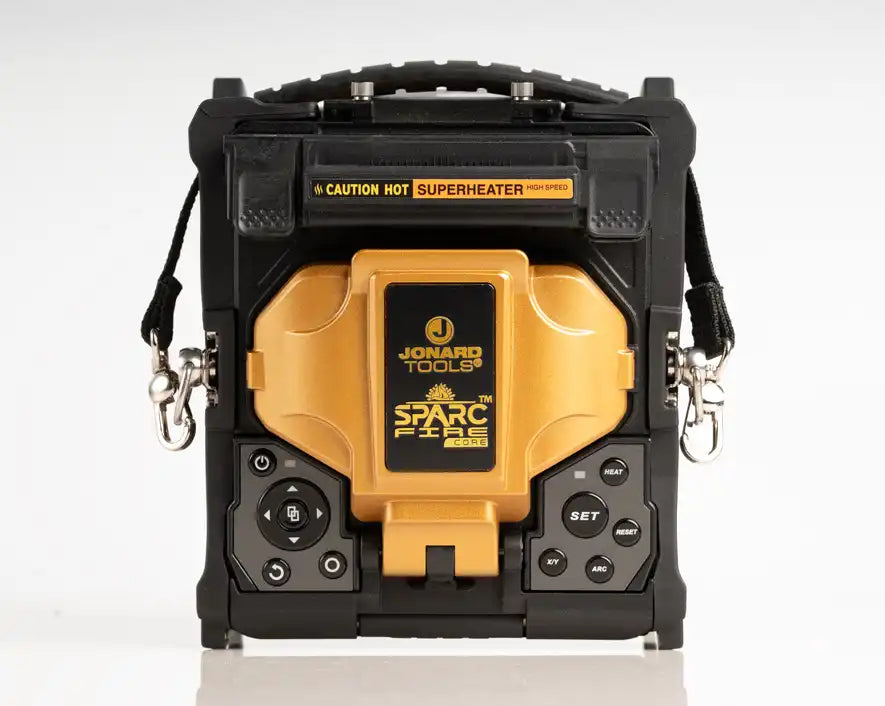

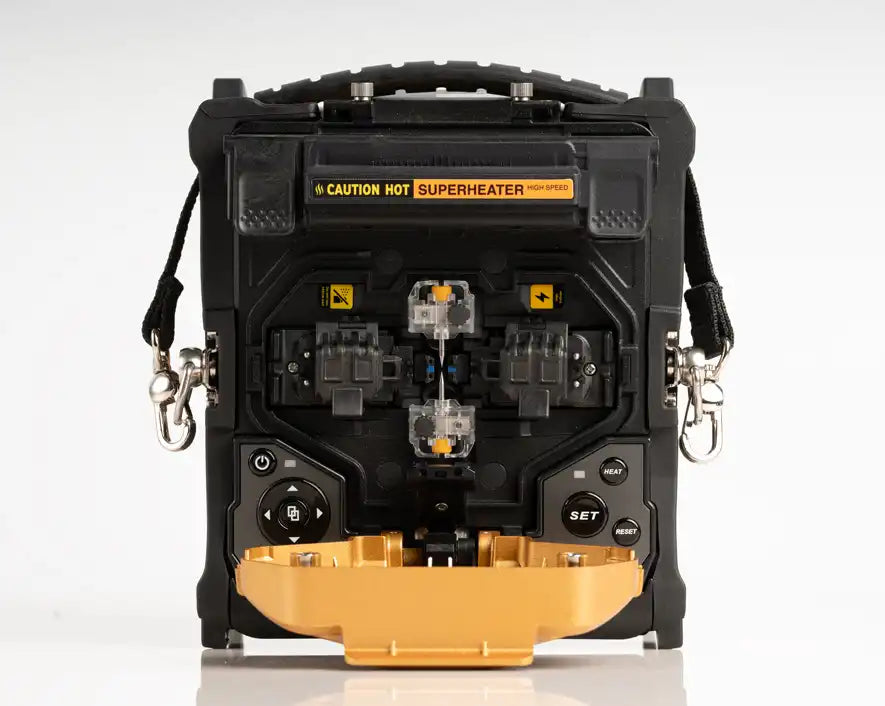

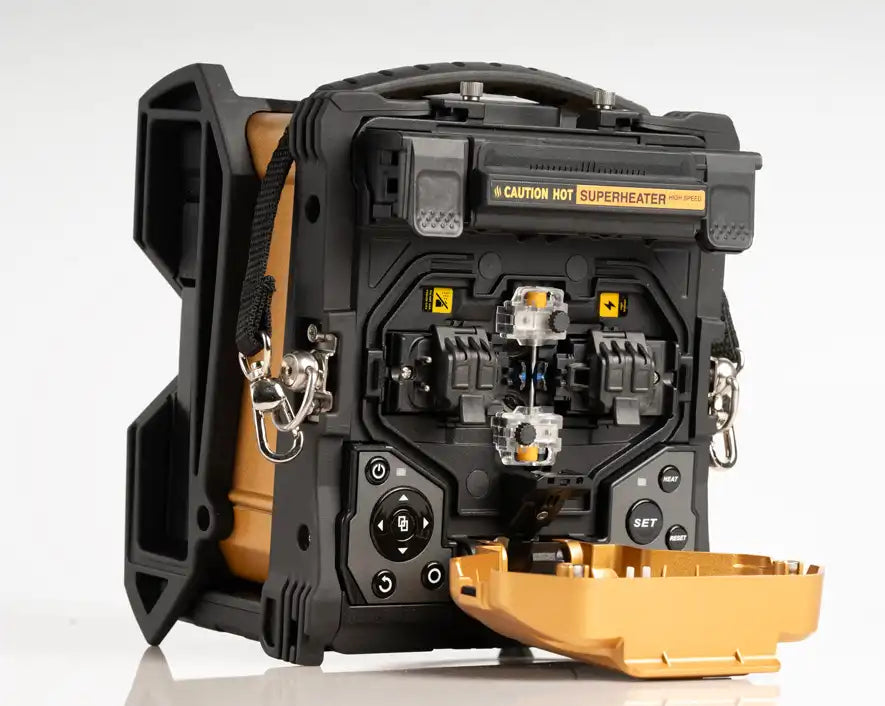

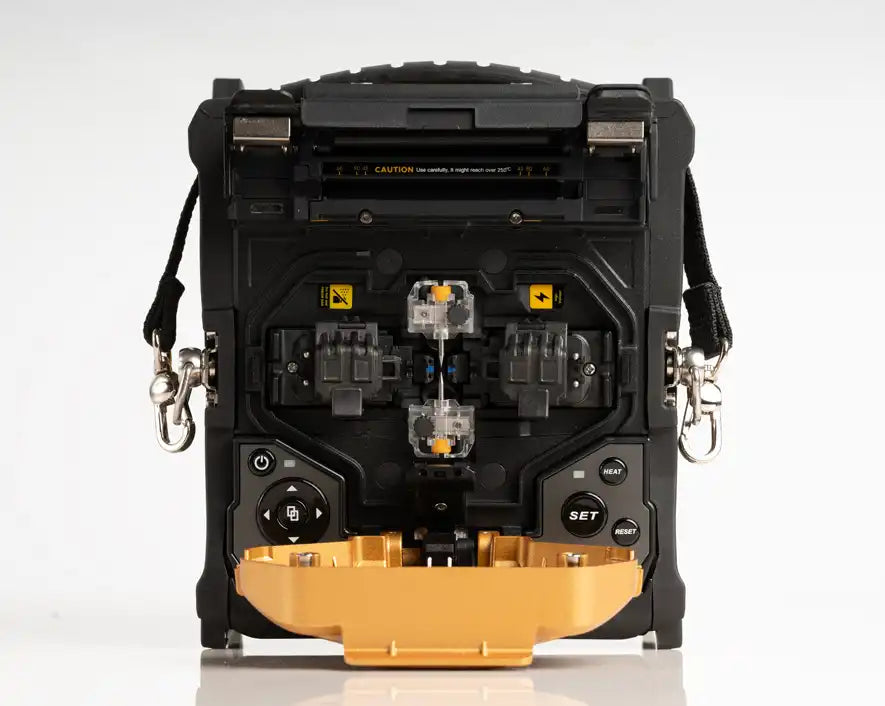

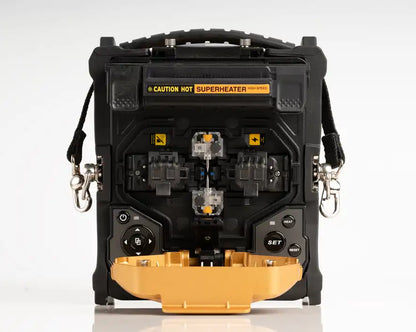

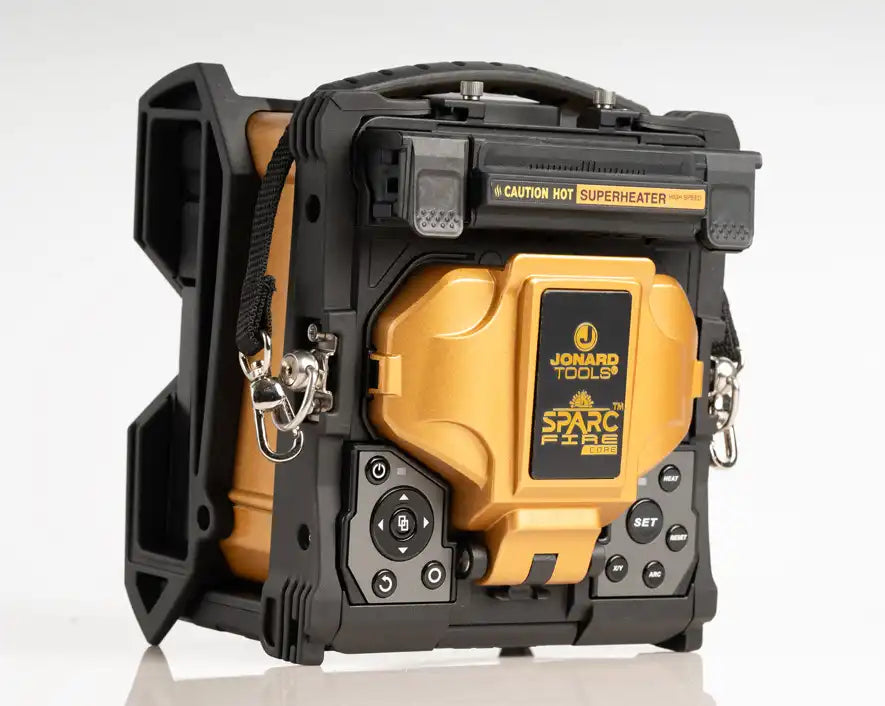

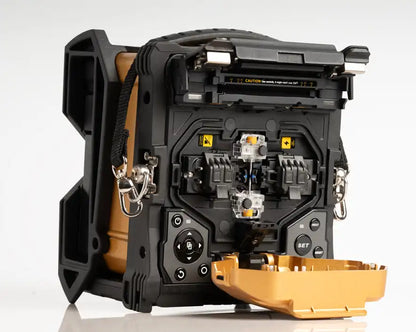

The SPARC Core Alignment Fusion Splicer is an advanced Core Alignment Fusion Splicer. It ensures impeccable fiber splicing precision, reliability, and efficiency. Engineered for fiber optic professionals, it combines rapid splicing times with cutting-edge features, offering a seamless and dependable splicing experience even in challenging environments.
SPARC Fusion Splicer to Fit Your Application
The SPARC Fusion Splicer with Core Alignment is a high-performance tool designed for precise fiber optic splicing across a wide range of applications. It is commonly used in telecommunications for the installation and maintenance of broadband and FTTH networks, ensuring efficient and reliable data transmission. In data centers and enterprise environments, the Core Alignment Splicer plays a crucial role in maintaining high-speed connectivity. Its precision makes it ideal for industrial sectors requiring low-loss, high-quality fiber connections. Broadcasting systems also benefit from its accurate splicing, enabling seamless media transmission. Furthermore, its rugged design and dependability make it an excellent choice for military and aerospace operations, where the highest performance and reliability are essential even under challenging conditions.
Features
- Splices fiber optic cables in as little as 4 seconds
- Pressure Heater Technology reduces heating time to only 9 seconds
- Versatile fiber holder to easily switch between standard and loose-tube fibers
- Improved lighting for higher visibility in dark settings
- Intuitive full touch screen for enhanced user experience
- 7000 mAh battery provides up to 400+ cycles (splicing and heating) on one charge
- Rugged design with water resistance (IPx2), shock resistance (drop tested from 30"), and dust resistance (IP5X)
- On-board memory stores up to 20,000 splice data or 10,000 images
Specifications
| SPARC™ FIRE Fusion Splicer: CORE | |
| Alignment Method | Core Alignment |
|---|---|
| Number of Fibers | Single |
| Applicable Fibers | SM (ITU‑T G.652 & G.657) / MM (ITU‑T G.651) / DS (ITU‑T G.653) / NZDS (ITU‑T G.655) |
| Coating Diameter | 100 µm – 3 mm |
| Cladding Diameter | 80 – 150 µm |
| Cleave Length | 5 – 16 mm |
| Typical Splice Loss | SM: 0.01 dB / MM: 0.01 dB / DS: 0.03 dB / NZDS: 0.03 dB / G.657: 0.01 dB |
| Return Loss | >>60 dB |
| Splice Time | Quick: 4 s / SM: 5 s / Auto: 7 s (avg.) |
| Splice Programs | Max 128 modes |
| Automatic Calibration | Arc Calibration by air pressure & temperature |
| Electrode Life Span | 6000 Arc Discharges |
| Heating Programs | Max 32 modes |
| Heating Time | Quick: 9 s / Avg: 13 s |
| Protection Sleeve | 20 – 60 mm |
| Data Output | USB‑C |
| Splice Memory | 20,000 data / 10,000 images |
| Battery Capacity | 7000 mAh / 400+ cycles |
| Power Supply | AC 100–240 V / DC 9–19 V |
| Monitor | 5.0” Color LCD Touch |
| Magnification | x360, x520 |
| Pull Test | 1.96 – 2.25 N |
| Product Main Color | Black/Gold |
| Dimensions | 6.5” × 6.2” × 6” (16.51 × 15.75 × 15.24 cm) |
| Weight | 5.2 lbs (2358.68 g) |
| UPC # | 810132437922 |
Additional Information
Introducing SPARC Fire FiberFusion Splicers | Jonard Tools |
How to ReplaceSPARC Fiber Holders |
| SPARC FIRE FUSION SPLICERS | |||
| Specification | CLAD (SPCL-1) | CORE (SPCO-1) | RIBBON (SPRI-1) |
|---|---|---|---|
| Alignment Method | Active V-Groove Clad Alignment | Core Alignment | Core Alignment |
| Number of Fibers | Single | Single | Up to 12 |
| Typical Splice Loss | SM: 0.03 dB / MM: 0.01 dB / DS: 0.05 dB / NZDS: 0.05 dB / G.657: 0.03 dB |
SM: 0.01 dB / MM: 0.01 dB / DS: 0.03 dB / NZDS: 0.03 dB / G.657: 0.0 dB |
SM: 0.01 dB / MM: 0.01 dB / OS: 0.03 dB / NZDS: 0.03 dB / G.657: 0.01 dB |
| Splice Time | Quick mode: Avg. 4 s / SM mode: Avg. 5 s | Quick mode: Avg. 4 s / SM mode: Avg. 5 s / Auto mode: Avg. 7 s | Quick mode: Avg. 4 s / SM mode: Avg. 5 s / Auto mode: Avg. 7 s |
| Heating Time | Quick: 9 s / Average: 13 s | Quick: 9 s / Average: 13 s | Quick: 9 s / Average: 13 s |
| Protection Sleeve | 20 mm – 60 mm | 20 mm – 60 mm | 20 mm – 60 mm |
| Battery | 7000 mAh / 400+ cycles | 7000 mAh / 400+ cycles | 9000 mAh / 300 cycles |
| Magnification | x360, x520 | x360, x520 | x360, x520 |
| Motors | 4 | 6 | 6 |
What's in the Box
| FC-800 | SPARC Blade Fiber Cleaver |
|---|---|
| JIC-375 | Fiber Optic Stripper, Three Hole |
| JIC-186 | Wire & Kevlar® Cutting Shears |
| PSI-15 | Quick Sleever® |
| FDC-66 | Fiber Scraps Disposal Can |
| CWP-125 | Pointed Cotton Swabs, Pack of 125 |
| FW-5 | Fiber Wipes, Wet (Pack of 5) |
| FSP-CO | SPARC FIRE CORE Fusion Splicer |
| H-2000 | SPARC Carrying Case |
| FSP-SOC | SPARC SOC Holder |
| FSP-SOCSC | SPARC SOC Heater Holder |
| FSP-ADP-65JH | SPARC AC Adapter |
| FSP-SCT | Screw-on Cooling Tray |
| FSP-E50 | SPARC Electrodes (1 Spare Set) |
| FSP-B7000 | SPARC Battery Pack |
| FSP-ADP-PC | SPARC Power Cable |
| FSP-DC | Data Transfer USB Cable |
| FSP-STP | SPARC Shoulder Strap |
| FSP-FT | Fiber Tray |
| FSP-FTP | Fiber Tray Shoulder Strap |
| FSP-SC | Splicer Set Screw |
| FC-SC | Cleaver Set Screw |
| FSP-SBB | Soft Bristle Cleaning Brush |
| FSP-FBB | Firm Bristle Cleaning Brush |
| FSP-SFH | Splicing Fiber Holder * Comes Installed |
| FSP-SHH | Heater Fiber Holder * Comes Installed |
