SPARC Fusion Splicer, Clad Alignment
SPARC Fusion Splicer, Clad Alignment
BY Jonard Tools
SKU: SKU: NPNB-SPCL-1
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full details
Description

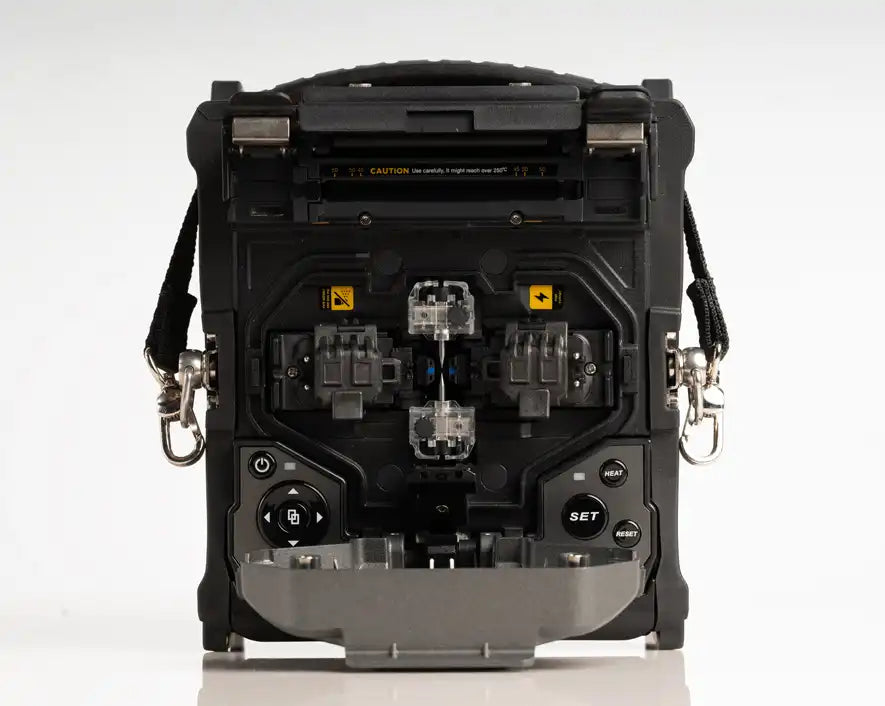

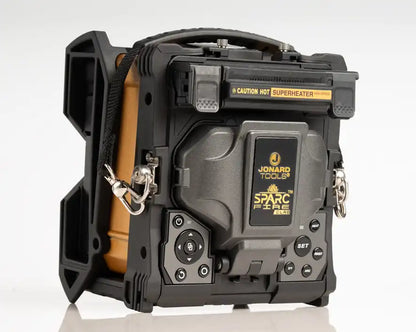

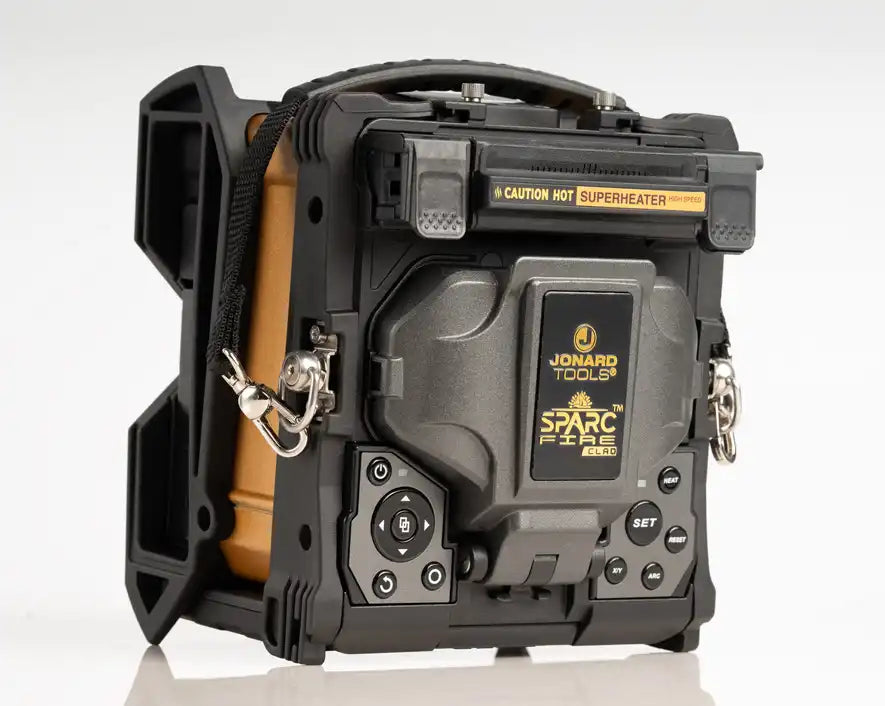

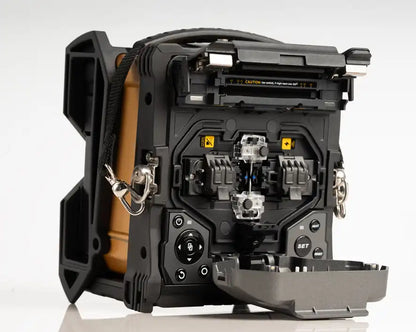

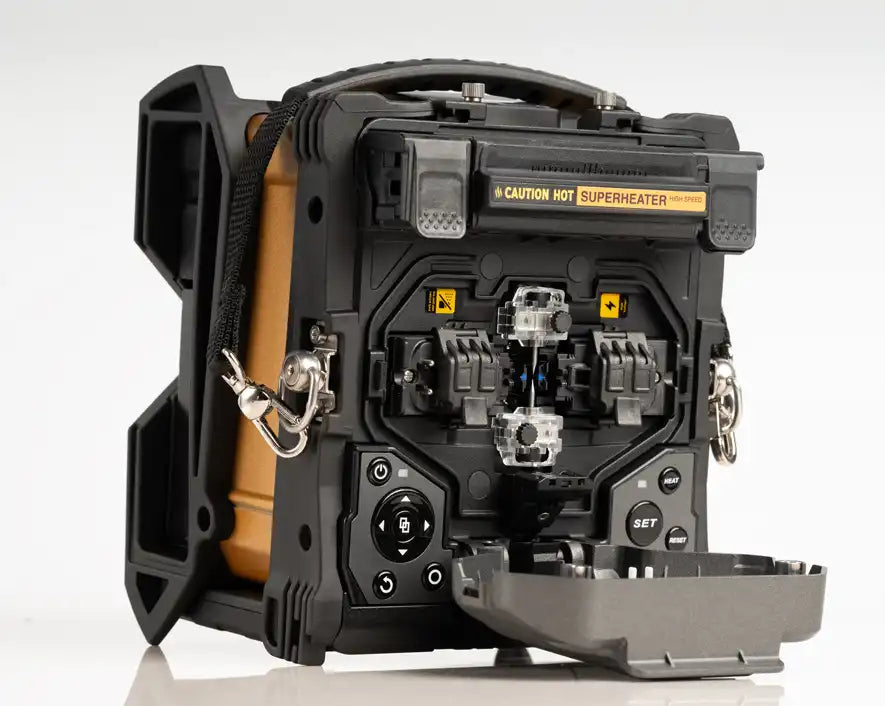

The SPARC Clad Alignment Fusion Splicer is an advanced Active V-Groove Cladding Alignment Fusion Splicer. It ensures impeccable fiber splicing precision, reliability, and efficiency. Engineered for fiber optic professionals, it combines rapid splicing times with cutting-edge features, offering a seamless and dependable splicing experience even in challenging environments.
SPARC Fusion Splicer to Fit Your Application
The SPARC Fusion Splicer with Clad Alignment is a versatile tool essential for precision splicing in various fiber optic applications. It is widely used in telecommunications for deploying and maintaining broadband and FTTH networks, as well as in data centers and enterprise environments to ensure high-speed, secure data transmission. Industrial sectors rely on it for robust fiber connections that resist electromagnetic interference, while broadcasting systems benefit from its support for low-latency media transmission. Additionally, its reliability makes it suitable for military and aerospace applications where high-performance connectivity is critical, even in harsh environments.
Features
- Splices fiber optic cables in as little as 4 seconds
- Pressure Heater Technology reduces heating time to only 9 seconds
- Versatile fiber holder to easily switch between standard and loose-tube fibers
- Improved lighting for higher visibility in dark settings
- Intuitive full touch screen for enhanced user experience
- 7000 mAh battery provides up to 400+ cycles (splicing and heating) on one charge
- Rugged design with water resistance (IPx2), shock resistance (drop tested from 30"), and dust resistance (IP5X)
- On-board memory stores up to 20,000 splice data or 10,000 images
Specifications
| SPARC™ FIRE Fusion Splicer: CLAD | |
| Alignment Method | Active V-Groove Clad Alignment |
|---|---|
| Number of Fibers | Single |
| Applicable Fibers | SM (ITU‑T G.652 & G.657) / MM (ITU‑T G.651) / DS (ITU‑T G.653) / NZDS (ITU‑T G.655) |
| Coating Diameter | 100 µm – 3 mm |
| Cladding Diameter | 80 – 150 µm |
| Cleave Length | 5 – 16 mm |
| Typical Splice Loss | SM: 0.03 dB / MM: 0.01 dB / DS: 0.05 dB / NZDS: 0.05 dB / G.657: 0.03 dB |
| Return Loss | >>60 dB |
| Splice Time | Quick mode: Avg. 4 s / SM mode: Avg. 5 s |
| Splice Programs | Max 128 modes |
| Automatic Calibration | Automatic Arc Calibration by air pressure & temperature |
| Electrode Life Span | 6000 Arc Discharges |
| Heating Programs | Max 32 modes |
| Heating Time | Quick: 9 s / Average: 13 s |
| Protection Sleeve Length | 20 – 60 mm |
| Data Output | USB-C |
| Splice Memory | 20,000 Splice Data / 10,000 Splice Images |
| Battery Capacity | 7000 mAh / Operation Cycle: 400+ cycles (Splicing + Heating) |
| Power Supply | AC Input 100 – 240 V, DC Input 9 – 19 V |
| Monitor | 5.0” Color LCD display, Full Touch Screen |
| Magnification | x360, x520 |
| Pull Test | 1.96 – 2.25 N |
| Product Main Color | Black/Gold |
| Dimensions | 6.5” × 6.2” × 6” (16.51 cm × 15.75 cm × 15.24 cm) |
| Weight | 5.2 lbs (2358.68 g) |
| UPC # | 810132437861 |
Additional Information
Introducing SPARC Fire FiberFusion Splicers | Jonard Tools |
How to ReplaceSPARC Fiber Holders |
| SPARC FIRE FUSION SPLICERS | |||
| Specification | CLAD (SPCL-1) | CORE (SPCO-1) | RIBBON (SPRI-1) |
|---|---|---|---|
| Alignment Method | Active V-Groove Clad Alignment | Core Alignment | Core Alignment |
| Number of Fibers | Single | Single | Up to 12 |
| Typical Splice Loss | SM: 0.03 dB / MM: 0.01 dB / DS: 0.05 dB / NZDS: 0.05 dB / G.657: 0.03 dB |
SM: 0.01 dB / MM: 0.01 dB / DS: 0.03 dB / NZDS: 0.03 dB / G.657: 0.0 dB |
SM: 0.01 dB / MM: 0.01 dB / OS: 0.03 dB / NZDS: 0.03 dB / G.657: 0.01 dB |
| Splice Time | Quick mode: Avg. 4 s / SM mode: Avg. 5 s | Quick mode: Avg. 4 s / SM mode: Avg. 5 s / Auto mode: Avg. 7 s | Quick mode: Avg. 4 s / SM mode: Avg. 5 s / Auto mode: Avg. 7 s |
| Heating Time | Quick: 9 s / Average: 13 s | Quick: 9 s / Average: 13 s | Quick: 9 s / Average: 13 s |
| Protection Sleeve | 20 mm – 60 mm | 20 mm – 60 mm | 20 mm – 60 mm |
| Battery | 7000 mAh / 400+ cycles | 7000 mAh / 400+ cycles | 9000 mAh / 300 cycles |
| Magnification | x360, x520 | x360, x520 | x360, x520 |
| Motors | 4 | 6 | 6 |
What's in the Box
| FC-800 | SPARC Blade Fiber Cleaver |
| JIC-375 | Fiber Optic Stripper, Three Hole |
| JIC-186 | Wire & Kevlar® Cutting Shears |
| PSI-15 | Quick Sleever® |
| FDC-66 | Fiber Scraps Disposal Can |
| CWP-125 | Pointed Cotton Swabs, Pack of 125 |
| FW-5 | Fiber Wipes, Wet (Pack of 5) |
| FSP-CL | SPARC Fusion Splicer, Clad Alignment |
| FSP-SOC | SPARC SOC Holder |
| FSP-SOCSC | SPARC SOC Heater Holder |
| FSP-ADP-65JH | SPARC AC Adapter |
| FSP-CT | SPARC Cooling Tray |
| FSP-B7000 | SPARC Battery Pack |
| FSP-ADP-PC | SPARC Power Cable |
| FSP-E70 | SPARC Electrodes (1 Spare Set) |
| FSP-DC | Data Transfer USB Cable |
| H-2000 | SPARC Carrying Case |
| FSP-STP | SPARC Shoulder Strap |
| FSP-FT | Fiber Tray |
| FSP-FTP | Fiber Tray Shoulder Strap |
| FSP-SC | Splicer Set Screw |
| FC-SC | Cleaver Set Screw |
| FSP-SCT | Screw-on Cooling Tray |
| FSP-SBB | Soft Bristle Cleaning Brush |
| FSP-FBB | Firm Bristle Cleaning Brush |
| FSP-SFH | Splicing Fiber Holder* Comes Installed |
| FSP-SHH | Heater Fiber Holder* Comes Installed |
