Description

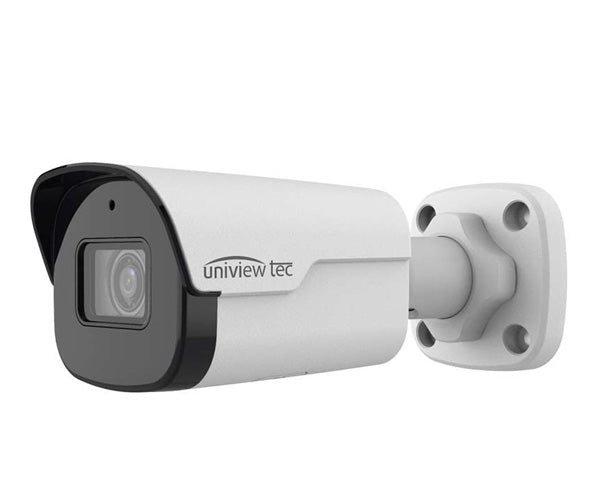

4MP 2.88mm IP Bullet Camera with LightHunter Technology
This 4MP Security Camera bullet camera from Uniview Tec comes with a 2.8mm fixed wide-angle lens. This lens is capable of capturing images with video quality of up to 2688 x 1520 resolution. This camera comes with smart IR LED lights for 0 lux nighttime operations up to 131 feet and TRUE day/night WDR functionality for all lighting conditions. The two-way audio and corridor view combined with the IP67 weather-resistant housing makes this camera a popular choice for both indoor and outdoor camera applications. With PoE & 12VDC power options and a built-in micro-SD card slot for storage up to 256GB, this product is an ideal choice for any security camera system.
Use our convenient Camera Accessory Guide to determine what items you will need for installation.
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- LightHunter Technology for ultra-high quality color video images in low light applications with up 4MP, 2688 x 1520 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 131 Feet
- 2.8 fixed, wide-angle lens and One-way Audio with Built-in Microphone
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- Backlight Compensation, Corridor Mode, Defog and 3D DNR (Digital Noise Reduction)
- Triple Video Streams & ONVIF Profile S Compliant
- Intelligent perimeter protection such as cross line and intrusion, with smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
- PoE & 12VDC Power Options, & Built-in Micro-SD Card Slot enables local storage up to 256GB
- IP67 Weather Resistant Housing, 3-Way Axis and Optional Mounts Available
- Supported by Uniview Tec Guard Station Software and Guard Viewer Mobile Apps for iPhone and Android Devices
Specifications
| Camera |
|
|---|---|
| Sensor |
1/3", progressive scan , 4 megapixel, CMOS |
| Lens | 2.8 mm@ F1.6 |
| Angle of View (H x V) | 101.1° x 55.3° |
| Shutter | Auto/Manual, 1/6 s ~ 1/100000 s |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range / Wavelength | Up to 40m (131ft) IR range / 850nm |
| WDR | 120 dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main Profile, High Profile |
| Frame Rate/ Stream | Main: 4MP (2688 x 1520) @ 30fps Sub: 720P (1280 x 720) @ 30fps Third Stream: D1 (720 x 576) @ 30fps |
| HLC, BLC, 9:16 Corridor, Defog, Flip | Supported |
| OSD, Privacy Mask, Motion Detection & RO | Up to 8 areas |
| Network | |
|---|---|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, G, T), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Intelligent Perimeter Protection | Line Crossing, Intrusion and Leave Area Detection with Smart Intrusion Prevention Technology for False Alarm Prevention |
| Local & Network Storage | Micro-SD, up to 256GB; Automatic Network Replenishment (ANR) |
| General | |
|---|---|
| Power | 12VDC, PoE (IEEE802.3 af); Power consumption: Max 4W |
| Dimensions (L x W x H) & Weight | 155.9 × 63.1 × 62.7mm (6.1 × 2.5 × 2.5”); 0.42kg (0.93lb) |
| Audio I/O & Compression | 1 / 0, w/ built-in Mic; G.711 |
| Operating Temperature & Humidity | -30°C ~ 60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Certifications | IP67, CE, FCC |
Mounting Accessories
This camera is compatible with the following mounts:
